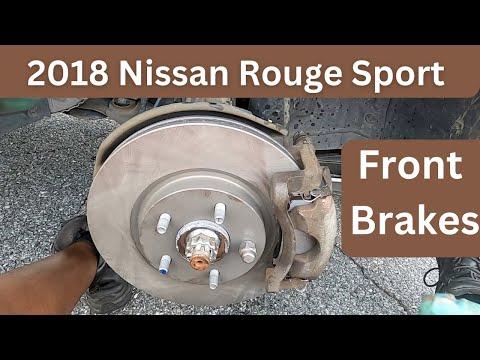

🔧 Rogue - Front Brake Pads & Rotors Replacement

You’ll remove the front wheels, take off the brake calipers and brackets, swap the rotors and pads, then reassemble and torque everything correctly. This restores braking power and prevents vibration and noise.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the Rogue with jack stands, never rely on the floor jack alone.
• 🛑 Wear safety glasses and mechanic gloves; brake dust and rust can fall into your eyes and cut your hands.
• 🛑 Keep the ignition OFF and the transmission in Park; set the parking brake before lifting, then release it only when working on rear brakes (you are working on the front, so it can stay set).
• 🛑 Do not let the brake caliper hang by the rubber brake hose; support it with a bungee cord or wire.
• 🛑 Brake cleaner is flammable and harsh; use it in a well-ventilated area and keep away from open flames.
• 🛑 You do not need to disconnect the battery for front brake work.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum, Qty: 2)
• 🧰 Wheel chocks
• 🧰 21mm socket
• 🧰 1/2" drive breaker bar
• 🧰 1/2" drive torque wrench (up to 150 ft-lbs)
• 🧰 14mm socket
• 🧰 17mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive torque wrench (up to 60 ft-lbs)
• 🧰 Flathead screwdriver (medium)
• 🧰 Needle-nose pliers
• 🧰 C-clamp (6" or larger)
• 🧰 Brake caliper piston compression tool (specialty)
• 🧰 Wire brush (steel)
• 🧰 Bungee cord or mechanics wire
• 🧰 Shop rags
• 🧰 Plastic or rubber mallet
• 🧰 Small wire pick or dental pick
• 🧰 Disposable drip tray
• 🧰 Safety glasses
• 🧰 Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Front brake pad set (left and right) - Qty: 1 set
• 🧱 Front brake rotors - Qty: 2 (replace in pairs)
• 🧱 Front brake pad hardware kit (shims/clips) - Qty: 1 kit
• 🧱 High-temperature brake grease (silicone or ceramic) - Qty: 1 tube
• 🧱 Anti-seize compound - Qty: small tube
• 🧱 Brake cleaner spray - Qty: 2 cans
• 🧱 DOT 3 or DOT 4 brake fluid (as specified on cap) - Qty: 1 small bottle
• 🧱 Replacement caliper slide pin boots (optional but recommended) - Qty: 1 set

---

📋 Before You Begin

• 🧭 Park the Rogue on level ground, shift to Park, set the parking brake, and turn off the engine.
• 🧭 Place wheel chocks behind the rear wheels to prevent any movement.
• 🧭 Loosen (do not remove) the front wheel lug nuts with a 21mm socket and breaker bar while the vehicle is still on the ground.
• 🧭 Identify the front jacking point (center front crossmember) and the front side support points (pinch welds) as shown in your owner’s manual.
• 🧭 Open the hood and locate the brake fluid reservoir; note the current fluid level so you don’t overflow it when pushing pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Front of the Rogue

• Use the floor jack under the front center jacking point (front crossmember) to lift the front of the Rogue until both front wheels are off the ground.
• Place jack stands under the left and right front pinch welds at the factory support points.
• Lower the Rogue gently onto the jack stands using the floor jack, then slightly shake the vehicle by hand to confirm it is stable.
• Remove the jack but keep it nearby as a backup support.

Step 2: Remove Front Wheels

• Use the 21mm socket and ratchet or breaker bar to fully remove the front wheel lug nuts.
• Remove both front wheels and set them aside.
• Keep lug nuts together so none get lost.

Step 3: Inspect and Prepare the Brake Area

• Turn the steering wheel a bit (key on, engine off) to point the caliper outward for easier access, then turn key off again.
• Place a drip tray under the brake area to catch dust and cleaner.
• Spray the caliper and surrounding area lightly with brake cleaner to remove loose dust.

Step 4: Remove Caliper Slide Pin Bolts

• Locate the two caliper slide pin bolts on the back of the caliper (top and bottom).
• Use a 14mm socket and 3/8" ratchet to loosen and remove both slide pin bolts.
• Pull the caliper off the bracket; if it’s tight, use a flathead screwdriver to gently pry between pad and rotor.
• Hang the caliper from the strut spring with a bungee cord so it does not hang on the brake hose.

Step 5: Remove Old Brake Pads and Hardware

• Slide the inner and outer pads out of the caliper bracket by hand.
• Use a small wire pick or flathead screwdriver to remove the stainless pad clips (hardware) from the caliper bracket.
• Note how any pad wear indicator tabs or springs are oriented for correct installation of the new pads.

Step 6: Remove Caliper Bracket

• Locate the two large caliper bracket bolts on the back side of the steering knuckle.
• Use a 17mm socket and 1/2" breaker bar to remove the upper and lower bracket bolts; they may be tight.
• Remove the caliper bracket and set it on a clean surface.
• Factory torque on reassembly: 98 Nm (72 ft-lbs)

Step 7: Remove the Rotor

• If the rotor is stuck to the hub from rust, tap around the rotor hat area (center section) with a plastic or rubber mallet to loosen it.
• Pull the rotor straight off the hub and remove it.
• If there are any retaining clips or thin washers on the wheel studs, remove them with needle-nose pliers and discard.

Step 8: Clean the Hub and Prepare New Rotor

• Use a wire brush to clean the hub face where the rotor sits; remove rust and debris so the new rotor sits flat.
• Wipe the hub surface with a rag and brake cleaner.
• Spray the new rotors (both sides) with brake cleaner to remove the protective oil coating and wipe dry with clean rags.
• Apply a very thin film of anti-seize compound on the hub face where the rotor contacts (avoid wheel studs and rotor braking surface).

Step 9: Install New Rotor

• Place the new rotor onto the hub, aligning the holes with the wheel studs.
• To keep the rotor from wobbling, thread on one wheel lug nut by hand using the 21mm socket and gently snug it (no torque needed yet).

Step 10: Service Caliper Bracket and Slide Pins

• On the caliper bracket, pull each slide pin out by hand.
• Wipe old grease off the pins with a rag and brake cleaner.
• Inspect the rubber boots; replace them if torn using your needle-nose pliers to remove/install.
• Apply a thin, even coat of high-temperature brake grease to each pin, then slide them back into the bracket until they move smoothly.
• Use a wire brush to clean the pad contact areas on the bracket (where the stainless clips sit).

Step 11: Install New Pad Hardware and Pads in Bracket

• Clip the new stainless pad clips from your hardware kit onto the caliper bracket by hand; ensure they are fully seated.
• Apply a very small amount of brake grease to the pad contact areas on the clips where the pad ears will slide (do not get grease on pad friction material or rotor).
• Install the new inner and outer pads into the bracket by hand, matching any wear indicator tabs to the same side as the old pads.
• Pads should slide easily but not be loose.

Step 12: Reinstall Caliper Bracket

• Position the caliper bracket with new pads over the rotor and align it with the mounting holes in the steering knuckle.
• Install the two bracket bolts by hand to avoid cross-threading.
• Use the 17mm socket and 1/2" torque wrench to tighten each bracket bolt to 98 Nm (72 ft-lbs).

Step 13: Compress Caliper Piston

• Check the brake fluid level in the reservoir; if it is very full, remove a little with a clean rag or small syringe into a container so it does not overflow when you push the piston back.
• Place an old pad against the caliper piston face.
• Use a C-clamp or caliper piston compression tool to slowly push the piston fully back into the caliper housing.
• Push slowly to avoid damaging seals.

Step 14: Reinstall Caliper Over New Pads

• Remove the bungee cord and position the caliper over the new pads and rotor.
• Align the caliper with the slide pin holes in the bracket.
• Install the upper and lower slide pin bolts by hand.
• Use a 14mm socket and 3/8" torque wrench to tighten each slide pin bolt to 32 Nm (24 ft-lbs).

Step 15: Repeat on the Other Front Side

• Repeat Steps 3–14 on the other front wheel.
• Do one side at a time for reference.

Step 16: Reinstall Wheels and Lower the Rogue

• Remove the temporary lug nut holding the rotor if you installed one earlier using the 21mm socket.
• Install each front wheel onto the hub and hand-thread all lug nuts.
• Use the 21mm socket and ratchet to snug the lug nuts in a star pattern (do not fully torque while in the air).
• Use the floor jack to lift the Rogue slightly, remove the jack stands, then lower the vehicle fully to the ground.
• Use the 21mm socket and 1/2" torque wrench to tighten each lug nut in a star pattern to 113 Nm (83 ft-lbs).

Step 17: Final Checks and Brake Pedal Pump

• Check the brake fluid reservoir level; top up with the correct DOT 3 or DOT 4 brake fluid to the MAX line if needed.
• Sit in the driver’s seat and slowly pump the brake pedal 10–15 times until it feels firm; this seats the pads against the rotors.
• Check around both front calipers for any leaks or loose parts.

---

✅ After Repair

• 🚗 Test the brakes at low speed in a safe area: move forward and gently apply the brakes a few times to ensure the pedal is firm and the Rogue stops smoothly without pulling.
• 🚗 Listen for grinding, clunking, or metal-on-metal sounds; if you hear any, stop and recheck pad installation and hardware.
• 🚗 For the first 300–500 km, avoid very hard stops when possible to allow the pads and rotors to bed in.
• 🚗 After a short drive, recheck the lug nut torque with the torque wrench at 113 Nm (83 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $450–$700 (parts + labor) for front pads and rotors on a Rogue.

DIY Cost: $160–$320 (parts only, depending on brands).

You Save: $290–$380 by doing it yourself!

Shop labor rates are typically $100–$150/hour. This repair takes a shop about 1.5–2.0 hours.

---
