🔧 Escape - Front Brake Pads & Rotor Replacement

On your Escape, the front brake pads clamp the rotor to slow the vehicle. Replacing pads and rotors together restores smooth braking, reduces noise/vibration, and prevents new pads from wearing unevenly on old rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Escape with jack stands before working under/near wheels.
• 🛑 Do not press the brake pedal with a caliper removed.
• 🛑 Brakes may be hot; let parts cool before touching.
• 🛑 Keep brake fluid off paint; it can damage finishes.
• 🛑 Do not hang the caliper by the brake hose; support it with a hook.
• 🛑 Battery disconnect is not required for front brakes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (30-200 Nm range)
• 13mm socket
• 18mm socket
• Ratchet (3/8" or 1/2")
• Socket extension (3" to 6")
• Flat-blade screwdriver
• C-clamp or brake caliper piston compressor (specialty)
• Bungee cord or brake caliper hook (specialty)
• Wire brush
• Plastic or rubber mallet
• Micrometer or vernier caliper (specialty)
• Turkey baster or fluid suction pump (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake pad hardware/clip kit - Qty: 1
• Brake parts cleaner - Qty: 1
• Silicone brake grease - Qty: 1
• Medium-strength threadlocker - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and locate the brake fluid reservoir.
• If the reservoir is very full, remove a little fluid using a turkey baster or fluid suction pump so it won’t overflow when you compress the caliper piston.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel lug nuts

• Use a 21mm socket and breaker bar to loosen (do not remove) the lug nuts on both front wheels.

Step 2: Lift and support the Escape

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the proper front jacking point.
• Set the vehicle down onto jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm socket and remove the wheels.

Step 3: Remove the brake caliper

• Turn the steering wheel to give yourself room to work (turn left for right side, right for left side).
• Use a flat-blade screwdriver to gently pry the caliper outward a little (this helps make removal easier). Pry only on sturdy metal edges.
• Use a 13mm socket and ratchet to remove the two caliper guide pin bolts.
• Lift the caliper off the bracket and support it using a bungee cord or brake caliper hook (specialty).

Step 4: Remove the old pads and hardware

• Slide the brake pads out of the bracket by hand.
• Remove the pad hardware/clips from the bracket by hand or with a flat-blade screwdriver.

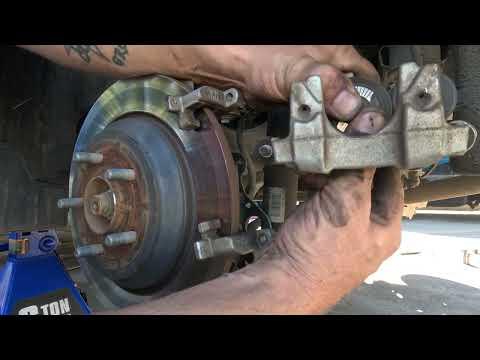

Step 5: Remove the caliper bracket

• Use an 18mm socket, breaker bar, and socket extension to remove the two caliper bracket bolts.
• Remove the bracket and set it aside.

Step 6: Remove the rotor

• If the rotor is stuck by rust, thread two lug nuts on a few turns by hand to prevent the rotor from falling.
• Tap the rotor hat area with a plastic or rubber mallet to break it free, then remove the rotor.

Step 7: Clean and prep the hub and bracket

• Use a wire brush to clean rust off the hub face (where the rotor sits).
• Clean the caliper bracket pad lands (where the clips sit) using a wire brush.
• Spray the rotor (both sides) with brake parts cleaner and wipe clean (new rotors often have protective oil).

Step 8: Install the new rotor

• Place the new rotor onto the hub.
• Hold it flush by threading on one lug nut by hand.

Step 9: Reinstall the caliper bracket

• Apply a small amount of medium-strength threadlocker to the caliper bracket bolts.
• Install and tighten the bracket bolts using an 18mm socket and ratchet.
• Final tighten with a torque wrench: Torque to 170 Nm (125 ft-lbs).

Step 10: Install new hardware clips and new pads

• Install the new hardware/clips into the bracket by hand.
• Apply a thin film of silicone brake grease where the pad ears touch the clips. Keep grease off pad friction material.
• Install the new pads into the bracket by hand.

Step 11: Compress the caliper piston

• Place one of the old pads against the piston face.
• Use a C-clamp or brake caliper piston compressor (specialty) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir level while compressing; remove fluid with a turkey baster or fluid suction pump (specialty) if it starts to overflow.

Step 12: Reinstall the caliper

• Slide the caliper over the new pads/rotor.
• Install the caliper guide pin bolts using a 13mm socket and ratchet.
• Final tighten with a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 13: Reinstall wheels

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the Escape off the jack stands using the floor jack.
• Torque the lug nuts in a star pattern using a torque wrench: Torque to 150 Nm (111 ft-lbs).

Step 14: Seat the pads and confirm fluid level

• With the engine off, press the brake pedal slowly 10–15 times until it feels firm. This seats pads against the rotor.
• Check the brake fluid reservoir and top off only if needed.

---

✅ After Repair

• Start the Escape and verify the brake pedal feels firm before moving.
• Do a slow test in a safe area: check for noise, pulling, or vibration.
• Re-check lug nut torque after a short drive: 150 Nm (111 ft-lbs).
• Pad break-in: make 8–10 moderate stops from ~30 mph to 5 mph, letting brakes cool a minute between stops. Avoid hard stops for 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $160-$420 (parts only)

You Save: $290-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
