🔧 Rogue - Front Brake Pads & Rotors Replacement

You’ll remove the front wheels, take off the brake calipers and brackets, swap the rotors, and install new pads on your Rogue. This restores braking performance and helps stop noise, vibration, and long stopping distances.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the vehicle with jack stands; never work under a car held only by a jack.
• 🧯 Work on one side at a time so you can look at the other side for reference.
• 🔥 Brakes get very hot. Let the brakes cool completely before you start.
• 🧤 Wear safety glasses and mechanic gloves to protect from dust and sharp edges.
• 🧪 Brake dust can be harmful; avoid blowing it with compressed air. Use brake cleaner spray instead.
• 🔧 Do not press the brake pedal with a caliper removed; it can pop the piston out.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum) - Qty: 2
• 🧰 Wheel chocks
• 🧰 19mm socket
• 🧰 14mm socket
• 🧰 17mm socket
• 🧰 3/8" drive ratchet
• 🧰 1/2" drive ratchet
• 🧰 Breaker bar 1/2" drive
• 🧰 Torque wrench 3/8" drive (5–60 ft-lbs range)
• 🧰 Torque wrench 1/2" drive (20–150 ft-lbs range)
• 🧰 C-clamp (6" or larger)
• 🧰 Disc brake caliper spreader tool (specialty)
• 🧰 Flathead screwdriver (medium)
• 🧰 Small wire brush
• 🧰 Rubber mallet
• 🧰 Bungee cord
• 🧰 Needle-nose pliers
• 🧰 Shop rags
• 🧰 Safety glasses
• 🧰 Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Front brake pad set - Qty: 1 set (does both front wheels)
• 🧱 Front brake rotors - Qty: 2 (replace in pairs)
• 🧱 Front brake hardware kit (pad clips/shims) - Qty: 1
• 🧱 High-temperature brake grease - Qty: 1 tube
• 🧱 Anti-seize compound - Qty: 1 small tube
• 🧱 Brake cleaner spray - Qty: 2 cans
• 🧱 Brake fluid DOT 3 or DOT 4 (Nissan-approved) - Qty: 1 small bottle for top-off
• 🧱 Front caliper bracket bolts - Qty: 4 (optional but recommended)

---

📋 Before You Begin

• 🅿️ Park the Rogue on a flat, solid surface. Put the transmission in PARK and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels so the vehicle cannot roll.
• 🔍 Open the hood and locate the brake fluid reservoir. It’s usually on the driver side near the firewall.
• 🧪 Check the brake fluid level. If it’s completely full to the top, you may need to remove a small amount with a clean syringe or turkey baster before compressing the caliper pistons, so it doesn’t overflow.
• 📸 Take a clear photo of the front brake assembly (pads, clips, and caliper) before disassembly for reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen Lug Nuts and Raise the Front

• Use the 19mm socket and breaker bar to loosen (but not remove) the front wheel lug nuts about one turn each while the Rogue is on the ground.
• Position the floor jack under the front center jacking point (front crossmember). Slowly raise the front of the vehicle.
• Place jack stands under the factory pinch weld jack points on both sides and lower the vehicle onto the stands.
• Use the 19mm socket and 3/8" ratchet to fully remove the front wheel lug nuts and remove both front wheels.
• Give the car a gentle push to confirm stability.

Step 2: Inspect and Identify Components

• On one front corner, locate the caliper (part squeezing the rotor), the caliper bracket (holds the pads), and the rotor (large disc).
• Note the two caliper slide/guide bolts on the back of the caliper (typically 14mm heads on your Rogue).
• Behind the caliper bracket, note the two larger caliper bracket bolts (typically 17mm heads).

Step 3: Remove the Caliper

• Use the 14mm socket and 3/8" ratchet to remove the two caliper slide bolts from the back of the caliper.
• Gently pry with a flathead screwdriver between the pad and rotor if the caliper is tight, just enough to relieve pressure.
• Lift the caliper off the bracket and rotor. Support it with a bungee cord hung on the strut spring so there is no strain on the rubber brake hose.
• Never let the caliper hang from the hose.

Step 4: Remove Old Brake Pads and Hardware

• Slide the old pads out of the caliper bracket by hand.
• Use needle-nose pliers if needed to remove the metal pad clips from the bracket.
• Take note of the orientation of any shims or wear indicators on the old pads.

Step 5: Remove the Caliper Bracket

• Use the 17mm socket and 1/2" ratchet or breaker bar to remove the two caliper bracket bolts from the steering knuckle.
• Remove the caliper bracket and set it on a clean surface.
• These bolts may be tight; use steady force.

Step 6: Remove the Rotor

• On most Rogues, the rotor is held only by rust and the wheel; there are usually no rotor retaining screws.
• If the rotor is stuck, lightly tap the rotor hat (the center part) with a rubber mallet to break rust free. Hit from different angles.
• Pull the rotor straight off the hub. If badly rusted, you may need to tap more firmly with the mallet around the edges.

Step 7: Clean Hub and Prepare New Rotor

• Use the wire brush to clean the face of the hub where the rotor sits. Remove all rust and debris so the new rotor sits flat.
• Wipe the hub with a shop rag and a little brake cleaner spray.
• Spray both sides of the new rotor with brake cleaner to remove any protective oil coating and wipe dry with clean rags.
• Apply a very thin layer of anti-seize compound to the hub face (not on studs) to help prevent future rotor rusting to the hub.

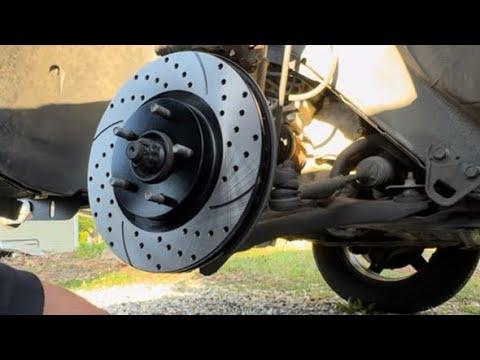

Step 8: Install New Rotor

• Place the new rotor onto the hub, aligning the holes with the wheel studs.
• To keep the rotor from wobbling while you work, thread on one or two lug nuts by hand to hold it flush.

Step 9: Service the Caliper Bracket and Slides

• Use the wire brush to clean the areas on the caliper bracket where the pad clips sit.
• Spray these areas with brake cleaner and wipe clean.
• Remove each caliper slide pin from the bracket one at a time (pull them out by hand). Note orientation if they differ.
• Wipe the old grease off the pins with a shop rag.
• Apply a thin, even coat of high-temperature brake grease to the pins and slide them back into the bracket until they move smoothly.
• Pins should slide freely with no sticking.

Step 10: Reinstall Caliper Bracket

• Position the caliper bracket over the new rotor and line up the bolt holes with the steering knuckle.
• Install the two caliper bracket bolts by hand to avoid cross-threading.
• Use the 17mm socket and 1/2" ratchet to snug them down.
• Then use the 1/2" torque wrench and 17mm socket to tighten each bracket bolt to 135 Nm (100 ft-lbs).

Step 11: Install New Pad Hardware and Pads

• Clip the new metal pad clips (from the hardware kit) into the cleaned caliper bracket by hand. Make sure they are fully seated and match your reference photo.
• Apply a very thin layer of high-temperature brake grease to the areas of the clips where the pad ears (ends) will slide. Do not get grease on the rotor or pad friction surface.
• Install the new inner and outer pads into the bracket. The pad with the wear indicator (if present) normally goes on the inside (check your kit instructions if included).

Step 12: Compress the Caliper Piston

• Before compressing, double-check the brake fluid reservoir level so it will not overflow.
• Place an old brake pad against the caliper piston face.
• Use a C-clamp or disc brake caliper spreader tool to slowly push the piston back into the caliper until it is fully seated. Go slowly to avoid damage.
• Remove the clamp/tool and old pad.

Step 13: Reinstall the Caliper Over New Pads

• Lower the caliper over the new pads and onto the caliper bracket.
• Make sure the caliper slide pin boots line up correctly with the caliper body.
• Install the two caliper slide bolts by hand.
• Use the 14mm socket and 3/8" ratchet to snug the slide bolts.
• Use the 3/8" torque wrench and 14mm socket to tighten each caliper slide bolt to 34 Nm (25 ft-lbs).

Step 14: Repeat on the Other Side

• Repeat Steps 3–13 on the other front wheel.
• Do one side at a time for reference.

Step 15: Reinstall Wheels and Lower Vehicle

• Remove any lug nuts you used to hold the rotor.
• Install each front wheel onto the studs.
• Thread all lug nuts on by hand.
• Use the 19mm socket and 3/8" ratchet to snug the lug nuts in a star pattern while the vehicle is still on jack stands.
• Raise the vehicle slightly with the floor jack, remove the jack stands, then lower the Rogue fully to the ground.
• Use the 19mm socket and 1/2" torque wrench to torque the lug nuts in a star pattern to 108 Nm (80 ft-lbs).

Step 16: Set Brake Pedal and Check Fluid

• Sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm. This seats the new pads against the rotors.
• Check the brake fluid reservoir level. Top off with DOT 3 or DOT 4 Nissan-approved brake fluid if needed, but do not overfill.
• Wipe any spilled brake fluid immediately with a shop rag. Brake fluid can damage paint.

---

✅ After Repair

• 🚗 With the engine running, press the brake pedal a few more times to confirm it’s firm and consistent.
• 🧪 Look through the wheels and around the calipers to check for any leaks or parts out of place.
• 🛣️ Perform a gentle test drive in a safe area: start with low speeds, check for noises, pulling, or vibration.
• 🛞 Bed-in (break-in) the pads: Make 5–8 moderate stops from about 30–40 km/h to 10 km/h, allowing a bit of time in between for cooling. Avoid hard emergency-style stops for the first 200–300 km unless necessary.
• 🔁 After the test drive, recheck lug nut torque with the 19mm socket and torque wrench to 108 Nm (80 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $450–$700 (parts + labor) for front pads and rotors on a Rogue.

DIY Cost: $180–$320 (parts only, depending on brands).

You Save: $270–$380 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2 hours.

---
