🔧 Grand Cherokee - Front Brake Pads & Rotors Replacement

You’ll be replacing the front brake pads and rotors on your Grand Cherokee to restore braking performance and prevent noise or vibration. This job involves safely lifting the front of the vehicle, removing the calipers and rotors, and installing new parts with proper lubrication and torque.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always work on a cool brake system; hot brakes can burn skin.
• 🛑 Park on level ground, shift to Park, and set the parking brake.
• 🛑 Support the vehicle with jack stands; never rely only on a floor jack.
• 🛑 Wear safety glasses and a dust mask; brake dust can irritate lungs and eyes.
• 🛑 Do not press the brake pedal with the caliper removed; you can push pistons out.
• 🛑 Keep all grease and oil off rotor and pad friction surfaces.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum, Qty: 2)
• 🧰 Wheel chocks
• 🧰 Lug wrench (21mm)
• 🧰 Socket wrench (3/8" drive)
• 🧰 Socket wrench (1/2" drive)
• 🧰 13mm socket
• 🧰 21mm socket
• 🧰 Torx T30 bit
• 🧰 Torque wrench (3/8" drive, up to 50 ft-lbs)
• 🧰 Torque wrench (1/2" drive, up to 200 ft-lbs)
• 🧰 C-clamp (6" or larger) or disc brake piston tool
• 🧰 Flathead screwdriver (medium)
• 🧰 Breaker bar (1/2" drive)
• 🧰 Wire brush (handheld)
• 🧰 Bungee cord or mechanic’s wire
• 🧰 Shop rags
• 🧰 Catch pan or tray
• 🧰 Brake cleaner spray
• 🧰 Small pick or awl
• 🧰 Rubber mallet or dead-blow hammer
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Dust mask or respirator

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake pad set - Qty: 1 (replace both sides)
• 🔩 Front brake rotors - Qty: 2 (replace in pairs)
• 🔩 Front brake pad hardware kit (anti-rattle clips / abutment clips) - Qty: 1
• 🔩 High-temperature brake grease - Qty: 1 tube
• 🔩 Brake cleaner (aerosol) - Qty: 2 cans
• 🔩 Brake fluid (DOT 3 or DOT 4, as specified on cap) - Qty: 1 small bottle for top-off
• 🔩 Caliper bracket bolts (front, optional but recommended) - Qty: 4
• 🔩 Rotor retaining screws (Torx T30, if corroded) - Qty: 2

---

📋 Before You Begin

• 🧭 Park the Grand Cherokee on a flat surface, shift to Park, set the parking brake, and turn off the engine.
• 🧭 Place wheel chocks behind the rear wheels to prevent any movement.
• 🧭 Loosen (do not remove) the front wheel lug nuts with the 21mm lug wrench while the vehicle is still on the ground.
• 🧭 Open the hood and locate the brake fluid reservoir; note the fluid level so you can avoid overfilling later.
• 🧭 Lay out tools and new parts in a clean area so you can compare old and new parts as you remove them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the vehicle

• Use the floor jack under the front center jacking point or under the front subframe crossmember, following the owner’s manual diagram.
• Raise the front until both front wheels are off the ground.
• Place jack stands under the factory-recommended pinch welds or frame points on both sides.
• Lower the vehicle gently onto the jack stands using the floor jack.
• Give the vehicle a shake to confirm stability.

Step 2: Remove the front wheels

• Use the 21mm lug wrench to remove the lug nuts from one front wheel.
• Remove the wheel and set it aside; repeat for the other front wheel.
• Keep lug nuts together so none are lost.

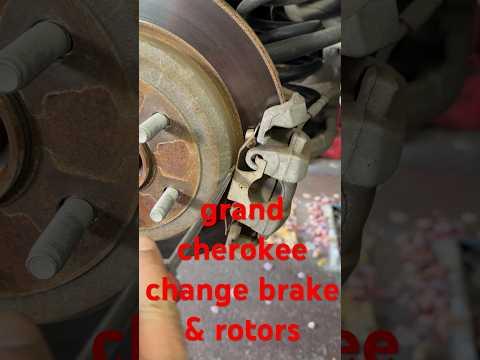

Step 3: Inspect the front brake assembly

• Look at the brake caliper (the clamp over the rotor), caliper bracket (the mount behind the caliper), rotor (the disc), and pads (between rotor and caliper).
• Note how the brake pads sit in the metal clips in the bracket; you will reinstall the new pads the same way.
• Take a quick photo for reference later.

Step 4: Remove caliper guide pin bolts

• On the back of the caliper, locate the two smaller slider/guide pin bolts.
• Use the 13mm socket and 3/8" drive socket wrench to remove the upper and lower guide pin bolts.
• Carefully slide the caliper off the rotor; if it’s tight, gently wiggle it while pulling.
• Support the caliper with a bungee cord or mechanic’s wire from the suspension spring so it does not hang by the brake hose.
• Never let the caliper dangle from the hose.

Step 5: Remove old brake pads and hardware

• Slide the old brake pads out of the caliper bracket by hand or use the flathead screwdriver to gently pry them out.
• Remove the metal pad retaining clips (hardware) from the caliper bracket using the flathead screwdriver or small pick.
• Set the old pads aside for comparison with the new ones.

Step 6: Remove caliper bracket

• Locate the two large bolts holding the caliper bracket to the steering knuckle on the back side.
• Use the 21mm socket with a breaker bar or 1/2" drive socket wrench to loosen and remove these bolts.
• Remove the caliper bracket and set it on a clean surface.
• Caliper bracket bolt torque on install: 176 Nm (130 ft-lbs)

Step 7: Remove the rotor

• Look for a small screw or screws holding the rotor to the hub; typically a Torx T30.
• Use the Torx T30 bit with the 3/8" drive socket wrench to remove the rotor retaining screw(s).
• If the rotor is stuck to the hub from rust, tap around the center hat area with a rubber mallet until it loosens, then pull it off.
• Rotor retaining screw torque on install: 12 Nm (9 ft-lbs)
• Avoid hitting friction surface directly.

Step 8: Clean the hub and prepare new rotors

• Use the wire brush to clean rust and debris from the face of the hub where the rotor sits; this prevents rotor wobble.
• Spray the hub face lightly with brake cleaner and wipe with a shop rag.
• Spray the new rotors (both sides) with brake cleaner to remove protective oil and wipe dry with a shop rag.
• Clean rotors prevent pad contamination.

Step 9: Install new rotor

• Place the new rotor onto the hub, aligning the rotor hole with the retaining screw hole.
• Install the rotor retaining screw using the Torx T30 bit and 3/8" drive torque wrench.
• Tighten the screw to 12 Nm (9 ft-lbs).
• Hand-start screw to avoid cross-threading.

Step 10: Prepare and reinstall caliper bracket with new hardware

• Use brake cleaner and a wire brush to clean the caliper bracket, especially the areas where the pad hardware clips sit.
• Install the new pad hardware clips from your kit into the caliper bracket; press firmly until they snap in place.
• Reinstall the caliper bracket over the new rotor and line up the bolt holes.
• Install the caliper bracket bolts by hand, then tighten using the 21mm socket and 1/2" drive torque wrench.
• Torque the caliper bracket bolts to 176 Nm (130 ft-lbs).

Step 11: Lubricate contact points and install new pads

• Apply a thin layer of high-temperature brake grease to the metal surfaces of the new hardware clips where the pads will slide. Do not get grease on the friction material.
• If your pads have wear indicators (small metal tabs), match the orientation to the old pads (usually on the inboard pad).
• Slide the new brake pads into the caliper bracket, making sure they move freely in the clips.
• Pads should sit flat and even against rotor.

Step 12: Compress caliper piston

• Check the fluid level in the brake reservoir under the hood; if it is very full, remove a small amount with a clean syringe or turkey baster into a catch pan to avoid overflow.
• Place an old brake pad over the caliper piston face.
• Use a C-clamp or disc brake piston tool to slowly compress the piston fully into the caliper body.
• Watch the fluid level in the reservoir as you compress the piston to ensure it does not overflow.
• Compress slowly to protect seals.

Step 13: Reinstall caliper over new pads

• Inspect the caliper slide pins (the parts you removed the 13mm bolts from); pull them out by hand, wipe with a shop rag, and apply a light coat of high-temperature brake grease, then reinstall into the caliper.
• Position the caliper over the new pads and onto the caliper bracket.
• Reinstall the 13mm guide pin bolts by hand to avoid cross-threading.
• Use the 13mm socket and 3/8" drive torque wrench to torque the guide pin bolts to 35 Nm (26 ft-lbs).

Step 14: Repeat on the other side

• Repeat Steps 4 through 13 for the other front wheel.
• Always replace pads and rotors in pairs.

Step 15: Reinstall wheels and lower the vehicle

• Install each front wheel back onto the hub and hand-thread all lug nuts.
• Use the 21mm lug wrench to snug the lug nuts in a star pattern with the vehicle still on jack stands (just snug, not final torque).
• Use the floor jack to raise the vehicle slightly, remove the jack stands, and lower the vehicle fully to the ground.
• Use the 1/2" drive torque wrench with the 21mm socket to torque each lug nut in a star pattern to 149 Nm (110 ft-lbs).

Step 16: Final checks and pedal pump

• Check the brake fluid reservoir and top off with the correct brake fluid (DOT 3 or DOT 4) if needed, without exceeding the MAX line.
• With the engine off, sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm; this seats the pads against the rotors.
• Look under the vehicle around the calipers and lines to ensure there are no leaks or loose parts.

---

✅ After Repair

• 🚗 Start the engine and, with the vehicle in Park, press the brake pedal to confirm it feels firm and consistent.
• 🚗 Drive slowly in a safe area and perform several gentle stops from 20–30 km/h to bed in the new pads and rotors.
• 🚗 Avoid hard braking and high-speed stops for the first 300–500 km to allow proper break-in.
• 🚗 After the test drive, recheck the lug nut torque with the torque wrench and inspect for any unusual noises or smells.

---

💰 DIY vs Shop Cost

Shop Cost: $500–$800 (parts + labor)

DIY Cost: $200–$350 (parts only)

You Save: $300–$450 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
