🔧 Equinox - Front Brake Pads & Rotors Replacement

You’ll be removing the front wheels, taking off the brake caliper and bracket, then replacing the brake pads and brake rotors on your Equinox. This restores safe stopping power and prevents vibration from warped or worn rotors.

Difficulty Level: Intermediate (first-timer friendly with patience) | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the vehicle with jack stands, never rely only on a floor jack.
• 🧯 Work on a cool brake system; hot brakes can burn skin and release hot dust.
• 😷 Brake dust can be harmful; avoid blowing it with compressed air and do not inhale it.
• 🔒 Set the parking brake and keep the transmission in Park, but remember the parking brake works on the rear, not the front.
• 🔋 You do not need to disconnect the battery for this job.
• 🧱 Chock (block) the rear wheels to keep the Equinox from rolling.
• 🧤 Wear safety glasses and gloves for the entire repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Lug nut wrench or 19mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 1/2" drive breaker bar
• 🛠️ 13mm socket
• 🛠️ 18mm socket
• 🛠️ Torx T30 bit or screwdriver
• 🛠️ Torque wrench (10–150 ft-lbs range)
• 🛠️ C-clamp (6"–8") or disc brake piston tool
• 🛠️ Flathead screwdriver (medium size)
• 🛠️ Small wire brush
• 🛠️ Bungee cord or strong wire
• 🛠️ Brake cleaner spray
• 🛠️ Shop towels or rags
• 🛠️ Rubber or nitrile gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧩 Front brake pad set (for your Equinox Premier) - Qty: 1
• 🧩 Front brake rotors (left and right) - Qty: 2
• 🧩 Front brake pad hardware kit (abuttment/slider clips) - Qty: 1
• 🧩 High-temperature brake grease - Qty: 1 small tube
• 🧩 Brake cleaner - Qty: 1–2 cans
• 🧩 New rotor retaining screws (Torx, if corroded) - Qty: 2
• 🧩 Anti-seize compound - Qty: 1 small tube

---

📋 Before You Begin

• Park the Equinox on level ground, set the parking brake, place the transmission in Park, and shut the engine off.
• Place wheel chocks behind both rear wheels.
• Loosen (but do not remove) the front wheel lug nuts one turn with a 19mm socket or lug wrench while the vehicle is still on the ground.
• Gather all tools and parts near your work area so you do not have to crawl out mid-job.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Front of the Vehicle

• Position the floor jack under the front center jacking point (crossmember) of the Equinox.
• Use the floor jack to lift the front until both front wheels are off the ground.
• Place jack stands under the reinforced pinch weld or frame points on both sides and slowly lower the vehicle onto the stands.
• Give the vehicle a firm shake to confirm stability.

Step 2: Remove Front Wheels

• Use a 19mm socket and 1/2" drive ratchet or lug wrench to fully remove the lug nuts from the front wheels.
• Remove both front wheels and set them aside in a safe place.

Step 3: Inspect the Brake Assembly

• Visually inspect the caliper, brake hose, pads, and rotor for damage or leaks.
• Note how the pads and hardware are installed; you’ll copy this.

Step 4: Remove Caliper Guide Pin Bolts

• Locate the two caliper guide pin bolts on the back of the caliper (top and bottom).
• Use a 13mm socket and 3/8" drive ratchet to remove both guide pin bolts.
• Carefully slide the caliper off the rotor. If stuck, gently pry with a flathead screwdriver between pad and rotor.
• Hang the caliper from the strut spring using a bungee cord or wire; do not let it hang by the rubber brake hose.

Step 5: Remove Old Brake Pads and Hardware

• Pull the inner and outer pads out of the caliper bracket by hand.
• Remove the metal clips (pad hardware) from the caliper bracket using a flathead screwdriver if needed.
• Use a wire brush to clean the areas of the caliper bracket where the hardware clips sit.
• Spray the bracket and surrounding area with brake cleaner and wipe with shop towels.

Step 6: Remove Caliper Bracket

• Locate the two large bolts holding the caliper bracket to the steering knuckle behind the rotor.
• Use an 18mm socket with a 1/2" drive breaker bar to loosen these bolts (they are tight).
• Remove the bolts fully and take off the caliper bracket.
• Keep track of these bolts; they will be reused.

Step 7: Remove Rotor Retaining Screw and Rotor

• Locate the small Torx screw securing the rotor to the hub face.
• Use a Torx T30 bit with a 3/8" drive ratchet or screwdriver to remove the rotor retaining screw.
• If the rotor is stuck to the hub from rust, tap around the rotor hat (center area) with a rubber mallet until it breaks free, then pull the rotor off.
• Avoid hitting the dust shield behind the rotor.

Step 8: Clean Hub Surface

• Use a wire brush to clean the hub face where the rotor sits until it is free of rust and debris.
• Wipe the hub with brake cleaner and shop towels.
• Apply a very thin layer of anti-seize compound to the hub face to help future rotor removal. Do not get it on studs.

Step 9: Install New Rotor

• Spray the new rotor friction surfaces with brake cleaner to remove the protective oil coating, then wipe dry.
• Place the new rotor onto the hub, aligning the holes with the wheel studs.
• Reinstall the rotor retaining screw using the Torx T30 bit and snug it down. Torque to 9 Nm (80 in-lbs) if you have a small torque wrench.

Step 10: Reinstall Caliper Bracket

• Position the caliper bracket over the new rotor and line up the bolt holes.
• Install the two caliper bracket bolts by hand first to avoid cross-threading.
• Use an 18mm socket and 1/2" drive ratchet to tighten them.
• Then use a torque wrench with the 18mm socket to torque each bracket bolt to 133 Nm (98 ft-lbs).

Step 11: Install New Pad Hardware and Lubricate Contact Points

• Clip the new hardware (metal clips) from your hardware kit into the caliper bracket by hand until fully seated.
• Apply a very thin layer of brake grease on the areas of the hardware where the pad “ears” will slide.
• Do not get grease on the rotor or pad friction surfaces.

Step 12: Compress the Caliper Piston

• Inspect the rubber boot around the caliper piston; make sure it is not torn.
• Place an old brake pad against the caliper piston.
• Use a C-clamp to press the piston slowly back into the caliper bore until it is fully seated and flush.
• Go slowly to avoid damaging seals.

Step 13: Install New Brake Pads

• Identify inner and outer pads (inner pad usually has a wear indicator clip if present).
• Apply a light layer of brake grease to the pad backing plates where they contact the caliper and hardware (not on the friction surface).
• Slide the new pads into the hardware clips in the caliper bracket by hand. Make sure they move freely.

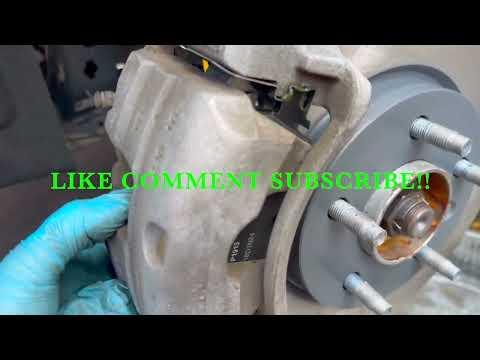

Step 14: Reinstall Brake Caliper

• Lower the caliper over the new pads and onto the bracket.
• Align the caliper guide pin holes with the bracket threads.
• Reinstall the two guide pin bolts by hand.
• Use a 13mm socket and 3/8" drive ratchet to snug them down.
• Use a torque wrench with the 13mm socket to torque each guide pin bolt to 31 Nm (23 ft-lbs).

Step 15: Repeat on the Other Front Side

• Perform the same steps (4–14) on the other front wheel.
• Always replace pads and rotors in pairs on the same axle.

Step 16: Reinstall Wheels

• Put each wheel back onto the hub and hand-thread all lug nuts.
• Use a 19mm socket and 1/2" drive ratchet to snug the lug nuts in a star pattern while the vehicle is still on jack stands.

Step 17: Lower Vehicle and Torque Lug Nuts

• Use the floor jack to lift the vehicle slightly, remove the jack stands, then lower the Equinox completely to the ground.
• Use a torque wrench with a 19mm socket to torque the lug nuts in a star pattern to 140 Nm (103 ft-lbs).

Step 18: Pump Brake Pedal

• Before driving, sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm.
• This seats the pads against the rotors.

---

✅ After Repair

• Start the engine and press the brake pedal again to confirm it feels firm and normal.
• Check around both front calipers and brake hoses for any signs of fluid leaks.
• Perform a short, low-speed test drive: 5–10 gentle stops from 20–30 km/h to ensure there is no pulling, grinding, or vibration.
• Bed-in (break in) the new pads and rotors: make 8–10 moderate stops from 40–50 km/h down to 10 km/h, allowing brakes to cool slightly between stops. Avoid hard panic stops for the first 300–500 km unless needed for safety.

---

💰 DIY vs Shop Cost

Shop Cost: $350–$550 (parts + labor)

DIY Cost: $150–$250 (parts only)

You Save: $200–$300 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
