🔧 Fusion - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, swapping the brake pads, and replacing the front rotors, then reassembling everything with the correct torque. New rotors are recommended whenever pads are worn unevenly, the steering wheel shakes while braking, or the rotors are rusty/grooved.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: your Fusion uses the common Ford front caliper/bracket design; bolt sizes can vary, but the process is the same.

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat surface and support the car with jack stands (never rely on a jack alone).
• ⚠️ Wear safety glasses and nitrile gloves; brake dust and cleaner are irritating.
• ⚠️ Keep brake fluid off paint; it can damage the finish.
• ⚠️ Do not press the brake pedal with a caliper removed.
• ⚠️ Hybrid note: this job is standard front brakes; no high-voltage service is required for pads/rotors.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket (19mm)
• Breaker bar (1/2-inch drive)
• Torque wrench (1/2-inch drive)
• Torque wrench (3/8-inch drive)
• Socket set (8mm-21mm)
• Ratchet (3/8-inch drive)
• Ratchet (1/2-inch drive)
• Combination wrench set (10mm-19mm)
• Hex bit socket set (metric)
• Torx bit socket set (T30-T55)
• C-clamp (6-inch)
• Wire brush
• Bungee cord
• Flathead screwdriver
• Rubber mallet
• Micrometer or vernier caliper (specialty)
• Brake bleeder bottle
• Shop rags
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware kit (clips/shims) - Qty: 1
• Brake cleaner - Qty: 2 cans
• Brake lubricant (silicone or synthetic) - Qty: 1
• DOT 3 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front lug nuts 1/2 turn with a 19mm lug socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; place a rag around it in case fluid rises when compressing caliper pistons.
• Turn the steering wheel to give yourself room (turn left to work on right side, and vice versa).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack on the approved front lift point and raise the front of the car.
• Set the car down onto jack stands and give the car a gentle push to confirm it’s stable.
• Remove the wheels using a 19mm lug socket and ratchet.
• Reinstall lug nuts by hand on one stud (optional) to keep the rotor from flopping later.

Step 2: Remove the caliper (the clamp that squeezes the pads)

• Locate the two caliper slide/guide pin bolts on the back of the caliper.
• Remove the slide/guide pin bolts using the correct socket or hex bit socket (metric).
• Carefully lift the caliper off the rotor.
• Hang the caliper with a bungee cord from the strut spring. Never let it hang by the hose.

Step 3: Remove the old pads and hardware

• Slide the old pads out by hand; use a flathead screwdriver gently if needed.
• Remove the stainless pad clips (hardware) from the caliper bracket.
• Clean the bracket pad “lands” (where clips sit) using a wire brush and brake cleaner.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a breaker bar and correct socket (these are usually tight).
• Set the bracket aside.
• Torque on install (typical Fusion spec): Torque to 115 Nm (85 ft-lbs)

Step 5: Remove the rotor

• If your rotor has a retaining screw, remove it using the correct Torx bit socket.
• Pull the rotor off the hub. If stuck, tap around the rotor hat with a rubber mallet and apply brake cleaner to knock rust loose.
• Clean the hub face with a wire brush so the new rotor sits flat. Flat hub = no brake shake.

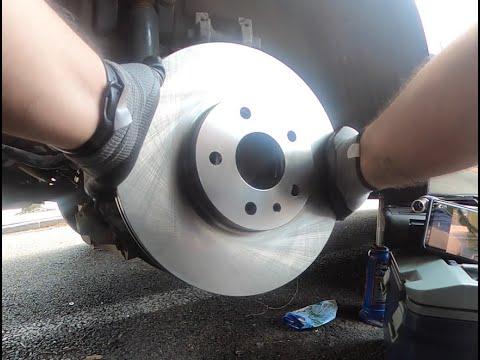

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner and wipe with shop rags (removes protective oil).
• Install the rotor onto the hub.
• If equipped, reinstall the rotor retaining screw using a Torx bit socket (snug only—do not over-tighten).

Step 7: Service the slide pins (so the caliper moves freely)

• Pull the slide pins out of the bracket by hand (twist gently if needed).
• Wipe old grease off with shop rags.
• Apply a thin coat of brake lubricant and reinstall the pins.
• Brake lube is high-temp grease for brakes.

Step 8: Install new hardware and pads

• Install new pad clips into the bracket.
• Apply a very thin film of brake lubricant where the pad ears touch the clips (not on rotor/pad friction).
• Install the new pads into the bracket.

Step 9: Compress the caliper piston

• Place an old brake pad against the piston face.
• Use a C-clamp (6-inch) to slowly press the piston back into the caliper.
• Watch the brake fluid reservoir level while compressing; remove excess fluid if it gets too high using a brake bleeder bottle.
• Go slow to avoid seal damage.

Step 10: Reinstall the caliper

• Place the caliper over the new pads and rotor.
• Reinstall the slide/guide pin bolts using the correct socket or hex bit socket (metric).
• Torque (typical Fusion spec): Torque to 35 Nm (26 ft-lbs)

Step 11: Reinstall wheels

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench (1/2-inch drive).
• Torque to 135 Nm (100 ft-lbs)

Step 12: Build pedal pressure

• With the car still in Park, press the brake pedal 10–15 times until it feels firm.
• Recheck brake fluid level and top off with DOT 3 brake fluid if needed.

---

✅ After Repair

• Start the car and confirm the brake pedal remains firm.
• Test at low speed first: verify normal stopping, no pulling, and no grinding noises.
• Perform pad bedding (break-in): make 6–10 moderate stops from 40 mph down to 10 mph, allowing a little rolling between stops.
• Recheck for leaks around the calipers and confirm the brake fluid level is between MIN and MAX.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $150-$320 (parts only)

You Save: $300-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
