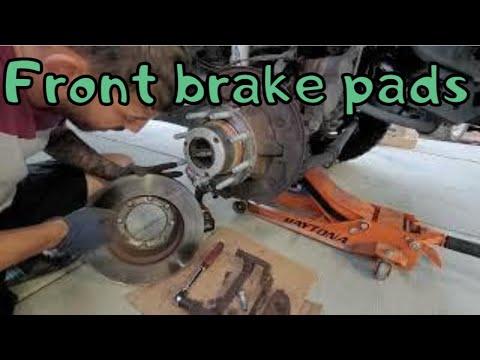

🔧 F-250 Super Duty - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the front brake calipers and brackets, swap the rotors, then install new pads and hardware. This restores braking power and prevents vibration/pulsation caused by worn pads or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support your F-250 Super Duty on jack stands on level ground; never rely on a jack.
• 🛞 Chock the rear wheels with wheel chocks before lifting the front.
• 🧤 Wear safety glasses and nitrile gloves; brake dust and cleaner are irritants.
• 🔥 Brakes can be hot—let everything cool before touching rotors/calipers.
• 🧴 Don’t let brake fluid overflow when compressing pistons; keep an eye on the reservoir.
• 🔩 Do not hang the caliper by the brake hose; use a hanger.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar 1/2"
• Torque wrench 1/2"
• 21mm socket (lug nuts)
• 13mm socket
• 21mm socket
• Ratchet 1/2"
• Flat-blade screwdriver
• C-clamp (6-inch minimum)
• Brake caliper hanger hook (specialty)
• Wire brush
• Dead-blow hammer
• Micrometer or vernier caliper (specialty)
• Drain pan

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake parts cleaner - Qty: 2 cans
• High-temp silicone brake grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Crack the front lug nuts loose before lifting.
• Open the hood and locate the brake fluid reservoir; you’ll monitor the level while compressing caliper pistons.
• Torque wrench note: it’s a tool that tightens bolts to an exact spec so nothing is too loose or too tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 21mm socket and breaker bar 1/2" to loosen (do not remove) the front lug nuts.
• Use a floor jack (rated 3-ton minimum) to lift the front and place jack stands (rated 3-ton minimum) under the frame.
• Place wheel chocks behind the rear wheels.

Step 2: Remove the front wheels

• Remove lug nuts with a 21mm socket and ratchet 1/2", then remove both front wheels.

Step 3: Remove the caliper (do not stretch the hose)

• Turn the steering to give yourself room at the caliper you’re working on.
• Use a flat-blade screwdriver to carefully pry the caliper outward slightly to create clearance.
• Remove the caliper slide bolts using a 13mm socket and ratchet 1/2".
• Lift the caliper off and support it with a brake caliper hanger hook (specialty).

Step 4: Remove the old pads and caliper bracket

• Remove the pads from the bracket by hand.
• Remove the caliper bracket bolts using a 21mm socket and breaker bar 1/2".
• Set the bracket aside.

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck from rust, tap around the rotor hat with a dead-blow hammer until it breaks free.

Step 6: Clean the hub face and prep the new rotor

• Use a wire brush to clean rust off the hub face (where the rotor sits).
• Spray the new rotor with brake parts cleaner and wipe it clean to remove protective oil.
• A clean hub helps prevent brake pulsation.

Step 7: Install the new rotor

• Slide the new rotor onto the hub.
• Temporarily hold it flush by installing 2 lug nuts backwards by hand, then snug them with a 21mm socket and ratchet 1/2" (do not fully torque).

Step 8: Reinstall the caliper bracket

• Reinstall the bracket and start the bolts by hand.
• Tighten using a 21mm socket and torque wrench 1/2".
• Torque to 295 Nm (218 ft-lbs)

Step 9: Install new pad hardware and pads

• Install the new hardware clips from the front brake pad hardware kit into the bracket.
• Apply a thin film of high-temp silicone brake grease to the pad “ears” where they slide in the clips.
• Install the new pads into the bracket by hand.

Step 10: Compress the caliper pistons

• Check the brake fluid reservoir under the hood before compressing.
• Use a C-clamp (6-inch minimum) to slowly push the caliper pistons back until fully seated.
• Brake caliper piston compression note: this pushes the pistons back so thicker new pads fit over the rotor.
• If fluid rises near the max line, remove a little into a drain pan (do not spill on paint).

Step 11: Reinstall the caliper

• Place the caliper over the new pads and rotor.
• Install slide bolts using a 13mm socket and torque wrench 1/2".
• Torque to 35 Nm (26 ft-lbs)

Step 12: Repeat on the other side

• Repeat Steps 3–11 for the other front wheel.
• Always replace pads and rotors in pairs.

Step 13: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-start all lug nuts.
• Lower the truck off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).
• Torque lug nuts in a star pattern using a 21mm socket and torque wrench 1/2".
• Torque to 224 Nm (165 ft-lbs)

---

✅ After Repair

• With the engine off, pump the brake pedal 10–15 times until it feels firm.
• Check brake fluid level and top off only if needed.
• Start the engine and confirm the pedal feels normal (it may drop slightly with brake assist).
• Do a careful test drive at low speed and confirm no pulling, grinding, or warning lights.
• Pad bedding (break-in): make 8–10 moderate stops from 40 to 10 mph, letting brakes cool briefly between stops.

---
