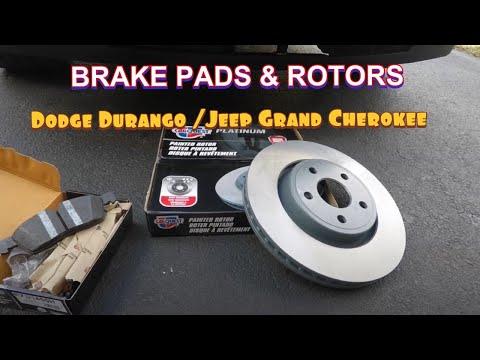

🔧 Durango - Front Brake Pads & Rotor Replacement

On your Durango SRT, the front brakes use high-performance fixed (Brembo-style) calipers. You’ll replace the front pads, then remove the caliper to swap the rotors, and finish with a careful bed-in so everything feels smooth and strong.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support the SUV with jack stands—never rely on the jack alone.
• 🔥 Brakes get extremely hot; let everything cool fully before touching calipers/rotors.
• 🧪 Don’t breathe brake dust—use brake cleaner and wipe with damp towels (don’t blow with air).
• 🧴 Brake fluid can overflow when pushing pistons back; protect paint and check the reservoir level often.
• 🔩 Use correct torque on wheels and caliper bolts—loose brakes are dangerous.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum) - Qty: 2
• Wheel chocks - Qty: 2
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (50-200 ft-lbs range)
• Ratchet (3/8" drive)
• Socket set (metric)
• Large C-clamp or disc brake piston compressor (specialty)
• Small flat screwdriver
• Needle-nose pliers
• Pin punch set (3/16" or 5mm punch)
• Small hammer
• Bungee cord or caliper hook (specialty)
• Wire brush
• Brake cleaner spray
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Brake pad hardware kit (anti-rattle spring/pins as applicable) - Qty: 1
• High-temperature brake grease - Qty: 1
• Brake cleaner - Qty: 1-2 cans
• Medium-strength threadlocker (blue) - Qty: 1
• Brake fluid (DOT type as shown on master cylinder cap) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, steering straight, and place wheel chocks behind the rear tires.
• Pop the hood and locate the brake fluid reservoir. If it’s at/near “MAX,” use shop towels to protect the area in case it rises during piston push-back.
• Crack the front lug nuts loose while the tires are still on the ground using a 21mm socket and breaker bar.
• Tip: Turn the steering to access caliper bolts easier.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front of the SUV using a floor jack (rated 3-ton minimum) at the proper front lift point.
• Set it securely on jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 21mm socket and remove both front wheels.

Step 2: Remove the pad retaining hardware (Brembo-style pins/spring)

• Locate the pad retaining pins and anti-rattle spring on the outside face of the caliper.
• Use needle-nose pliers and a small flat screwdriver to carefully remove the retaining clip (if equipped).
• Use a 3/16" or 5mm pin punch and small hammer to drive the pad pins out.
• Remove the anti-rattle spring and set all hardware aside in order.
• Tip: Cover the area so the spring can’t fly.

Step 3: Remove the old brake pads

• Slide the pads out of the caliper by hand.
• If they’re tight, use a small flat screwdriver gently at the pad backing plate (not the rotor) to start them moving.

Step 4: Compress the caliper pistons

• Place an old pad against the pistons, then slowly compress them using a large C-clamp or disc brake piston compressor (specialty).
• Go slowly and evenly so all pistons retract without binding.
• Check the brake fluid reservoir as you compress—wipe any overflow immediately with shop towels.
• Tip: Slow compression reduces seal damage risk.

Step 5: Remove the caliper to replace the rotor

• From the back side of the knuckle, remove the caliper mounting bolts using the appropriate socket set (metric) and 1/2" drive breaker bar.
• Carefully lift the caliper off the rotor and suspend it with a bungee cord or caliper hook (specialty).
• Do not let the caliper hang by the brake hose.

Step 6: Remove the old rotor

• Pull the rotor straight off the hub.
• If it’s stuck, spray the hub/rotor center area with brake cleaner spray, then tap the rotor hat with a small hammer to break it free.
• Clean the hub face with a wire brush so the new rotor sits perfectly flat.

Step 7: Install the new rotor

• Clean both sides of the new rotor with brake cleaner spray and shop towels to remove shipping oil.
• Install the rotor onto the hub.

Step 8: Reinstall the caliper (torque critical)

• Position the caliper over the new rotor.
• Apply medium-strength threadlocker (blue) to the caliper mounting bolts.
• Tighten using a ratchet first, then finish with a 1/2" drive torque wrench.
• Torque to 200 Nm (148 ft-lbs)

Step 9: Install the new pads and hardware

• Apply a thin film of high-temperature brake grease to the pad contact points where they slide (not on friction material).
• Slide the new pads into the caliper.
• Reinstall the anti-rattle spring and pad pins using a pin punch set and small hammer.
• Reinstall the retaining clip using needle-nose pliers (if equipped).

Step 10: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the SUV off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a 1/2" drive torque wrench.
• Torque to 176 Nm (130 ft-lbs)

---

✅ After Repair

• With the engine off, slowly pump the brake pedal 10-15 times until it feels firm.
• Check brake fluid level and top off only if needed using brake fluid (DOT type as shown on master cylinder cap).
• Start the engine and confirm the pedal stays firm.
• Do a low-speed test in a safe area: confirm smooth stops and no pulling or grinding.
• Pad/rotor bed-in: Do 6-10 medium stops from ~40 to 10 mph, with 30-60 seconds driving between stops to cool. Avoid hard stops to a complete standstill until cooled.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $450-$1,100 (parts only)

You Save: $450-$500+ by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
