🔧 RAV4 - Front Brake Pads & Rotors Replacement

You’ll be replacing the front brake pads and rotors on your RAV4 and reassembling everything safely so the brakes work smoothly and quietly. This job is very doable for a beginner if you go slowly and follow each step.

Difficulty Level: Beginner-Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the RAV4 with jack stands; never rely on the floor jack alone.
• ⚠️ Work on a flat, solid surface with the transmission in Park and parking brake fully applied.
• ⚠️ Brakes and wheels can get very hot after driving. Let everything cool before starting.
• ⚠️ Wear safety glasses and mechanic gloves to protect your eyes and hands.
• ⚠️ Do not press the brake pedal when a caliper is off the rotor; it can pop the piston out.
• ⚠️ Avoid getting grease or oil on the friction surfaces of the pads or rotors.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum, Qty: 2)
• 🧰 Wheel chocks
• 🧰 Lug wrench (21mm)
• 🧰 3/8" drive ratchet
• 🧰 1/2" drive ratchet
• 🧰 3/8" drive torque wrench (5–80 ft-lbs range)
• 🧰 1/2" drive torque wrench (50–150 ft-lbs range)
• 🧰 14mm socket
• 🧰 17mm socket
• 🧰 21mm socket
• 🧰 Flathead screwdriver (medium)
• 🧰 Wire brush (small, steel bristles)
• 🧰 Brake caliper compression tool (specialty)
• 🧰 C-clamp (6" or larger)
• 🧰 Bungee cord
• 🧰 Shop rags
• 🧰 Rubber mallet
• 🧰 Penetrating oil spray
• 🧰 Disposable nitrile gloves
• 🧰 Safety glasses

Torque wrench = tool that tightens bolts to a set force.

Brake caliper compression tool = tool that pushes caliper piston back in.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Front brake pad set - Qty: 1 (serves both front wheels, replace in pairs)
• 🧱 Front brake rotors - Qty: 2 (replace in pairs)
• 🧱 Front brake pad hardware kit (anti-rattle clips/shims) - Qty: 1
• 🧱 High-temperature brake grease - Qty: 1 small tube
• 🧱 Brake cleaner spray - Qty: 1–2 cans
• 🧱 Anti-seize compound - Qty: 1 small tube
• 🧱 Shop towels / paper towels - Qty: 1 roll

---

📋 Before You Begin

• 📝 Park the RAV4 on level ground, shift to Park, and set the parking brake.
• 📝 Place wheel chocks behind the rear wheels.
• 📝 Loosen (but do not remove) the front wheel lug nuts with the 21mm socket and lug wrench while the RAV4 is still on the ground.
• 📝 Lay out your new pads and rotors to confirm they match the old ones in size and shape.
• 📝 Keep one side assembled while working on the other as a visual reference.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the RAV4

• Position the floor jack (3-ton) under the front center jacking point (under the subframe, behind the front bumper).
• Raise the front of the RAV4 until both front wheels are off the ground.
• Place jack stands (3-ton) under the left and right front pinch welds or frame rail jacking points.
• Slowly lower the RAV4 onto the jack stands using the floor jack.
• Remove both front wheels using the 21mm socket and ratchet.
• Give the car a small shake to confirm it’s stable.

Step 2: Inspect the front brake assembly

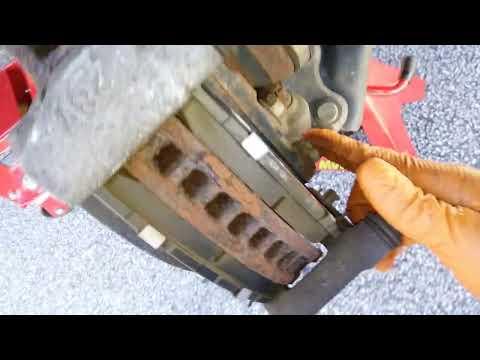

• Look at the caliper (the part that clamps the rotor) and the caliper bracket (the thicker metal bracket behind it).
• Note the routing of the brake hose and any clips so you can put them back the same way.
• Take a quick phone picture for reference later.

Step 3: Remove the caliper slide pin bolts

• Locate the two caliper slide pin bolts at the back of the caliper (top and bottom).
• Use a 14mm socket and 3/8" ratchet to loosen and remove both caliper slide pin bolts.
• Carefully slide the caliper off the pads and rotor.
• Hang the caliper from the suspension spring using a bungee cord so the brake hose is not stretched.
• Never let the caliper hang by the rubber hose.

Step 4: Remove old pads and hardware

• Pull the old brake pads out of the caliper bracket by hand or with a flathead screwdriver if they are tight.
• Remove the metal pad clips (hardware) from the caliper bracket using the flathead screwdriver.
• Set one old pad aside to compare thickness with the new pads.

Step 5: Remove the caliper bracket

• Locate the two caliper bracket bolts at the back of the steering knuckle.
• Use a 17mm socket and 1/2" ratchet to loosen and remove these two bolts.
• Remove the caliper bracket from the rotor and set it on a clean surface.

Step 6: Remove the old rotor

• If the rotor is stuck, spray the hub area with penetrating oil spray and let it soak for a few minutes.
• Tap around the rotor hat (center area) with a rubber mallet to break it free.
• Slide the rotor straight off the hub.
• Do not hit the wheel studs directly with the hammer.

Step 7: Clean the hub and prepare the new rotor

• Use a wire brush to clean rust and debris from the hub face where the rotor sits.
• Wipe the hub with a shop rag and a little brake cleaner spray.
• Spray the new rotor (both sides) and the hat area with brake cleaner spray to remove protective oil, then wipe dry with shop rags.
• Apply a thin film of anti-seize compound to the hub face only (very thin layer).
• Clean rotors stay oil-free for best braking.

Step 8: Install the new rotor

• Slide the new rotor onto the hub, aligning it with the wheel studs.
• Temporarily secure the rotor by threading one lug nut onto a stud using the 21mm socket and ratchet (hand tight) so the rotor doesn’t flop around.

Step 9: Prepare and reinstall the caliper bracket

• Use the wire brush to clean the pad contact areas on the caliper bracket.
• Install the new metal pad clips (hardware) into the bracket by hand; press until they snap fully into place.
• Reinstall the caliper bracket onto the steering knuckle.
• Install the two bracket bolts by hand, then tighten with the 17mm socket and 1/2" ratchet.
• Use the 1/2" drive torque wrench and 17mm socket to tighten bracket bolts to 107 Nm (79 ft-lbs).

Step 10: Lubricate slide pins and pad contact points

• Pull the caliper slide pins out of the caliper bracket (note their orientation).
• Wipe each pin clean with a shop rag.
• Apply a thin coat of high-temperature brake grease to each slide pin and reinstall them into the bracket.
• Apply a very thin coat of brake grease to the areas where the pad backing plates will contact the clips (do not get grease on pad friction material).
• Only metal-to-metal contact points get grease.

Step 11: Install the new brake pads

• Compare new pads with the old ones for shape and size.
• Install the inner and outer pads into the caliper bracket, pressing them into the new clips until they seat firmly.
• Ensure any wear indicator tab (small metal finger) goes in the same position as on the old pad.

Step 12: Compress the caliper piston

• Place an old brake pad against the caliper piston face.
• Use the brake caliper compression tool or a C-clamp to slowly push the piston back into the caliper until it is fully seated.
• Watch the brake fluid reservoir under the hood; make sure it does not overflow. If it gets too full, remove some fluid with a clean syringe or turkey baster into a safe container.
• Compress slowly to avoid damaging the piston seal.

Step 13: Reinstall the caliper over the new pads

• Remove the temporary lug nut holding the rotor with the 21mm socket and ratchet.
• Position the caliper over the new pads and onto the caliper bracket.
• Align the caliper slide pin bolt holes.
• Install the upper and lower slide pin bolts by hand, then snug them with the 14mm socket and 3/8" ratchet.
• Use the 3/8" drive torque wrench and 14mm socket to tighten the slide pin bolts to 34 Nm (25 ft-lbs).

Step 14: Repeat on the other side

• Perform Steps 3–13 on the other front wheel.
• Do one side fully before the other side.

Step 15: Reinstall wheels and lower the RAV4

• Mount each front wheel onto the hub and hand-thread all lug nuts.
• Snug the lug nuts in a star pattern with the 21mm socket and ratchet (do not fully tighten while in the air).
• Raise the RAV4 slightly with the floor jack, remove the jack stands, then lower the vehicle to the ground.
• Use the 1/2" drive torque wrench and 21mm socket to torque the lug nuts in a star pattern to 103 Nm (76 ft-lbs).

Step 16: Pump the brake pedal and check fluid

• Sit in the driver’s seat and slowly pump the brake pedal 10–15 times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid level in the reservoir under the hood. Adjust to the “MAX” line if needed with the correct brake fluid type for your RAV4.
• Wipe any spilled fluid immediately with shop rags.

---

✅ After Repair

• 🚗 Before driving at speed, test the brakes at low speed in a safe area. Make sure the pedal feels firm and the RAV4 stops smoothly without pulling left or right.
• 🚗 Listen for any grinding, clunking, or scraping noises. If you hear any, stop and recheck your work.
• 🚗 New pads and rotors need a short break-in (bedding) period:
  • Do 5–10 gentle stops from about 20–30 mph to 0 using light to medium brake pressure.
  • Avoid hard braking or long downhill braking for the first 200–300 km (or 150–200 miles).
• 🚗 After your first drive, recheck lug nut torque with the torque wrench set to 103 Nm (76 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $450–$650 (parts + labor)

DIY Cost: $150–$300 (parts only)

You Save: $300–$350 by doing it yourself!

Shop labor rates are typically $100–$150/hour. This repair takes a shop about 1.5–2.0 hours.

---
