🔧 Rogue - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, unbolting the brake calipers and brackets, swapping the pads and rotors, then putting everything back and torquing it to spec. This restores stopping power and prevents vibrations from worn or warped rotors.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cool brake system; hot brakes can burn skin quickly.
• ⚠️ Park the Rogue on solid, level ground with the parking brake fully set and transmission in Park.
• ⚠️ Use a floor jack and jack stands; never rely on the jack alone to hold the vehicle up.
• ⚠️ Wear safety glasses and a dust mask; brake dust is harmful to breathe and to your eyes.
• ⚠️ Do not press the brake pedal with a caliper removed; it can push the piston out.
• ⚠️ Keep brake fluid off paint; it can damage paint quickly—wipe spills immediately.
• ⚠️ Battery disconnect is not required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Lug wrench or 21mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 3/8" drive torque wrench (5–80 ft-lbs range)
• 🛠️ 1/2" drive torque wrench (50–150 ft-lbs range)
• 🛠️ 14mm socket
• 🛠️ 19mm socket
• 🛠️ 10mm combination wrench
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Large C-clamp
• 🛠️ Brake caliper piston tool (cube style) (specialty)
• 🛠️ Bungee cord or mechanics wire
• 🛠️ Small wire brush
• 🛠️ Brake cleaner spray
• 🛠️ Shop rags
• 🛠️ Disposable nitrile gloves
• 🛠️ Safety glasses
• 🛠️ Dust mask or respirator
• 🛠️ Rubber mallet
• 🛠️ Small wire or pick tool
• 🛠️ Allen key set

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧩 Front brake pad set - Qty: 1 (serves both front wheels)
• 🧩 Front brake rotors - Qty: 2 (replace in pairs)
• 🧩 Front brake hardware kit (pad clips/shims) - Qty: 1
• 🧩 Brake cleaner spray - Qty: 1–2 cans
• 🧩 High-temperature brake grease - Qty: 1 small tube
• 🧩 Anti-seize compound - Qty: 1 small tube
• 🧩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park the Rogue on level ground, shift to Park, set the parking brake and chock the rear wheels.
• Loosen the front wheel lug nuts slightly (about one turn) before lifting the vehicle.
• Identify the front jacking point under the front crossmember and the front side jack stand points on the pinch welds.
• Open the hood and locate the brake fluid reservoir; check level so you can watch it while pushing pistons back.
• Keep all new parts nearby but in their boxes or plastic until ready, to keep them clean.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and raise the Rogue

• Use the lug wrench or 21mm socket to loosen (not remove) the front wheel lug nuts about one turn each.
• Position the floor jack (3-ton) under the front center jacking point and raise the front until both wheels are off the ground.
• Place jack stands under the left and right front pinch weld jack points and gently lower the Rogue onto them using the floor jack.
• Give the vehicle a shake test on stands.

Step 2: Remove the front wheels

• Use the lug wrench or 21mm socket to remove all front wheel lug nuts and set them aside.
• Pull both front wheels straight off and place them under the vehicle off to the side for extra safety.

Step 3: Inspect the front brake setup

• Look at the front brake area: you’ll see the rotor (disc), the caliper (clamp), and the caliper bracket (holds the caliper in place).
• Note the brake hose routing and any clips or brackets; you’ll need to put everything back the same way.

Step 4: Remove caliper guide pin bolts

• On the back of the caliper, locate the two smaller slider (guide pin) bolts.
• Use a 14mm socket and 3/8" ratchet to loosen and remove the upper and lower caliper guide pin bolts.
• Carefully slide the caliper off the bracket and pads; if it’s stuck, gently pry with a flathead screwdriver at the edge.
• Hang the caliper with a bungee cord or mechanics wire from the spring or strut so there is no tension on the brake hose.

Step 5: Remove old pads and hardware

• Slide the old brake pads out of the caliper bracket by hand.
• Remove the metal pad clips from the bracket using a flathead screwdriver if needed.
• Note pad orientation: inner pad usually has a wear indicator tab; match that with the new pads later.

Step 6: Remove the caliper bracket

• Locate the two large caliper bracket bolts at the back of the steering knuckle.
• Use a 19mm socket and 1/2" drive ratchet to loosen and remove both caliper bracket bolts.
• Remove the caliper bracket and set it on a clean surface.
• Factory torque for reinstallation: 137 Nm (101 ft-lbs)

Step 7: Remove the old rotor

• If the rotor slides off easily, pull it straight off the hub.
• If it is stuck from rust, tap around the rotor hat (center area) with a rubber mallet until it loosens, then pull it off.
• Avoid hitting the wheel studs directly to prevent damage.

Step 8: Clean the hub surface

• Use a small wire brush to clean rust and debris from the wheel hub face where the rotor sits; this helps prevent brake pulsation.
• Spray a little brake cleaner on the hub and wipe with shop rags.
• Apply a very thin layer of anti-seize compound to the hub face, avoiding the wheel studs. Thin film is enough.

Step 9: Prepare and install the new rotor

• Spray both sides of the new rotor with brake cleaner to remove protective oil, then wipe dry with shop rags.
• Install the new rotor onto the hub, aligning the holes with the studs, and push it fully seated.
• Temporarily install one lug nut by hand using the lug wrench or 21mm socket to hold the rotor flat against the hub while you work.

Step 10: Service the caliper bracket and guide pins

• Use the small wire brush to clean the pad contact areas on the caliper bracket.
• Remove the caliper slide pins one at a time: pull out, wipe clean with shop rags, inspect rubber boots.
• Apply a thin coat of high-temperature brake grease to each pin and reinstall, making sure they slide smoothly.
• Install the new pad clips from the hardware kit into the bracket by hand; ensure they snap fully into place.

Step 11: Reinstall the caliper bracket

• Position the caliper bracket over the new rotor and align the bolt holes with the knuckle.
• Install the two bracket bolts by hand to avoid cross-threading.
• Use the 19mm socket and 1/2" drive ratchet to snug both bolts, then use the 1/2" drive torque wrench with 19mm socket to tighten to 137 Nm (101 ft-lbs).

Step 12: Install new brake pads

• Apply a very thin layer of high-temperature brake grease to the pad backing plates where they contact the clips (not on friction surfaces).
• Install the inner and outer pads into the caliper bracket; ensure the inner pad with wear indicator (if equipped) is on the inside, bottom edge as on the old pads.
• Make sure pads slide freely in the clips.

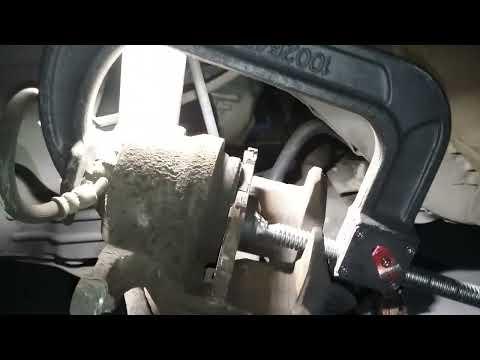

Step 13: Compress the caliper piston

• Check the brake fluid reservoir level; if it is very full, remove a small amount with a clean rag or syringe to avoid overflow.
• Place the old outer pad against the caliper piston face.
• Use a large C-clamp over the caliper body and old pad to slowly push the piston fully back into the caliper bore.
• Go slowly and watch the fluid reservoir to be sure it does not overflow.

Step 14: Reinstall the caliper over new pads

• Remove the C-clamp and old pad from the caliper.
• Position the caliper over the new pads and onto the caliper bracket, making sure the slide pin boots are aligned.
• Install the caliper guide pin bolts by hand to start the threads.
• Use the 14mm socket and 3/8" ratchet to snug both guide pin bolts.
• Use the 3/8" torque wrench with 14mm socket to tighten each guide pin bolt to 34 Nm (25 ft-lbs).

Step 15: Repeat on the other front side

• Repeat Steps 4–14 on the other front wheel.
• Ensure both sides have new rotors, pads, and hardware installed correctly.

Step 16: Reinstall front wheels

• Remove any temporary lug nut holding the rotor.
• Install each front wheel onto the hub and thread all lug nuts by hand.
• Use the lug wrench or 21mm socket to snug the lug nuts in a star pattern.

Step 17: Lower the Rogue and torque wheel lug nuts

• Use the floor jack to raise the vehicle slightly, remove the jack stands, and lower the Rogue fully to the ground.
• Use the 1/2" drive torque wrench with 21mm socket to tighten the lug nuts in a star pattern to 108 Nm (80 ft-lbs).

Step 18: Final checks and pedal pump

• Check the brake fluid reservoir and adjust to the correct level if needed using fresh brake fluid.
• With the engine off, slowly press the brake pedal several times until it feels firm; this seats the pads against the rotors.
• Look around both front calipers and hoses to ensure nothing is leaking or rubbing.

---

✅ After Repair

• Start the engine and gently press the brake pedal; it should feel firm and consistent.
• Perform a short test drive in a safe, low-traffic area: make several gentle stops from 30–40 km/h to bed in the pads.
• Avoid hard braking for the first 300–500 km to allow pads and rotors to bed properly.
• After the test drive, check for any abnormal noises, burning smells, or vibration, and recheck lug nut torque once the brakes are cool.

---

💰 DIY vs Shop Cost

Shop Cost: $400–$650 (parts + labor)

DIY Cost: $150–$280 (parts only)

You Save: $250–$370 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
