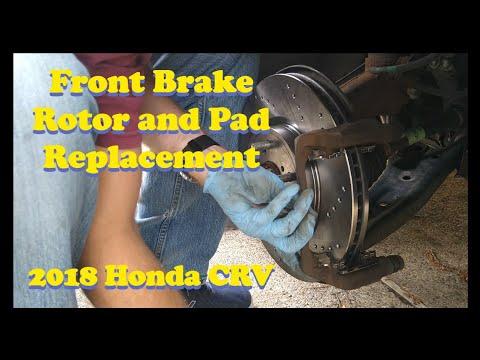

🔧 CR-V - Front Brake Pads & Rotors Replacement

You’ll remove the front wheels, unbolt the brake calipers and caliper brackets, swap the rotors, and install new pads on your CR-V. This restores braking power, reduces vibration, and prevents metal-on-metal damage.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the CR-V with jack stands. Never work under a vehicle held only by a jack.
• ⚠️ Wear safety glasses and mechanic gloves. Brake dust and rust can fall into your eyes and cut your hands.
• ⚠️ Do not press the brake pedal with a caliper removed. It can pop the piston out.
• ⚠️ Keep brake fluid off paint; it can damage painted surfaces.
• ⚠️ Work on a cool brake system. Hot rotors and calipers can burn you.
• ⚠️ Park on level ground, set the parking brake, and chock the rear wheels.
• Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum, Qty: 2)
• 🛠️ Wheel chocks
• 🛠️ Lug wrench (21mm) or 1/2" drive 21mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 1/2" drive ratchet
• 🛠️ 3/8" drive torque wrench (5-80 ft-lbs range)
• 🛠️ 1/2" drive torque wrench (30-150 ft-lbs range)
• 🛠️ 14mm socket
• 🛠️ 17mm socket
• 🛠️ 21mm socket
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Impact screwdriver with Phillips bit (specialty)
• 🛠️ C-clamp (6" or larger) or disc brake piston tool
• 🛠️ Wire brush (small)
• 🛠️ Bungee cord or metal wire hanger
• 🛠️ Brake cleaner spray
• 🛠️ Shop rags
• 🛠️ Mechanic gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake pad set - Qty: 1 (replace both sides)
• 🔩 Front brake rotors - Qty: 2 (replace in pairs)
• 🔩 Front brake hardware kit (pad clips/shims) - Qty: 1
• 🔩 Brake caliper slide pin grease (high-temp synthetic) - Qty: 1 small tube
• 🔩 Anti-squeal brake lubricant (for pad backs) - Qty: 1 small tube
• 🔩 Brake cleaner - Qty: 1-2 cans
• 🔩 New rotor set screws - Qty: 2 (optional but recommended)

---

📋 Before You Begin

• Park the CR-V on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen front wheel lug nuts 1/2 turn with the 21mm socket or lug wrench before lifting the vehicle.
• Gather all tools and parts so you don’t have to stop mid-job.
• Open the hood and locate the brake fluid reservoir so you can watch the level when pushing pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front of the CR-V

• Use the floor jack on the front center jacking point (under the subframe/crossmember) to lift the front of the CR-V.
• Place jack stands under the left and right front pinch welds or frame support points.
• Lower the vehicle gently onto the jack stands using the floor jack.
• Remove both front wheels using the 21mm socket.
• Give the CR-V a gentle shake to confirm stability.

Step 2: Inspect the brake setup

• Look at the caliper (clamp-shaped part) over the rotor (flat disc).
• Note the rubber boots over the caliper slide pins and where the pads sit in the bracket.
• Take a photo for reference before disassembly.

Step 3: Remove the caliper

• On the back of the caliper, locate the two slide pin bolts (top and bottom).
• Use a 14mm socket and 3/8" ratchet to loosen and remove both slide pin bolts.
• Carefully slide the caliper off the pads and rotor.
• Hang the caliper from the suspension spring using a bungee cord or wire hanger. Do not let it hang by the hose.

Step 4: Remove old pads and hardware

• Slide the old brake pads out of the bracket with your hands or a flathead screwdriver if stuck.
• Remove the metal pad clips (hardware) from the caliper bracket by prying gently with the flathead screwdriver.
• Pay attention to how the clips are oriented for correct reinstallation.

Step 5: Remove the caliper bracket

• Locate the two large caliper bracket bolts on the back of the steering knuckle.
• Use a 17mm socket with the 1/2" drive ratchet to loosen and remove these two bolts.
• Remove the caliper bracket from the rotor and set it on a clean surface.

Step 6: Remove the rotor

• Locate the small Phillips rotor set screw on the rotor face.
• Use the impact screwdriver with Phillips bit to loosen the rotor screw. Hit the impact driver with a hammer if needed.
• Remove the rotor screw and keep or discard if replacing.
• Pull the rotor off the hub. If stuck, tap the rotor hat (center area) with a hammer from the back side.
• Avoid hitting the wheel studs directly.

Step 7: Clean the hub and prepare new rotor

• Use the wire brush to clean rust and debris from the hub surface.
• Spray the new rotor with brake cleaner on both sides to remove protective oil; wipe with shop rags.
• Clean rotors prevent pad glazing and noise.

Step 8: Install the new rotor

• Place the new rotor onto the hub and align the screw hole.
• Install the rotor set screw by hand and then tighten it with the impact screwdriver with Phillips bit. A firm snug is enough, no official torque needed.
• Rotor should sit flat with no wobble.

Step 9: Service the caliper bracket and slide pins

• On the removed bracket, pull the caliper slide pins out one at a time by hand.
• Wipe old grease off the pins with shop rags.
• Apply a thin, even coat of caliper slide pin grease to each pin, then reinstall them into the bracket and make sure they slide smoothly.
• Use the wire brush to clean the pad contact areas on the bracket where the clips sit.

Step 10: Install new hardware and bracket

• Snap the new pad clips from your hardware kit into the caliper bracket by hand. Make sure they are fully seated and match the old orientation.
• Place the caliper bracket back over the rotor.
• Install the two caliper bracket bolts by hand, then tighten with the 17mm socket and 1/2" ratchet.
• Torque the caliper bracket bolts to 108 Nm (80 ft-lbs) using the 1/2" drive torque wrench.

Step 11: Install new brake pads

• Apply a very thin layer of anti-squeal brake lubricant to the metal backing plates of the new pads (not on friction material).
• Slide the new inner and outer pads into the caliper bracket clips by hand. Ensure the pad with the wear indicator (small metal tab) goes where the old one was (usually inner pad).
• Pads should move freely but not be loose.

Step 12: Compress the caliper piston

• Check the brake fluid level in the reservoir; if near the top, remove a small amount with a clean syringe or turkey baster so it doesn’t overflow.
• Place an old brake pad over the caliper piston face.
• Use a C-clamp or disc brake piston tool to slowly push the piston back into the caliper until it is fully seated.
• Go slowly to avoid damaging seals.

Step 13: Reinstall the caliper over new pads

• Remove the old pad from the caliper piston face.
• Position the caliper over the new pads and bracket.
• Align the slide pin bolt holes in the caliper with the slide pins.
• Install the two slide pin bolts by hand to avoid cross-threading.
• Tighten the slide pin bolts with the 14mm socket and 3/8" ratchet, then torque to 34 Nm (25 ft-lbs) using the 3/8" drive torque wrench.

Step 14: Repeat on the other side

• Repeat Steps 3–13 on the other front wheel.
• Always replace pads and rotors in pairs.

Step 15: Reinstall wheels and lower the CR-V

• Install each front wheel and hand-thread the lug nuts.
• Snug the lug nuts in a star pattern using the 21mm socket and 1/2" ratchet while the CR-V is still on jack stands.
• Use the floor jack to raise the CR-V slightly, remove the jack stands, then lower the vehicle to the ground.
• Torque the lug nuts in a star pattern to 127 Nm (94 ft-lbs) using the 1/2" drive torque wrench.

Step 16: Final checks

• Check the brake fluid level in the reservoir and top off if needed with the correct fluid type (usually DOT 3 or DOT 4 – confirm on the cap).
• With the engine off, slowly press the brake pedal several times until it becomes firm. This seats the pads against the rotors.
• Visually inspect around calipers and hoses for any leaks or loose components.

---

✅ After Repair

• Start the engine and press the brake pedal again to confirm a firm feel.
• Perform a short, low-speed test drive (20–40 km/h). Make several gentle stops to make sure the CR-V stops straight and there are no grinding noises or vibrations.
• Bed in (break in) the new pads and rotors: make 8–10 medium stops from about 50–60 km/h down to 10–15 km/h, allowing some cool-down time between stops. Avoid hard panic stops at first.
• After the test drive, recheck lug nut torque with the 21mm socket and torque wrench and look for any fresh leaks or unusual smells.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$550 (parts + labor)

DIY Cost: $150-$250 (parts only)

You Save: $200-$300 by doing it yourself!

Shop labor rates typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
