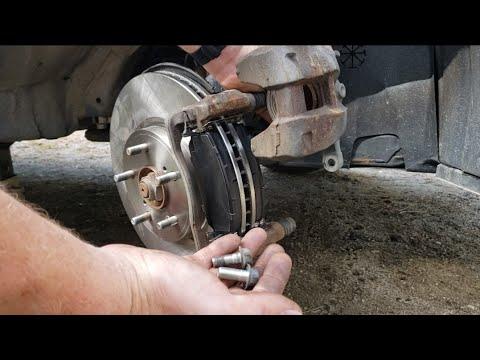

🔧 CR-V - Front Brake Pads & Rotors Replacement

You’ll be removing the front wheels, brake calipers, and caliper brackets to replace the front brake pads and rotors on your CR-V. This restores stopping power and helps prevent vibration or noise when braking.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the CR-V with jack stands, never rely on the floor jack alone.
• 🛑 Work on a flat, solid surface and chock the rear wheels so the vehicle cannot roll.
• 🛑 Brakes and nearby parts can get very hot; only work when everything is cool to the touch.
• 🛑 Wear safety glasses and mechanic gloves; brake dust and rust can fall into your eyes and onto your skin.
• 🛑 Do not press the brake pedal while a caliper is off the rotor; this can push the piston out.
• 🛑 Do not let the caliper hang by the brake hose; always support it with a hook or wire.
• 🛑 Battery disconnection is not required for front brake work on this CR-V.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, Qty: 2)
• Wheel chocks
• 19mm lug wrench
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench (5-75 ft-lbs range)
• 1/2" drive torque wrench (30-150 ft-lbs range)
• 14mm socket
• 17mm socket
• 19mm socket
• Short extension (3")
• Breaker bar 1/2" drive
• Impact driver (manual) (specialty)
• Phillips screwdriver bit for impact driver
• C-clamp 6" or disc brake piston compressor tool
• Bungee cord or wire hanger
• Flat-head screwdriver (medium)
• Wire brush (small, hand-held)
• Brake cleaner spray
• Shop rags
• Anti-seize compound
• High-temperature brake grease
• Plastic or rubber mallet
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set (left and right) - Qty: 1
• Front brake rotors - Qty: 2 (replace in pairs)
• Front pad hardware kit (pad clips/shims) - Qty: 1
• Brake cleaner (aerosol) - Qty: 1-2 cans
• High-temperature brake lubricant - Qty: 1 tube
• Anti-seize compound - Qty: 1 small tube
• Caliper bracket bolts (optional, one-time-use if corroded) - Qty: 4

---

📋 Before You Begin

• Park the CR-V on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen (do not remove) the front wheel lug nuts with the 19mm lug wrench while the CR-V is still on the ground.
• Gather all tools and parts so you are not searching mid-job.
• Open the hood and locate the brake fluid reservoir; ensure the level is not over the MAX line because pushing caliper pistons back will raise the fluid level.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the CR-V

• Use the floor jack at the front center jacking point (under the subframe crossmember) to raise the front of your CR-V.
• Place jack stands under the left and right front pinch welds or frame points, then slowly lower the CR-V onto the stands using the floor jack.
• Shake the vehicle slightly by hand to confirm it is stable on the stands.

Step 2: Remove the front wheels

• Use the 19mm socket and 1/2" drive ratchet (or breaker bar) to remove the lug nuts from the left front wheel.
• Remove the wheel and set it aside safely.
• Repeat for the right front wheel using the same 19mm socket.

Step 3: Inspect and prepare the caliper

• Turn the steering wheel to the left to give more access to the right front brake, and to the right for the left front brake as you work.
• Locate the brake caliper; it clamps over the rotor and holds the pads.
• Use a flat-head screwdriver to gently pry between the old outer brake pad and rotor to create a small gap; this slightly compresses the piston and makes removal easier.

Step 4: Remove the caliper (do not disconnect the hose)

• On the back of the caliper, locate the two slide pin bolts (top and bottom).
• Use a 14mm socket and 3/8" drive ratchet to loosen and remove both slide pin bolts.
• Carefully slide the caliper off the bracket and rotor; if it sticks, wiggle gently by hand.
• Support the caliper with a bungee cord or wire hanger from the suspension spring so it does not hang by the brake hose.

Step 5: Remove the old pads and hardware

• Pull the inner and outer brake pads out of the caliper bracket by hand.
• Remove the metal pad clips (hardware) from the bracket using a flat-head screwdriver if needed.
• Use a wire brush to clean the surfaces of the caliper bracket where the clips sit, removing rust and debris.

Step 6: Remove the caliper bracket

• Locate the two larger caliper bracket bolts on the back of the steering knuckle.
• Use a 17mm socket and 1/2" drive breaker bar to loosen these bolts; they may be tight.
• Remove both bolts and take off the caliper bracket.

Step 7: Remove the rotor

• If equipped, locate the small rotor retaining screw on the face of the rotor.
• Use the impact driver (manual) with a Phillips bit to loosen and remove the rotor screw. Hit the impact driver with a hammer to break it free.
• Pull the rotor off the hub by hand. If it is stuck due to rust, tap around the rotor hat with a plastic or rubber mallet until it loosens.
• Use a wire brush to clean the wheel hub surface where the rotor sits.

Step 8: Install the new rotor

• Spray the new rotor with brake cleaner to remove any protective oil, then wipe with shop rags.
• Apply a thin film of anti-seize compound to the hub face using a rag (avoid studs and rotor friction surfaces).
• Place the new rotor onto the hub, aligning the screw hole if equipped.
• Reinstall the rotor retaining screw using the impact driver and Phillips bit. Snug it; it only holds the rotor in place, no torque spec needed.

Step 9: Reinstall the caliper bracket

• Position the caliper bracket over the new rotor and align the bolt holes.
• Install the two caliper bracket bolts by hand to avoid cross-threading.
• Use the 17mm socket and 1/2" drive ratchet to tighten both bolts.
• Then use the 1/2" drive torque wrench with the 17mm socket to tighten the caliper bracket bolts to 108 Nm (80 ft-lbs).

Step 10: Install new pad hardware and pads

• Clip the new pad hardware (metal clips) into the caliper bracket by hand; ensure they sit fully and evenly.
• Apply a thin layer of high-temperature brake grease to the areas of the clips where the pads will slide. Use very small amounts.
• Install the new inner and outer brake pads into the bracket by hand, making sure the friction material faces the rotor.

Step 11: Compress the caliper piston

• Place an old brake pad over the caliper piston face.
• Use a C-clamp or disc brake piston compressor tool to slowly push the piston back into the caliper. Tighten the tool slowly until the piston is fully seated and flush in the caliper.
• Check the brake fluid reservoir under the hood during this process; if the level gets close to the MAX line, remove some fluid with a clean rag or syringe.

Step 12: Reinstall the caliper over new pads

• Slide the caliper back over the new pads and onto the caliper bracket.
• Align the caliper slide pin holes with the bracket.
• Install the two slide pin bolts by hand.
• Use the 14mm socket and 3/8" drive ratchet to snug them, then use the 3/8" drive torque wrench with the 14mm socket to tighten the caliper slide pin bolts to 34 Nm (25 ft-lbs).

Step 13: Repeat on the other front side

• Repeat Steps 3 through 12 on the other front wheel using the same tools and torque specs.

Step 14: Reinstall wheels and lower the CR-V

• Place the wheel back on the hub and hand-thread all lug nuts.
• Use the 19mm socket and 1/2" drive ratchet to snug the lug nuts in a star pattern while the CR-V is still on jack stands.
• Use the floor jack to raise the CR-V slightly, remove the jack stands, then lower the CR-V to the ground.
• Use the 1/2" drive torque wrench with the 19mm socket to tighten the wheel lug nuts to 127 Nm (94 ft-lbs) in a star pattern.

Step 15: Pump the brake pedal and check fluid

• With the engine off, slowly press the brake pedal several times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid reservoir and make sure the level is between MIN and MAX. Adjust if needed.

---

✅ After Repair

• Start the engine and gently press the brake pedal; ensure it feels firm and does not sink to the floor.
• Before driving at speed, move the CR-V slowly in a safe area and test the brakes several times.
• Listen for grinding or loud noises; if you hear anything abnormal, stop and recheck your work.
• Bed in the new pads and rotors: make 5-8 gentle stops from about 30-40 km/h to 10 km/h, allowing some cool-down time between stops. Avoid hard braking at first.
• After your test drive, recheck the lug nut torque with the 19mm socket and torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $400-$650 (parts + labor)

DIY Cost: $150-$280 (parts only)

You Save: $250-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
