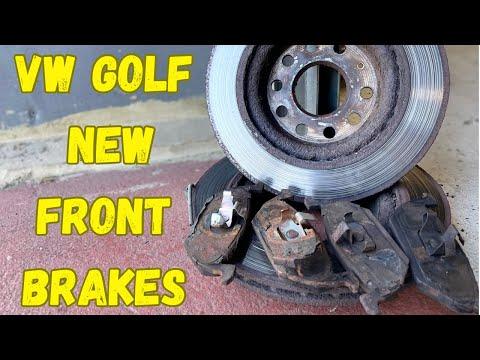

🔧 Front Brakes & Rotors - Replacement

Replacing the front brake pads and rotors restores stopping power and removes pulsation, squeal, and uneven wear. On your Golf, the job is straightforward, but you need to compress the caliper piston correctly and torque everything precisely.

Difficulty Level: Beginner | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on a level surface and chock the rear wheels.
• Use jack stands. Never rely on the floor jack alone.
• Do not press the brake pedal with a caliper removed.
• Brake parts and rotors can be hot if the car was just driven.
• Use brake cleaner only in a well-ventilated area.
• If your car has a pad wear sensor on the left front pad, unplug it before removing the pad.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 17mm socket
• 13mm socket
• 21mm socket
• Ratchet
• Breaker bar
• Torque wrench
• C-clamp or brake caliper piston tool
• Bungee cord or mechanic's wire
• Flat-blade screwdriver
• Wire brush
• Brake cleaner
• Bra​ke grease
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1 set
• Front brake rotors - Replace in pairs - Qty: 2
• Brake pad wear sensor - Qty: 1 if equipped
• Brake cleaner - Qty: 1 can
• Brake grease - Qty: 1 tube

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Keep the transmission in gear since your Golf is manual.
• Loosen the front wheel bolts before lifting the car.
• Use a scan tool only if the brake wear warning light stays on after repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheel bolts

• Use a 21mm socket and breaker bar to loosen the front wheel bolts while the car is still on the ground.
• Do not remove them yet.

Step 2: Lift and support the car

• Use the floor jack to raise the front of the car at the proper lift point.
• Place jack stands under the front support points and lower the car onto them.
• Remove the front wheels with the 21mm socket.

Step 3: Remove the caliper

• Turn the steering wheel for better access if needed.
• Use the 13mm socket to remove the caliper guide pins.
• Lift the caliper off the bracket.
• Hang the caliper with a bungee cord or mechanic's wire. Never let it hang by the hose.

Step 4: Remove the brake pads

• Slide the old pads out of the caliper bracket.
• If equipped, disconnect the pad wear sensor from the left front pad.
• Remove the pad clips from the bracket.

Step 5: Remove the caliper bracket

• Use the 21mm socket to remove the caliper bracket bolts.
• Remove the bracket from the knuckle.
• Torque on reinstall: 90 Nm (66 ft-lbs) plus 90°.

Step 6: Remove the rotor

• Use a flat-blade screwdriver to remove the small rotor retaining screw.
• Pull the rotor off the hub.
• If it is stuck, tap the rotor hat lightly with a rubber mallet.

Step 7: Clean the hub and install the new rotor

• Use a wire brush to clean rust and debris from the hub face.
• Spray the hub and new rotor friction surfaces with brake cleaner.
• Install the new rotor and the retaining screw.
• Torque the rotor screw to 4 Nm (35 in-lbs).

Step 8: Install the caliper bracket and pads

• Reinstall the caliper bracket using the 21mm socket.
• Torque the bracket bolts to 90 Nm (66 ft-lbs) plus 90°.
• Install the new pad clips and pads.
• Apply a thin layer of brake grease to the pad contact points and slide surfaces. Keep grease off friction surfaces.

Step 9: Compress the caliper piston and reinstall the caliper

• Use a C-clamp or brake caliper piston tool to slowly push the piston back into the caliper.
• Make sure the brake fluid reservoir does not overflow.
• Reinstall the caliper over the new pads.
• Use the 13mm socket to install the guide pins.
• Torque the guide pins to 35 Nm (26 ft-lbs).

Step 10: Reinstall the wheels

• Put the wheels back on and start the wheel bolts by hand.
• Lower the car to the ground.
• Use the 21mm socket and torque wrench to tighten the wheel bolts.
• Torque the wheel bolts to 120 Nm (89 ft-lbs).

Step 11: Pump the brake pedal

• Before moving the car, pump the brake pedal several times until it feels firm.
• This seats the caliper piston against the new pads.

---

✅ After Repair

• Check the brake fluid level and top off if needed.
• Look for leaks around both front calipers.
• Test the brakes at low speed first.
• Listen for unusual noises and verify the pedal feels firm.
• For the first 200 miles, avoid hard stops unless needed for safety.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
