🔧 Outlander Sport - Front Brake Pads & Rotor Replacement

You’ll be removing the front calipers, swapping the brake pads, and replacing the front rotors. Worn pads or warped rotors can cause noise, vibration, longer stopping distance, and uneven braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Stock front brakes; torque specs can vary slightly by brake package.

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the Outlander Sport with jack stands—never rely on a jack alone.
• ⚠️ Brake dust is harmful—avoid blowing it with compressed air; use brake cleaner instead.
• ⚠️ Do not let the caliper hang by the brake hose—support it with a hook.
• ⚠️ Brake fluid damages paint—wipe spills immediately.
• ⚠️ Keep grease off pad/rotor friction surfaces.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• 14mm socket
• 17mm socket
• Ratchet (3/8" drive)
• 3/8" drive torque wrench (10-80 ft-lbs range)
• Needle-nose pliers
• Flat trim/pry tool
• Wire brush
• Brake caliper piston compressor tool (specialty)
• Bungee cord or caliper hook
• Hammer (16 oz)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware kit (abutment clips) - Qty: 1
• Brake caliper slide pin boots (if torn) - Qty: 1
• Brake grease (silicone-based) - Qty: 1
• Brake cleaner spray - Qty: 2
• DOT 3 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, leave the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front wheel lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; check the level now. When you push the caliper pistons back in, the level can rise.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front at the correct jack point using a floor jack.
• Set the vehicle onto jack stands and give it a gentle shake to confirm it’s stable.
• Remove both front wheels using a 21mm socket and ratchet.

Step 2: Remove the caliper (do not stretch the hose)

• Turn the steering wheel to give yourself room to work on the side you’re doing first.
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet.
• Lift the caliper off the bracket. If it’s tight, gently pry with a flat trim/pry tool.
• Hang the caliper from the suspension spring using a bungee cord or caliper hook.
• Slide pins are the bolts the caliper “slides” on.

Step 3: Remove old pads and inspect slide pins

• Remove the pads from the bracket by hand. Use needle-nose pliers if needed.
• Pull the slide pins out one at a time, wipe them clean, and check the rubber boots for tears.
• Apply a thin coat of brake grease (silicone-based) to the smooth part of each slide pin, then reinstall them.
• Brake grease prevents squeaks and sticking.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and breaker bar.
• Set the bracket aside.
• During reassembly, Torque to 98 Nm (72 ft-lbs) for the bracket bolts.

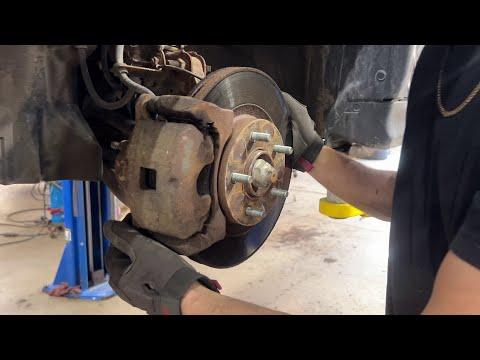

Step 5: Remove the rotor

• If the rotor is stuck from rust, spray the hub area with brake cleaner spray.
• Tap the rotor “hat” (the raised center area) with a hammer (16 oz) to break it free. Do not hit the wheel studs.
• Remove the rotor.

Step 6: Clean and prep the hub surface

• Use a wire brush to clean rust off the hub face (where the rotor sits flat).
• Spray the area with brake cleaner spray and wipe clean.
• A clean hub helps prevent brake pulsation.

Step 7: Install the new rotor

• Clean both sides of the new rotor using brake cleaner spray to remove shipping oil.
• Install the rotor onto the hub.
• Temporarily hold the rotor in place by threading on one lug nut by hand (use the 21mm socket only to snug lightly).

Step 8: Install new hardware clips and pads

• Remove the old abutment clips from the bracket using needle-nose pliers.
• Install the new clips from the front brake hardware kit.
• Apply a very thin film of brake grease (silicone-based) on the pad “ears” where they slide on the clips (not on the pad friction material).
• Install the new pads into the bracket.
• Abutment clips are the pad “rails.”

Step 9: Compress the caliper piston

• Remove the temporary lug nut holding the rotor (if installed).
• Before compressing, check the brake fluid reservoir under the hood; if it’s near “MAX,” remove a small amount (do not overflow later).
• Use a brake caliper piston compressor tool (specialty) to slowly push the piston back until it’s fully seated.
• If you feel strong resistance, stop and re-check that the piston is going straight.
• The piston compressor pushes the piston in evenly.

Step 10: Reinstall caliper and torque fasteners

• Reinstall the caliper bracket over the rotor using a 17mm socket and torque wrench.
• Torque to 98 Nm (72 ft-lbs) for the bracket bolts.
• Place the caliper over the new pads and install the slide pin bolts using a 14mm socket and torque wrench.
• Torque to 30 Nm (22 ft-lbs) for the caliper slide pin bolts.

Step 11: Reinstall wheels and lower the vehicle

• Reinstall both front wheels and hand-thread all lug nuts.
• Lower the vehicle off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench.
• Torque to 108 Nm (80 ft-lbs) for the lug nuts.

---

✅ After Repair

• With the engine OFF, slowly pump the brake pedal 10-15 times until it feels firm. This seats the pistons against the new pads.
• Check the brake fluid level and top off with DOT 3 brake fluid if needed.
• Start the engine and confirm the pedal stays firm.
• Test drive at low speed first. Listen for grinding, clunking, or pulling.
• Pad bedding (break-in): make 6-10 moderate stops from 30 mph down to 5 mph, with 30-60 seconds of driving between stops to cool the brakes. Avoid hard stops for the first 200 miles.
• Re-check lug nut torque after 25-50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
