🔧 Sedona - Front Brake Pads & Rotors Replacement

You’ll remove the front wheels, take off the brake caliper and bracket, replace the rotors, then install new brake pads. This restores braking performance, reduces vibration/pulsation, and prevents metal-to-metal damage.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: torque specs can vary by build; verify in Kia service info.

---

⚠️ Safety & Precautions

• ⚠️ Support the van on jack stands, not the jack.
• ⚠️ Chock the rear wheels so it cannot roll.
• ⚠️ Brake dust is harmful—wear a mask and avoid blowing with air.
• ⚠️ Do not let the caliper hang by the brake hose—support it with a hook.
• ⚠️ Watch the brake fluid level when compressing the piston; it can overflow.
• ⚠️ Keep grease off pad/rotor friction surfaces; use brake cleaner if contaminated.
• ⚠️ Battery disconnect is not required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 ft-lbs range)
• 14mm socket
• 17mm socket
• 6" socket extension
• Flathead screwdriver
• C-clamp (6") or disc brake piston compressor tool (specialty)
• Wire brush
• Rubber mallet
• Bungee cord or caliper hook
• Brake cleaner spray
• Shop rags
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• Brake parts cleaner - Qty: 1
• Brake fluid (DOT 3 / DOT 4 as specified on cap) - Qty: 1

---

📋 Before You Begin

• 🧰 Park on level ground and set the parking brake.
• 🧰 Put wheel chocks behind both rear tires.
• 🧰 Slightly loosen the front lug nuts using a lug wrench or 21mm socket before lifting.
• 🧰 Open the hood and check the brake fluid reservoir level; if it’s near “MAX,” be ready to remove a little with a clean rag if it starts to overflow.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift at the proper front jacking point.
• Set the van onto jack stands and confirm it’s stable.
• Remove the front wheels using a lug wrench or 21mm socket.

Step 2: Locate the caliper and inspect

• Turn the steering knuckle as needed for access (hand-push the tire area/knuckle; no engine running).
• Look for torn boots, leaking fluid, or heavily rusted brake lines.
• Take a photo before disassembly.

Step 3: Remove the brake caliper (the clamp that squeezes the pads)

• Remove the caliper slide bolts using a 14mm socket and 3/8" ratchet.
• Carefully lift the caliper off the pads.
• Hang the caliper from the suspension spring using a bungee cord or caliper hook.

Step 4: Remove the caliper bracket (the pad carrier)

• Remove the bracket bolts using a 17mm socket with a breaker bar.
• Set the bracket aside on a clean rag.
• Torque to factory specification on reassembly (verify spec for front bracket bolts).

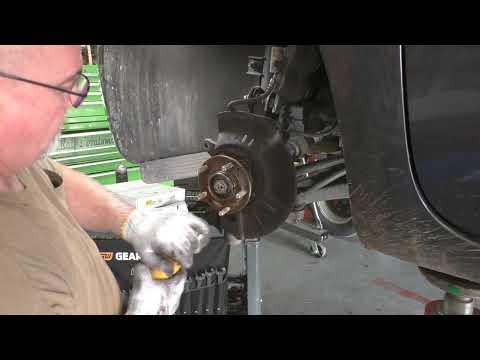

Step 5: Remove the old rotor

• If the rotor is stuck, tap around the rotor “hat” using a rubber mallet.
• Clean the hub face with a wire brush so the new rotor sits flat.
• A dirty hub can cause rotor vibration.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner spray and wipe with shop rags (removes anti-rust oil).
• Place the rotor on the hub.
• Temporarily hold it in place with 1-2 lug nuts hand-tight (use the old lug nuts by hand only).

Step 7: Service the bracket and install new hardware clips

• Remove old pad clips from the bracket using a flathead screwdriver.
• Clean the pad contact areas with brake cleaner spray and a wire brush.
• Install the new clips from the hardware kit (they snap into the bracket).
• Apply a thin film of brake caliper slide pin grease (silicone) where the pads slide on the clips (not on rotor surface).

Step 8: Reinstall the caliper bracket

• Install the bracket bolts by hand first to avoid cross-threading.
• Tighten with a 17mm socket and torque wrench.
• Torque to factory specification (verify spec for front bracket bolts).

Step 9: Compress the caliper piston

• Remove the brake fluid reservoir cap (loosens pressure).
• Place an old pad against the piston face, then compress using a C-clamp (6") or disc brake piston compressor tool (specialty).
• Go slowly and watch the reservoir level so it doesn’t overflow.
• Slow compression helps prevent seal damage.

Step 10: Install the new pads

• Install the new inner/outer pads into the bracket (they should slide smoothly).
• If your pad set includes wear indicators, match their position to the kit instructions.

Step 11: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the slide bolts using a 14mm socket and torque wrench.
• Torque to factory specification (verify spec for front caliper slide bolts).

Step 12: Repeat on the other front side

• Repeat Steps 3–11 on the other front wheel.
• Always replace pads/rotors in pairs.

Step 13: Reinstall wheels and lower the van

• Reinstall wheels and hand-tighten lug nuts.
• Lower the van using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to factory specification (verify spec for Sedona wheel lug nuts).

---

✅ After Repair

• ✅ Pump the brake pedal 10–15 times before moving the van until it feels firm.
• ✅ Check brake fluid level and top off with DOT 3 / DOT 4 as specified on cap if needed.
• ✅ With engine running, hold firm pedal pressure for 15 seconds; confirm it doesn’t slowly sink.
• ✅ Test drive at low speed first; verify no pulling, grinding, or warning lights.
• ✅ Bed-in (break-in) new pads: make 6–10 moderate stops from ~50 km/h to ~15 km/h, allowing short cool-down between stops. Avoid hard stops for the first ~200 km.

---
