🔧 Tahoe - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, swap the brake pads, and replace the front rotors. This restores safe stopping power and fixes pulsation/shaking caused by warped or worn rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Tahoe with jack stands—never rely on a floor jack alone.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brake dust is unhealthy—use brake cleaner, not compressed air.
• ⚠️ Brake fluid can damage paint—wipe spills immediately.
• ⚠️ If the brake fluid reservoir gets too full when compressing pistons, remove some with a fluid suction tool.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 13mm socket
• 18mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (30–300 Nm range)
• C-clamp (6" minimum)
• Small wire brush
• Bungee cord
• Flathead screwdriver
• Dead-blow hammer
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Brake pad hardware kit (clips/shims) - Qty: 1
• Brake cleaner - Qty: 2 cans
• High-temperature silicone brake grease - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, put the transmission in PARK, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• Open the hood and remove the brake fluid reservoir cap. (This lets fluid move back as you compress the pistons.)

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Lift the front using a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the frame down onto jack stands (rated 3-ton minimum).
• Give the Tahoe a firm push to confirm it’s stable.

Step 2: Remove the front wheels

• Remove lug nuts with a 21mm socket and ratchet.
• Remove both front wheels and set them aside.

Step 3: Remove the brake caliper (the part that squeezes the pads)

• Turn the steering wheel to give yourself working room.
• Remove the 2 caliper guide bolts using a 13mm socket and ratchet.
• Lift the caliper off the rotor.
• Hang the caliper from the suspension with a bungee cord (do not let it hang by the brake hose).
• Hanging by the hose can damage it.

Step 4: Remove the old brake pads and hardware

• Slide the old pads out by hand. If stuck, use a flathead screwdriver gently.
• Remove the stainless pad clips from the caliper bracket (these are the “hardware”).

Step 5: Remove the caliper bracket

• Remove the 2 caliper bracket bolts using an 18mm socket and a breaker bar.
• Set the bracket aside.
• Later on reassembly: Torque to 300 Nm (221 ft-lbs).

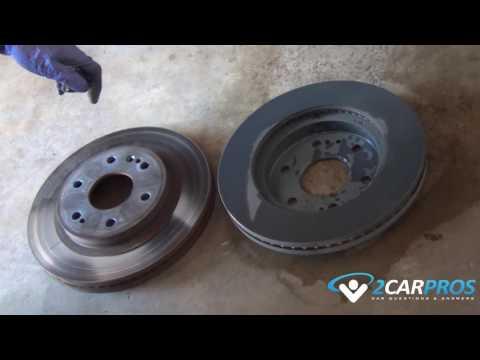

Step 6: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck from rust, tap the rotor “hat” area with a dead-blow hammer until it breaks free.
• Clean the hub face with a small wire brush so the new rotor sits perfectly flat.
• A clean hub helps prevent brake pulsation.

Step 7: Install the new rotor

• Spray both sides of the new rotor with brake cleaner to remove shipping oil.
• Install the rotor onto the hub.
• To hold it in place, thread on one lug nut backward by hand (temporary).

Step 8: Service the caliper bracket and slide pins

• Pull the slide pins out of the bracket by hand. (Slide pins are the small rods the caliper moves on.)
• Wipe old grease off and apply a thin coat of high-temperature silicone brake grease.
• Install new pad hardware clips into the bracket.
• Apply a very thin film of high-temperature silicone brake grease where the pad “ears” touch the clips.
• Keep grease off pad friction material.

Step 9: Reinstall the caliper bracket

• Position the bracket over the new rotor.
• Install bracket bolts by hand first, then tighten using an 18mm socket and ratchet.
• Torque to 300 Nm (221 ft-lbs) using a torque wrench (30–300 Nm range).

Step 10: Compress the caliper piston

• Place an old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir level as you compress; remove fluid if it’s close to overflowing.

Step 11: Install the new pads and reinstall the caliper

• Install the inner and outer pads into the bracket.
• Slide the caliper over the new pads/rotor.
• Install the 2 caliper guide bolts using a 13mm socket and ratchet.
• Torque to 100 Nm (74 ft-lbs) using a torque wrench (30–300 Nm range).

Step 12: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the Tahoe off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench (30–300 Nm range).
• Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10–15 times until it feels firm. (This seats the pads against the rotors.)
• Check brake fluid level and reinstall the reservoir cap.
• Start the engine and hold the brake pedal; confirm it stays firm and doesn’t sink.
• Test-drive at low speed first and confirm normal stopping and no pulling/noises.
• Bed-in (break-in) the pads: make 8–10 medium stops from 40 mph down to 10 mph, with 20–30 seconds between stops to cool slightly.
• Re-check lug nut torque after 50–100 miles using a 21mm socket and torque wrench.

---
