🔧 Front Brake Pads and Rotors - Replacement

Front brake pad and rotor replacement on your Prius restores braking performance and helps remove vibration, squealing, or pulsing from worn parts. Since this is a hybrid, the front brakes may wear slower than on a normal gas car, but the service procedure is still straightforward if you work carefully.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work on a flat surface and chock the rear wheels before lifting the front.
• Use jack stands; never rely on the floor jack alone.
• The hybrid system can start the engine unexpectedly. Keep the key fob away from the vehicle while working.
• Brake dust can be harmful. Do not blow it off with compressed air.
• Do not press the brake pedal with a caliper removed.
• No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• 21mm lug wrench or socket
• 14mm socket
• 17mm socket
• 6mm hex bit socket
• Ratchet
• Breaker bar
• Torque wrench
• C-clamp or brake caliper compression tool (specialty)
• Bungee cord or hook
• Flat-blade screwdriver
• Wire brush
• Brake cleaner
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotor set - Qty: 1 pair
• Brake hardware kit - Qty: 1 set
• Brake cleaner - Qty: 1 can

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front lug nuts slightly before lifting.
• Keep the key fob away from the Prius so the system does not wake up.
• If the rotors are stuck to the hub, be ready to tap them free gently.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use the floor jack to raise the front of the vehicle at the proper front jacking point.
• Place jack stands under the front support points and lower the vehicle onto them.
• Remove both front wheels with the 21mm lug wrench or socket.

Step 2: Remove the caliper

• Use the 14mm socket and ratchet to remove the caliper slide bolts.
• Lift the caliper off the bracket and support it with a bungee cord or hook.
• Do not let the caliper hang by the brake hose.

Step 3: Remove the brake pads and bracket

• Slide the old brake pads out of the bracket.
• Use the 14mm socket and breaker bar if needed to remove the caliper bracket bolts.
• Remove the caliper bracket from the knuckle.

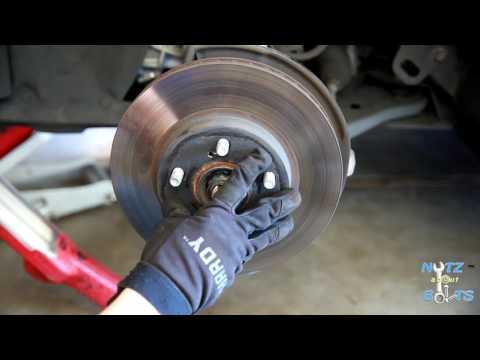

Step 4: Remove the rotor

• If the rotor is retained by a small screw, use the Phillips screwdriver or 6mm hex bit socket as needed to remove it.
• Pull the rotor off the hub.
• If it is stuck, tap the rotor hat with a rubber mallet or strike it from the back side evenly.

Step 5: Clean and prep the hub

• Use a wire brush to clean rust from the hub face.
• Spray the hub and bracket with brake cleaner and wipe dry with shop towels.
• A clean hub helps prevent rotor wobble.

Step 6: Install the new rotor

• Install the new rotor onto the hub.
• Reinstall the rotor retaining screw if equipped and tighten snugly with the correct Phillips screwdriver or 6mm hex bit socket.

Step 7: Reinstall the caliper bracket and pads

• Install the caliper bracket using the 14mm socket.
• Torque to 105 Nm (77 ft-lbs).
• Install the new pad hardware and new brake pads.
• If the new pads include shims, install them exactly as supplied.

Step 8: Compress the caliper piston

• Use a C-clamp or brake caliper compression tool (specialty) to push the piston back slowly.
• Make sure the old inner pad or a flat block is used to protect the piston face.
• Compress the piston slowly and evenly.

Step 9: Reinstall the caliper

• Set the caliper over the new pads.
• Install the slide bolts with the 14mm socket.
• Torque to 34 Nm (25 ft-lbs).

Step 10: Reinstall the wheel

• Put the wheel back on and start the lug nuts by hand.
• Use the 21mm lug wrench or socket to snug them in a star pattern.
• Lower the vehicle, then torque the lug nuts to 103 Nm (76 ft-lbs).

---

✅ After Repair

• Press the brake pedal several times before moving the vehicle.
• Check the brake fluid level in the reservoir.
• Test drive at low speed first and confirm the pedal feels firm.
• Listen for rubbing or clicking, and recheck lug nut torque after driving.
• For the first 200 miles, avoid hard braking to help seat the new pads and rotors.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
