🔧 Crosstrek - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the front calipers and brackets, replace the rotors, then install new brake pads. This restores braking performance and prevents noise, vibration, and longer stopping distances caused by worn pads or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Crosstrek on jack stands—never rely on a floor jack alone.
• 🛑 Wear safety glasses and a dust mask; brake dust is harmful—use brake cleaner, not compressed air.
• 🛑 Do not press the brake pedal while the caliper is off the rotor.
• 🛑 Keep brake fluid off paint; it can damage finishes.
• 🛑 Battery disconnect is not required for front brakes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (10–200 N·m range)
• Flathead screwdriver
• C-clamp (6")
• Bungee cord
• Wire brush
• M8 x 1.25 bolts (25–35mm long)
• Brake cleaner spray
• Drain pan
• Nitrile gloves
• Safety glasses
• Dust mask

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• 🧱 Park on level ground, shift to P, and set the parking brake.
• 🪵 Place wheel chocks behind the rear wheels.
• 🧰 Loosen front lug nuts 1/2 turn using a 21mm socket and breaker bar before lifting.
• 🧴 Open the hood and check the brake fluid level; if it’s near “MAX,” remove a little with a clean syringe/turkey baster (to prevent overflow when compressing pistons).
• 📝 Assumption: Your Crosstrek uses the common front sliding caliper setup (typical for this model).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

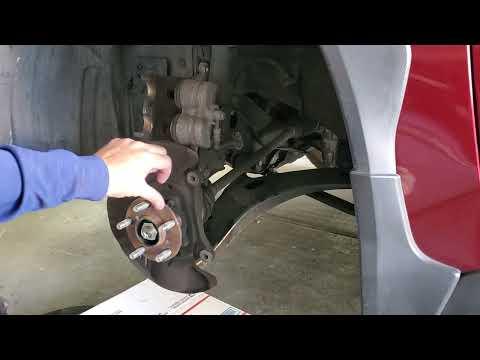

Step 1: Lift and remove the front wheels

• Use a floor jack to lift the front and place the vehicle on jack stands at the proper lift points.
• Remove the lug nuts using a 21mm socket and ratchet, then remove both front wheels.

Step 2: Remove the front caliper (do not hang it by the hose)

• Turn the steering wheel to give yourself room (left for right side work, right for left side work).
• Remove the 2 caliper slide bolts using a 14mm socket and ratchet.
• Lift the caliper off the rotor. Use a bungee cord (an elastic hook strap) to support the caliper from the strut spring.

Step 3: Remove the old pads and hardware clips

• Pull the brake pads out of the bracket by hand. If stuck, gently pry with a flathead screwdriver.
• Remove the stainless pad hardware clips from the bracket (note their positions).

Step 4: Remove the caliper bracket

• Remove the 2 caliper bracket bolts using a 17mm socket and breaker bar.
• Set the bracket on the ground or hang it securely—don’t strain the brake hose.
• On reassembly: Torque to 80 N·m (59 ft-lbs).

Step 5: Remove the rotor

• If the rotor is stuck, thread two M8 x 1.25 bolts into the rotor’s extraction holes and tighten evenly with a ratchet until the rotor pops free.
• Remove the rotor from the hub.

Step 6: Clean the hub face (prevents rotor wobble)

• Use a wire brush to clean rust from the hub face.
• Spray the area with brake cleaner spray and catch runoff in a drain pan.
• Clean hub = less vibration later.

Step 7: Install the new rotor

• Spray both sides of the new rotor with brake cleaner spray to remove protective oil.
• Install the rotor onto the hub. To keep it from flopping while you work, thread a lug nut on by hand (use your wheel as a temporary “clamp” if needed).

Step 8: Service the slide pins (critical for even braking)

• Pull the slide pins out of the bracket by hand.
• Wipe them clean, then apply a thin coat of brake caliper grease (silicone).
• Reinstall the pins and make sure they move smoothly.

Step 9: Install new pad hardware clips and pads

• Install the new hardware clips onto the bracket.
• Apply a very thin film of brake caliper grease (silicone) where the pad “ears” slide on the clips (keep grease off pad friction material and rotor).
• Install the new pads into the bracket.

Step 10: Reinstall the bracket

• Position the bracket over the new rotor and start the bolts by hand.
• Tighten using a 17mm socket and ratchet, then final-tighten with a torque wrench (a tool that tightens to an exact spec).
• Torque to 80 N·m (59 ft-lbs).

Step 11: Compress the caliper piston

• Place an old brake pad against the piston face (to protect it).
• Use a C-clamp (6") to slowly push the piston fully back into the caliper.
• Check the brake fluid reservoir while compressing; if it rises too high, remove some fluid.

Step 12: Reinstall the caliper

• Set the caliper over the new pads/rotor.
• Install the 2 slide bolts using a 14mm socket and ratchet, then final-tighten with a torque wrench.
• Torque to 27 N·m (20 ft-lbs).

Step 13: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the vehicle to the ground using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 120 N·m (88.5 ft-lbs).

---

✅ After Repair

• 🦶 With the engine off, pump the brake pedal 10–15 times until it feels firm (this seats the pads).
• 🧴 Check brake fluid level and top off with DOT 3 if needed.
• 🔍 Test for leaks and make sure the wheels spin freely with only light pad drag.
• 🛣️ Bed-in the pads: do 8–10 medium stops from ~40 to ~10 mph, allowing 30–60 seconds between stops. Avoid hard stops for the first 200 miles.
• 🔊 If you hear grinding or the pedal feels spongy, stop driving and recheck your work.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
