🔧 Camry - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the calipers, replace the pads and rotors, then reassemble with correct torque and a proper pad “bed-in.” New rotors are recommended whenever pads are worn unevenly, rotors are grooved, or you feel vibration while braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands; never rely on a jack alone.
• 🧤 Wear safety glasses and mechanic gloves; brake dust is irritating.
• 🔥 Brakes can be extremely hot; let the front brakes cool before starting.
• ⚡ Hybrid note: you’re working on the friction brakes (not high-voltage parts), but keep tools away from any orange high-voltage wiring and do not probe HV connectors.
• 🚫 Do not let the brake caliper hang by the brake hose; support it with a hanger.
• 🧪 If brake fluid is near “MAX,” pushing pistons back can overflow the reservoir—check level first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-150 ft-lbs range)
• 14mm socket
• 17mm socket
• Flathead screwdriver
• C-clamp brake piston compressor
• Brake caliper hanger hook
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Drain pan
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit (clips/shims) - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• Brake parts cleaner - Qty: 1
• DOT 3 brake fluid - Qty: 1 bottle

---

📋 Before You Begin

• Park on a flat surface, shift to P, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. Check the level; if it’s very full, remove a small amount with a clean towel (do not contaminate the fluid).
• Loosen the front lug nuts 1/2 turn with a 21mm socket and breaker bar before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack to lift the front at the proper center lift point, then set the car onto jack stands at the pinch welds.
• Remove the front wheels using a 21mm socket and ratchet.

Step 2: Remove the brake caliper (do not stretch the hose)

• Turn the steering wheel to give yourself more space at the side you’re working on.
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet.
• Lift the caliper off the bracket and hang it with a brake caliper hanger hook.
• Slide pins are the caliper’s moving bolts.

Step 3: Remove the old pads and hardware

• Pull the pads out of the bracket by hand. If stuck, gently pry with a flathead screwdriver.
• Remove the stainless pad clips from the bracket.
• Clean the bracket pad-contact areas using brake cleaner spray and a wire brush over a drain pan.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and breaker bar.
• Set the bracket aside on a clean surface.

Step 5: Remove the rotor

• Pull the rotor straight off the hub. If it’s stuck from rust, tap around the rotor “hat” with a rubber mallet until it breaks free.
• Clean the hub face with a wire brush and brake cleaner spray so the new rotor sits flat.
• A dirty hub can cause brake vibration.

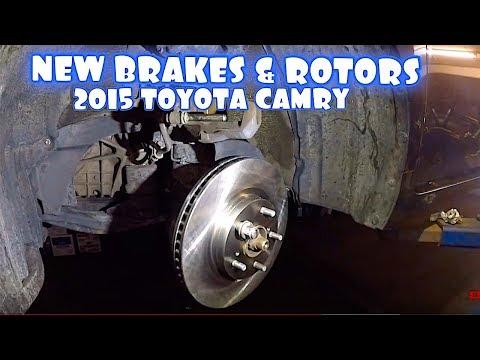

Step 6: Install the new rotor

• Spray the new rotor with brake cleaner spray and wipe with shop towels to remove packing oil.
• Install the rotor onto the hub.
• To hold it flush while you work, hand-thread one lug nut backward (flat side against rotor) using the wheel lug nut and snug it by hand.

Step 7: Reinstall the caliper bracket

• Position the bracket and start both bolts by hand.
• Tighten with a 17mm socket and torque wrench.
• Torque to 107 Nm (79 ft-lbs)

Step 8: Install new hardware clips and pads

• Install the new pad clips into the bracket.
• Apply a very thin film of brake caliper slide pin grease (silicone) to the pad ears where they touch the clips (do not get grease on pad friction material).
• Install the new pads into the bracket.
• Friction material must stay clean and dry.

Step 9: Compress the caliper piston

• Place an old pad against the piston face, then use a C-clamp brake piston compressor to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing; stop if it nears overflow.
• Go slow to protect seals.

Step 10: Reinstall the caliper

• Set the caliper over the new pads.
• Install the two slide pin bolts using a 14mm socket.
• Tighten with a torque wrench.
• Torque to 34 Nm (25 ft-lbs)

Step 11: Reinstall wheels

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 103 Nm (76 ft-lbs)

Step 12: Restore pedal feel before moving the car

• With the car still in P, press the brake pedal slowly 10-15 times until it feels firm.
• Check the brake fluid level and top off with DOT 3 brake fluid if needed.

---

✅ After Repair

• Start the car and confirm the brake pedal is firm and the car stops normally at low speed.
• Do a short leak/inspection: look around both calipers for any wetness.
• Bed-in the pads: make 6-10 moderate stops from about 35 mph down to 5 mph, allowing 30-60 seconds between stops to cool slightly. Avoid hard panic stops for the first 150-200 miles.
• If you hear constant scraping or pulling, stop and recheck pad seating and hardware clip placement.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
