🔧 Escape - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake caliper and bracket, replace the rotor, then install new pads and reassemble. This restores braking performance and prevents vibration or noise caused by worn pads or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Escape on jack stands—never rely on a jack alone.
• 🛑 Brake dust is unhealthy—wear nitrile gloves and safety glasses, and use brake cleaner (don’t blow dust with compressed air).
• 🛑 Do not let the caliper hang by the brake hose—support it with a caliper hanger hook.
• 🛑 Brake fluid can damage paint—wipe spills immediately.
• 🛑 Battery disconnect is not required for front brakes on your Escape.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• Ratchet
• Breaker bar
• Torque wrench (20-200 Nm range)
• 13mm socket
• 18mm socket
• C-clamp or disc brake piston compressor (specialty)
• Flathead screwdriver
• Bungee cord or caliper hanger hook
• Wire brush
• Rubber mallet
• Brake parts cleaner
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2 Replace in pairs
• Brake caliper bracket hardware kit (clips + pin boots) - Qty: 1
• Brake grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 2 cans
• Brake fluid (DOT 4) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, shift to P, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and check the brake fluid level in the reservoir. If it’s near “MAX,” siphon a little out with a clean towel before compressing pistons (fluid rises when pistons are pushed back).
• Loosen (crack loose) the front wheel lug nuts slightly with a 21mm socket and breaker bar before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front using a floor jack and support it with jack stands at the proper lift points.
• Remove lug nuts using a 21mm socket and ratchet, then remove both front wheels.

Step 2: Inspect and access the front brake assembly

• Turn the steering wheel to give more room (turn left to work on the right side, and vice versa).
• Look at the caliper, pads, and rotor. Confirm you’re working on the front (larger vented rotor, caliper behind the wheel).

Step 3: Remove the front caliper

• Use a 13mm socket and ratchet to remove the 2 caliper slide pin bolts.
• Carefully lift the caliper off the pads and rotor.
• Support the caliper with a bungee cord or caliper hanger hook. Never let it dangle.
• Definition: A “slide pin” is the smooth pin the caliper glides on when you brake.

Step 4: Remove old pads and the caliper bracket

• Pull the pads out of the bracket by hand. Use a flathead screwdriver gently if they’re stuck.
• Use an 18mm socket and breaker bar to remove the 2 caliper bracket bolts.
• Remove the caliper bracket and set it aside.

Step 5: Remove the rotor

• If the rotor is rust-stuck, spray the hub area with brake parts cleaner and tap the rotor hat with a rubber mallet to break it loose.
• Remove the rotor from the hub.

Step 6: Clean the hub face and prep the new rotor

• Use a wire brush to clean rust from the hub face (the flat mounting surface). A clean hub helps prevent rotor wobble.
• Spray the new rotor braking surfaces with brake parts cleaner and wipe with shop rags (new rotors often have protective oil).

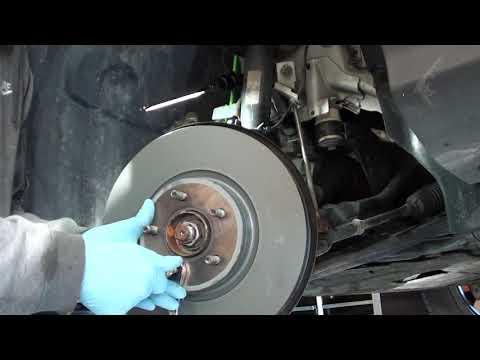

• Install the new rotor onto the hub.

Step 7: Service the bracket and install new hardware

• Remove the old pad clips from the bracket using a flathead screwdriver.
• Clean the clip seats on the bracket using a wire brush and brake parts cleaner.
• Install new pad clips from the hardware kit.
• Apply a thin film of brake grease (silicone-based) where the pad “ears” slide on the clips. Keep grease off rotor/pad friction surfaces.

Step 8: Reinstall the caliper bracket

• Position the bracket over the rotor and start bolts by hand.
• Tighten bracket bolts using an 18mm socket and torque wrench.
• Torque to 115 Nm (85 ft-lbs)

Step 9: Compress the caliper piston

• Before compressing, re-check the brake fluid reservoir level under the hood.
• Use a C-clamp or disc brake piston compressor (specialty) to slowly push the piston back into the caliper until it bottoms.
• Definition: A “piston compressor” pushes the caliper piston in so thicker new pads will fit.

Step 10: Install new pads and reinstall the caliper

• Install the new pads into the bracket (inner and outer).
• Slide the caliper over the new pads and rotor.
• Install the caliper slide pin bolts using a 13mm socket and torque wrench.
• Torque to 35 Nm (26 ft-lbs)

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the Escape to the ground using the floor jack.
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench.
• Torque to 135 Nm (100 ft-lbs)

Step 12: Restore brake pedal and fluid level

• With the engine off, press the brake pedal slowly 10-15 times until it feels firm. This seats pads against the rotors.
• Check brake fluid level and top off with DOT 4 if needed.
• Inspect for leaks around each caliper.

---

✅ After Repair

• Road test in a safe area: confirm normal stopping, no pulling, and no grinding.
• Bed-in (break-in) the pads: make 8-10 moderate stops from ~40 mph to ~10 mph, with 30-60 seconds of driving between stops to cool.
• Re-check lug nut torque after 50-100 miles using a torque wrench.
• If the brake pedal stays soft, stop and re-check installation (a firm pedal is required before driving normally).

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹25,000 (parts + labor)

DIY Cost: ₹6,000-₹16,000 (parts only)

You Save: ₹6,000-₹9,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
