🔧 Suburban - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake calipers, replace the pads and rotors, then reassemble and bed the brakes in. This restores safe stopping power and fixes common issues like pulsing (warped rotors) or squealing (worn pads).

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: Factory front brake hardware; bolt sizes can vary slightly.

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat surface and support the truck with jack stands; never rely on a jack alone.
• ⚠️ Chock the rear wheels and keep the transmission in PARK.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Do not let the caliper hang by the brake hose; support it with a hook/strap.
• ⚠️ Watch brake fluid level when compressing pistons; it can overflow and damage paint.
• ⚠️ No battery disconnect is required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 22mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (50-200 ft-lbs range)
• 13mm socket
• 18mm socket
• Ratchet (3/8" or 1/2" drive)
• Long-handled ratchet
• Flat blade screwdriver
• C-clamp brake piston compressor (specialty)
• Bungee cord or caliper hook
• Wire brush
• Rubber mallet
• Torx T30 bit
• Micrometer or vernier caliper (specialty)
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad hardware/clip kit - Qty: 1
• Brake cleaner - Qty: 2 cans
• High-temperature silicone brake grease - Qty: 1
• Medium-strength threadlocker (blue) - Qty: 1
• DOT 3 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Turn the steering wheel to give yourself room at the side you’re working on.
• Open the hood and locate the brake fluid reservoir; keep the cap sitting on top (not tightly locked) so pressure can vent.
• If the reservoir is very full, remove a little fluid with a clean syringe/turkey baster so it won’t overflow when you compress the pistons.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and lift the front

• Use a 22mm socket and breaker bar to loosen the front lug nuts about 1 turn (do not remove yet).
• Lift the front with a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the truck onto jack stands (rated 3-ton minimum) and give it a firm shake test.

Step 2: Remove the wheel

• Remove the lug nuts using a 22mm socket and ratchet.
• Remove the wheel and slide it under the frame as a backup safety support.

Step 3: Remove the brake caliper (the squeeze part)

• Locate the two caliper guide/slide pin bolts (these are the bolts that let the caliper “slide” as the pads wear).
• Use a 13mm socket and ratchet to remove the caliper guide pin bolts.
• Carefully lift the caliper off the bracket. Use a bungee cord or caliper hook to hang it from the suspension.
• Don’t twist or stretch the rubber brake hose.

Step 4: Remove the caliper bracket (the pad holder)

• The caliper bracket is the heavy metal frame that holds the pads and bolts to the steering knuckle.
• Use an 18mm socket and long-handled ratchet to remove the two caliper bracket bolts.
• Set the bracket on a clean surface.
• Torque on reassembly: Torque to 221 Nm (163 ft-lbs) (apply medium-strength threadlocker (blue)).

Step 5: Remove the rotor

• If equipped with a rotor retaining screw, remove it using a Torx T30 bit.
• Pull the rotor straight off. If it’s stuck, tap the rotor hat area with a rubber mallet to break rust loose.

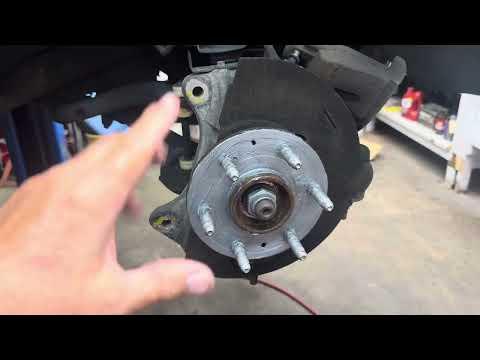

Step 6: Clean the hub surface

• Use brake cleaner and a wire brush to clean rust off the wheel hub face (where the rotor sits).
• A smooth hub face helps prevent rotor wobble and pedal pulsation.

Step 7: Install the new rotor

• Spray both sides of the new rotor with brake cleaner to remove protective shipping oil.
• Install the rotor onto the hub. If it uses a retaining screw, install it using a Torx T30 bit (snug only).
• Keep greasy fingerprints off rotor faces.

Step 8: Service the bracket hardware and reinstall the bracket

• Remove old pad clips/hardware from the bracket using a flat blade screwdriver.
• Clean the clip lands (where clips sit) with a wire brush.
• Install new clips from the hardware/clip kit.
• Apply a thin film of high-temperature silicone brake grease where pads contact the clips (do not get grease on pad friction material).
• Reinstall the bracket using an 18mm socket and ratchet, then tighten with a torque wrench: Torque to 221 Nm (163 ft-lbs).

Step 9: Compress the caliper piston

• The caliper piston is the round “push” part that squeezes the pads; it must be pushed back to fit new thicker pads.
• Place an old brake pad against the piston face.
• Use a C-clamp brake piston compressor (specialty) to slowly press the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing; remove excess fluid if it rises too high.

Step 10: Install new pads and reinstall the caliper

• Install the new inner and outer pads into the bracket.
• Carefully set the caliper back over the pads.
• Install the guide/slide pin bolts using a 13mm socket and ratchet, then tighten with a torque wrench: Torque to 31 Nm (23 ft-lbs).
• If it won’t fit, piston isn’t fully compressed.

Step 11: Repeat on the other front wheel

• Repeat Steps 2–10 on the other side. Replace brakes in pairs so braking stays even.

Step 12: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread lug nuts.
• Lower the truck off the stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 190 Nm (140 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal slowly 10–15 times until it feels firm (this seats the pistons).
• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• Start the engine and confirm the pedal feels normal; the pedal may drop slightly with power assist.
• Check for leaks and listen for scraping/metal-to-metal noises.
• Bed-in procedure (recommended): make 6–10 moderate stops from 40 to 10 mph, allowing 30 seconds between stops. Avoid hard stops and avoid sitting stopped with hot brakes for a few minutes.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $370-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
