🔧 Front Brakes and Rotors - Replacement

This job replaces the front brake pads and rotors on your GTI. You’ll remove the caliper, carrier, and rotor, then install the new parts and reassemble everything to factory torque.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work on a cool brake system. Rotors and calipers can stay hot.
• Support the car with jack stands. Never rely on the floor jack alone.
• Use wheel chocks on the rear wheels.
• Do not press the brake pedal with a caliper removed.
• Brake dust can be harmful. Wear a mask and use brake cleaner, not compressed air.
• If brake fluid is near the top, remove a little before pushing the pistons back.
• Front brake bolts may be tight and may need replacement if corrosion or stretch-type hardware is found.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 17mm lug bolt socket
• 3/8-inch drive ratchet
• 1/2-inch drive breaker bar
• Torque wrench
• Triple-square bit set
• Torx T30 screwdriver
• Brake caliper compression tool (specialty)
• Flat blade screwdriver
• Wire hanger
• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Gloves
• Safety glasses
• Brake cleaner
• Wire brush
• Micrometer or caliper gauge

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake pad hardware kit - Qty: 1
• Rotor retaining screws - Qty: 2
• Brake cleaner - Qty: 1
• Brake grease - Qty: 1
• Brake fluid - Qty: As needed
• Pad wear sensor - If equipped - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Put the transmission in gear.
• Loosen the front wheel bolts before lifting the car.
• Keep the steering wheel centered while working on each side.
• Open the brake fluid reservoir cap before pushing the pistons back, then reinstall it loosely to keep dirt out.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the wheel

• Use the 17mm lug bolt socket and breaker bar to loosen the front wheel bolts a little before lifting.
• Raise the GTI with the floor jack (rated 3-ton minimum) and support it with jack stands.
• Remove the wheel bolts and wheel.
• Keep the bolts in a clean tray.

Step 2: Remove the caliper

• Use the Torx T30 screwdriver to remove the pad wear sensor screw if equipped.
• Use the Triple-square bit set to remove the caliper guide pin bolts.
• Lift the caliper off the bracket and support it with the wire hanger.
• Torque on reinstall: 30 Nm (22 ft-lbs) for the guide pin bolts.

Step 3: Remove the pads and carrier

• Slide the old pads out of the carrier.
• Use the Triple-square bit set to remove the caliper carrier bolts.
• Remove the carrier from the steering knuckle.
• Torque on reinstall: 200 Nm (148 ft-lbs) plus 90° for the carrier bolts if your replacement bolts are stretch-type.
• Replace these bolts if they are one-time-use style.

Step 4: Remove the rotor

• Use the Torx T30 screwdriver to remove the rotor retaining screw.
• Pull the rotor off the hub. If it is stuck, tap the rotor hat gently with a dead-blow hammer.
• Clean the hub face with a wire brush and brake cleaner.
• A flat hub surface prevents brake pulsation.

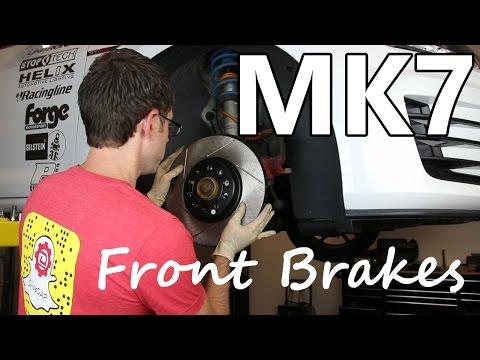

Step 5: Install the new rotor

• Clean the new rotor with brake cleaner to remove shipping oil.
• Install the rotor and secure it with the new retaining screw using the Torx T30 screwdriver.
• Torque to 10 Nm (89 in-lbs) for the rotor screw.

Step 6: Install the carrier and pads

• Reinstall the caliper carrier using the Triple-square bit set.
• Torque to 200 Nm (148 ft-lbs) plus 90° for the carrier bolts if specified by your replacement hardware.
• Apply a thin layer of brake grease to pad contact points only. Do not grease friction surfaces.
• Install the new pad hardware and new pads into the carrier.

Step 7: Compress the piston and reinstall the caliper

• Use the Brake caliper compression tool (specialty) to push the caliper piston fully back.
• Make sure the piston face is aligned correctly with the pad.
• Reinstall the caliper over the new pads.
• Use the Triple-square bit set to install and tighten the guide pin bolts.
• Torque to 30 Nm (22 ft-lbs) for the guide pin bolts.

Step 8: Reinstall the wheel

• Put the wheel back on and hand-start all wheel bolts using the 17mm lug bolt socket.
• Lower the GTI to the ground and tighten the wheel bolts with a torque wrench.
• Torque to 120 Nm (89 ft-lbs) for the wheel bolts.

Step 9: Repeat on the other side

• Repeat the same procedure on the other front wheel.
• Always replace rotors in pairs.

---

✅ After Repair

• Press the brake pedal slowly several times until it feels firm.
• Check the brake fluid level and top off if needed.
• Start the car and test the brakes at very low speed first.
• Listen for rubbing, clicking, or grinding.
• Bed the new pads and rotors by doing several moderate stops, not hard panic stops.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
