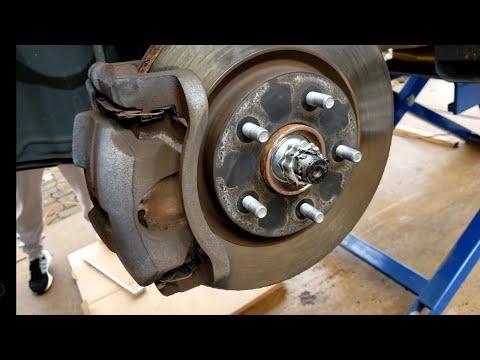

🔧 Rogue - Front Brake Pads & Rotors Replacement

You’ll remove the front wheels, take off the brake caliper and bracket, replace the rotor, and install new brake pads on your Rogue. This restores braking performance and prevents vibration from worn or warped rotors.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always support the vehicle with jack stands; never rely on the floor jack alone.
• ⚠️ Work on a flat, solid surface and chock (block) the rear wheels to prevent rolling.
• ⚠️ Brakes and nearby parts can get very hot; only work when everything is cool to the touch.
• ⚠️ Wear safety glasses and a dust mask; old brake dust is harmful if inhaled.
• ⚠️ Do not press the brake pedal when a caliper is removed; it can push the piston out.
• ⚠️ Keep brake fluid off paint and skin; wipe any spills immediately.
• ⚠️ Do not let the brake caliper hang by the rubber hose; support it with wire or a hook.
• ⚠️ Battery disconnect isn’t required for this job on your Rogue.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Lug wrench 21mm
• 🛠️ Socket wrench 3/8" drive
• 🛠️ Socket wrench 1/2" drive
• 🛠️ 14mm socket
• 🛠️ 19mm socket
• 🛠️ 21mm socket
• 🛠️ Torque wrench 3/8" drive
• 🛠️ Torque wrench 1/2" drive
• 🛠️ Flathead screwdriver medium
• 🛠️ C-clamp large
• 🛠️ Brake caliper piston tool (specialty)
• 🛠️ Bungee cord
• 🛠️ Wire brush small
• 🛠️ Shop rags
• 🛠️ Disposable gloves
• 🛠️ Safety glasses
• 🛠️ Dust mask
• 🛠️ Brake cleaner spray
• 🛠️ Anti-seize compound small tube
• 🛠️ High-temperature brake grease small packet

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Front brake rotor set (left and right) - Qty: 2
• 🔩 Front brake pad set - Qty: 1 set (both sides)
• 🔩 Front brake pad hardware kit (shims/clips) - Qty: 1
• 🔩 Brake cleaner spray - Qty: 1–2 cans
• 🔩 High-temperature brake grease - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your Rogue on level ground, shift to P, and set the parking brake.
• Place wheel chocks behind both rear wheels.
• Loosen (but do not remove) the front wheel lug nuts 1/2 turn with the 21mm socket or lug wrench while the vehicle is on the ground.
• Gather all tools and parts so you’re not searching midway through the job.
• Open the hood so you can see the brake fluid reservoir on the driver side near the firewall.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and Support the Front of the Rogue

• Position the floor jack (3-ton) under the front center jacking point (under the subframe, just behind the front bumper). If unsure, check your owner’s manual diagram.
• Raise the front until both front wheels are off the ground.
• Place jack stands (3-ton) under the reinforced pinch welds just behind each front wheel, then slowly lower the vehicle onto the stands.
• Give the vehicle a gentle push to confirm it is stable.
• Never work under a car supported only by a jack.

Step 2: Remove the Front Wheels

• Use the 21mm socket and 1/2" drive socket wrench to remove the lug nuts from both front wheels.
• Remove the wheels and set them aside out of your work area.
• Keep lug nuts together so none are lost.

Step 3: Inspect and Prepare the Brake Area

• Locate the brake caliper (the big clamp over the rotor) and the caliper bracket behind it.
• Use the brake cleaner spray and shop rags to clean visible dirt and dust from the caliper and rotor.
• Wear your dust mask and safety glasses during cleaning.

Step 4: Remove the Caliper

• On the back of the caliper, find the two caliper slide pin bolts (upper and lower).
• Use a 14mm socket and 3/8" drive socket wrench to loosen and remove both slide pin bolts.
• Carefully slide the caliper off the rotor. If it’s stuck, gently use the flathead screwdriver medium to pry, but do not damage the rubber boots.
• Hang the caliper from the suspension spring using a bungee cord so it does not hang by the brake hose.

Step 5: Remove Old Pads and Hardware

• Slide the old brake pads out of the caliper bracket by hand.
• Remove the metal pad clips (hardware) from the caliper bracket using the flathead screwdriver medium if needed.
• Use a wire brush small to clean the areas on the caliper bracket where the clips sit, removing rust and debris.
• Clean metal surfaces help pads move smoothly.

Step 6: Remove the Caliper Bracket

• Locate the two large caliper bracket bolts on the back of the steering knuckle.
• Use a 19mm socket with the 1/2" drive socket wrench to loosen and remove these bolts.
• Remove the caliper bracket and set it on a clean surface.

Step 7: Remove the Old Rotor

• If the rotor is loose, simply slide it off the hub.
• If it is stuck from rust, spray a little brake cleaner around the hub center and let it sit.
• Tap the rotor hat (flat face between studs) with the palm of your hand or a rubber mallet to break it free; do not hit the wheel studs directly.
• Remove the rotor and set aside.

Step 8: Prepare the Hub and New Rotor

• Use the wire brush small to clean rust and debris off the face of the hub where the rotor sits.
• Wipe the hub with brake cleaner spray and a shop rag.
• Apply a very thin film of anti-seize compound around the center hub ring only (not on the wheel studs or braking surface).
• Clean the new rotor’s braking surfaces with brake cleaner spray to remove any shipping oil.

Step 9: Install the New Rotor

• Place the new rotor onto the hub, aligning the lug stud holes.
• To keep it from wobbling, thread one lug nut on by hand using the 21mm socket to snug it lightly; this holds the rotor in place while you work.

Step 10: Reinstall the Caliper Bracket

• Position the caliper bracket over the rotor and align bolt holes.
• Install the two 19mm caliper bracket bolts by hand first to avoid cross-threading.
• Use the 19mm socket and 1/2" drive socket wrench to tighten both bolts.
• Finish with the 1/2" drive torque wrench and 19mm socket, and tighten both bolts to 133 Nm (98 ft-lbs).

Step 11: Install New Hardware and Pads

• Clip the new pad hardware (metal clips) into the caliper bracket by hand; ensure they are fully seated.
• Apply a very thin layer of high-temperature brake grease on the areas of the clips where the pad ears will slide (do not get grease on the pad friction surface or rotor).
• Install the new inner and outer pads into the caliper bracket, making sure they sit flat and move smoothly.

Step 12: Compress the Caliper Piston

• Check the brake fluid level in the reservoir under the hood. If it is already at the very top, remove a little with a clean rag or syringe so it doesn’t overflow when you push the piston in.
• Place an old brake pad against the piston face inside the caliper.
• Use the C-clamp large or brake caliper piston tool between the backside of the caliper and the old pad to slowly push the piston fully back into the caliper.
• Go slowly and steadily; stop if you feel anything unusual.
• Piston must be fully in so caliper fits over new pads.

Step 13: Reinstall the Caliper

• Position the caliper over the new pads and onto the caliper bracket.
• Align the caliper slide pin bolt holes with the bracket.
• Install both slide pin bolts by hand first.
• Use the 14mm socket and 3/8" drive socket wrench to snug them down.
• Then use the 3/8" drive torque wrench with the 14mm socket to tighten each slide pin bolt to 34 Nm (25 ft-lbs).

Step 14: Repeat on the Other Front Side

• Repeat Steps 4 through 13 on the other front wheel.
• Always replace front pads and rotors in pairs.

Step 15: Reinstall the Wheels

• Remove any temporary lug nut holding the rotor in place.
• Install each front wheel onto the hub.
• Thread all lug nuts by hand using the 21mm socket to avoid cross-threading.
• Snug the lug nuts in a star pattern with the 1/2" drive socket wrench but do not fully torque yet.

Step 16: Lower the Vehicle and Torque the Lug Nuts

• Use the floor jack to raise the front slightly, remove the jack stands, then lower the vehicle fully to the ground.
• Use the 1/2" drive torque wrench and 21mm socket to tighten the lug nuts in a star pattern to 113 Nm (83 ft-lbs).

Step 17: Pump the Brake Pedal and Check Fluid

• Sit in the driver’s seat and slowly press the brake pedal several times until it becomes firm. This seats the pads against the rotors.
• Check the brake fluid reservoir level under the hood. It should be between the MIN and MAX lines.
• If needed, top up with the correct brake fluid type printed on the cap.

---

✅ After Repair

• Start the engine and press the brake pedal again to confirm it feels firm and consistent.
• Check around both front wheels for any fluid leaks or loose parts.
• Perform a gentle test drive in a safe area: start with very light braking at low speed, then gradually increase braking force.
• Listen for grinding or loud noises; a slight new-pad smell is normal at first.
• New pads and rotors need to be bedded-in: for the first 300–500 km, avoid hard stops unless necessary and avoid riding the brakes.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$650 (parts + labor)

DIY Cost: $180–$280 (parts only)

You Save: $270–$370 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
