🔧 Front Brakes & Rotors - Replacement

Your front brake pads and rotors wear together, so replacing both at the same time gives the best braking feel and keeps noise down. On your Rogue, this is a straightforward driveway repair if you work one side at a time and keep everything clean.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work on level ground and chock the rear wheels before lifting the vehicle.
• Use jack stands. Never rely on the floor jack alone.
• Do not press the brake pedal with a caliper removed.
• Support the caliper with wire or a bungee cord. Do not let it hang by the hose.
• Keep brake dust out of your lungs and eyes. Use brake cleaner only in a ventilated area.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• 19mm socket
• 14mm socket
• Ratchet
• Breaker bar
• Torque wrench
• Bungee cord
• C-clamp
• Flat blade screwdriver
• Wire brush
• Brake cleaner
• Drain pan
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front lug nuts slightly before lifting.
• Lift the front of the vehicle and place it securely on jack stands.
• Remove both front wheels for easier access and to compare left and right sides as you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the wheel

• Use a 19mm socket and breaker bar to remove the lug nuts.
• Remove the wheel and set it aside.
• Keep lug nuts in a clean tray.

Step 2: Remove the caliper

• Use a 14mm socket to remove the two caliper slide bolts.
• Lift the caliper off the bracket and hang it with a bungee cord.
• Do not twist or pull on the rubber brake hose.

Step 3: Remove the old pads and bracket

• Slide the brake pads out of the caliper bracket.
• Use a 14mm socket to remove the caliper bracket bolts.
• Remove the bracket from the knuckle.
• Torque on installation: caliper bracket bolts to 108 Nm (80 ft-lbs).

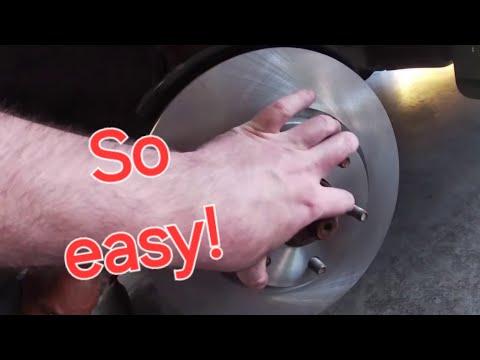

Step 4: Remove the rotor

• Pull the rotor off the hub.
• If it is stuck, use a flat blade screwdriver through the access hole to help free it.
• Tap gently from the back side if needed.
• Clean the hub face with a wire brush and brake cleaner.
• Clean hub faces prevent brake pulsation.

Step 5: Install the new rotor

• Clean the new rotor with brake cleaner to remove shipping oil.
• Install the rotor onto the hub.
• If the rotor has a retaining screw, reinstall it if equipped.

Step 6: Reinstall the caliper bracket and pads

• Reinstall the caliper bracket using a 14mm socket.
• Torque the bracket bolts to 108 Nm (80 ft-lbs).
• Apply a thin layer of brake grease to the pad contact points on the bracket.
• Install the new pads into the bracket.

Step 7: Compress the caliper piston

• Use a C-clamp to slowly push the caliper piston back into the bore.
• Watch the brake fluid level in the master cylinder.
• Stop if the fluid starts to overflow.
• Compress slowly to avoid seal damage.

Step 8: Reinstall the caliper

• Set the caliper back over the new pads.
• Install the slide bolts with a 14mm socket.
• Torque the slide bolts to 32 Nm (24 ft-lbs).

Step 9: Reinstall the wheel

• Put the wheel back on.
• Hand-tighten the lug nuts with a 19mm socket.
• Lower the vehicle and torque the lug nuts to 113 Nm (83 ft-lbs) in a star pattern.

Step 10: Repeat on the other side

• Repeat the same steps on the opposite front brake.
• Always replace pads and rotors in pairs.

---

✅ After Repair

• Press the brake pedal slowly several times until it feels firm.
• Check brake fluid level and top off if needed.
• Start with a slow test drive in a safe area.
• Listen for abnormal noises and feel for pedal pulsation.
• Break in the new pads and rotors with several moderate stops, not hard panic stops.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$260 (parts only)

You Save: $230-$390 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
