🔧 Forester - Front Brake Pads & Rotor Replacement

You’ll remove the front calipers, swap the brake pads, and replace the front rotors. This restores safe stopping power and fixes vibration/pulsation caused by warped or worn rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work on a flat, solid surface and support the Forester with jack stands (never rely on a jack).
• 🧤 Wear gloves and safety glasses; brake dust and cleaner are irritating.
• 🔥 Brakes can be hot—let everything cool before touching parts.
• 🧪 Don’t let brake fluid touch paint; it can damage the finish.
• 🔒 Do not press the brake pedal while a caliper is off the rotor.
• 🔋 Battery disconnect is not required for this front brake/rotor job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar (1/2" drive)
• Torque wrench (1/2" drive, 20-150 ft-lbs range)
• Torque wrench (3/8" drive, 10-50 ft-lbs range)
• 19mm socket
• 14mm socket
• 17mm socket
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Flathead screwdriver
• C-clamp (6" minimum)
• Brake caliper hanger hook
• Wire brush
• Dead blow hammer
• Phillips screwdriver #3
• Impact driver (handheld) (specialty)
• Micrometer or vernier caliper (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware kit (clips/shims) - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Brake cleaner spray - Qty: 2
• DOT 3 brake fluid - Qty: 1 quart
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and apply the parking brake.
• Place wheel chocks behind the rear wheels.
• Loosen the front lug nuts 1/2 turn using a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; keep the cap loosely set on top (this helps fluid move back as you compress pistons).
• A “caliper” squeezes the pads against the rotor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front

• Use a floor jack (rated 3-ton minimum) to lift the front of the Forester at the approved front center lift point.
• Set the vehicle onto jack stands (rated 3-ton minimum) at the front pinch welds or approved stand points.
• Remove both front wheels using a 19mm socket and ratchet (1/2" drive).

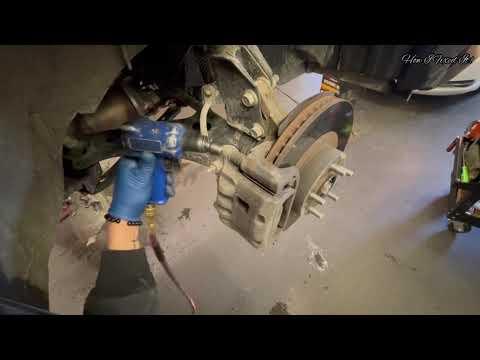

Step 2: Remove the caliper (do not let it hang)

• Turn the steering to give yourself space (left side: turn wheel right; right side: turn wheel left).
• Remove the two caliper slide bolts using a 14mm socket and ratchet (3/8" drive).
• Lift the caliper off the rotor and support it with a brake caliper hanger hook.
• Never hang the caliper by the hose.

Step 3: Remove the old pads and hardware

• Pull the brake pads out by hand; use a flathead screwdriver gently if they’re stuck.
• Remove the pad clips/hardware from the bracket.
• Clean the bracket “pad shelf” areas with brake cleaner spray and a wire brush.

Step 4: Remove the caliper bracket

• Remove the two bracket bolts using a 17mm socket and breaker bar.
• Set the bracket aside.
• During reassembly, Torque to 88 Nm (65 ft-lbs).

Step 5: Remove the rotor

• If your rotors have retaining screws, remove them using a Phillips screwdriver #3. If they’re stuck, use an impact driver (handheld) (specialty).
• Pull the rotor off. If it’s seized to the hub, tap the rotor hat evenly with a dead blow hammer until it breaks free.
• Clean the hub face with a wire brush, then wipe with brake cleaner spray.
• Apply a very thin film of anti-seize compound to the hub face (avoid the wheel studs).

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner spray and wipe clean (this removes protective shipping oil).
• Install the rotor onto the hub. If equipped, reinstall the retaining screw using a Phillips screwdriver #3 (snug only).

Step 7: Service the slide pins (so the caliper moves smoothly)

• Pull the slide pins out of the bracket by hand.
• Wipe old grease off, inspect the rubber boots for tears, then apply fresh brake caliper grease (silicone).
• Slide pins must move in and out easily.

Step 8: Reinstall the bracket and new hardware

• Reinstall the caliper bracket using a 17mm socket and ratchet (1/2" drive).
• Torque to 88 Nm (65 ft-lbs) using a torque wrench (1/2" drive, 20-150 ft-lbs range).
• Install the new pad clips/hardware into the bracket.
• Apply a thin layer of brake caliper grease (silicone) where the pad “ears” touch the clips (do not get grease on pad friction material).

Step 9: Compress the caliper piston

• Place one old brake pad against the caliper piston face.
• Use a C-clamp (6" minimum) to slowly press the piston fully back into the caliper.
• Watch the brake fluid reservoir level as you compress (remove excess fluid if it nears the top).
• Go slow to avoid damaging seals.

Step 10: Install the new pads and reinstall the caliper

• Install the new inner and outer pads into the bracket.
• Set the caliper over the new pads and rotor.
• Install the two caliper slide bolts using a 14mm socket and ratchet (3/8" drive).
• Torque to 27 Nm (20 ft-lbs) using a torque wrench (3/8" drive, 10-50 ft-lbs range).

Step 11: Reinstall wheels

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the Forester until the tires just touch the ground and won’t spin.
• Tighten lug nuts in a star pattern using a 19mm socket and torque wrench (1/2" drive, 20-150 ft-lbs range).
• Torque to 120 Nm (89 ft-lbs).
• Fully lower the vehicle and remove the jack and stands.

---

✅ After Repair

• Before starting the engine, pump the brake pedal 10-15 times until it feels firm (this seats the pads against the rotors).
• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• With the engine running, press the brake pedal again to confirm a firm pedal.
• Test at low speed first; verify no pulling, grinding, or warning lights.
• Pad/rotor break-in (bed-in): make 8-10 medium stops from ~40 to 10 mph, allowing ~30 seconds between stops to cool slightly. Avoid hard stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
