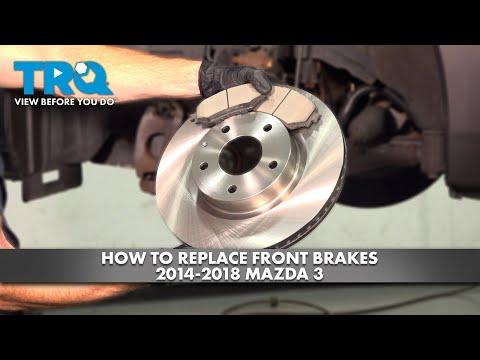

🔧 Mazda3 - Front Brake Pads & Rotor Replacement

You’ll be removing the front calipers, swapping the brake pads, and replacing the rotors. This restores braking performance and helps prevent vibration or noise caused by worn pads or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support your Mazda3 on jack stands—never rely on a floor jack alone.
• 🧤 Brakes create dust; wear gloves and safety glasses, and avoid breathing dust.
• 🔥 Brakes can be hot after driving; let them cool before starting.
• 🚫 Do not let the caliper hang by the brake hose; support it with a bungee cord.
• 🧪 Brake fluid can damage paint; wipe spills immediately.
• 🔋 Battery disconnect is not required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-150 ft-lbs range)
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• Phillips screwdriver #3
• Flat trim/pry tool
• C-clamp brake piston compressor (specialty)
• Bungee cord
• Wire brush
• Brake parts cleaner spray
• Shop towels
• Small wire pick
• Rubber mallet
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front pad hardware/abutment clip kit - Qty: 1
• Silicone brake lubricant - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind both rear tires.
• Crack the front lug nuts loose before lifting the car (about 1/4 turn).
• Open the hood and locate the brake fluid reservoir. Do not remove fluid yet—just keep an eye on the level when you push pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lugs and lift the front

• Use a 21mm socket and breaker bar to loosen the front lug nuts slightly.
• Lift the front using a floor jack at the proper front center jacking point.
• Set the car down securely on jack stands placed at the pinch welds.
• Remove the wheels with the 21mm socket.

Step 2: Remove the caliper (do not stretch the hose)

• Turn the steering wheel to give yourself more room (left side: turn wheel right; right side: turn wheel left).
• Use a 14mm socket and 3/8" drive ratchet to remove the two caliper slide-pin bolts.
• Lift the caliper off the bracket. If it’s tight, gently pry with a flat trim/pry tool.
• Support the caliper with a bungee cord (hook it to the strut spring). Never hang by the hose.

Step 3: Remove the old pads and hardware

• Pull the pads out of the bracket by hand. If stuck, use a flat trim/pry tool carefully.
• Remove the stainless hardware clips with a small wire pick.

Step 4: Remove the caliper bracket

• Use a 17mm socket and breaker bar to remove the two caliper bracket bolts (they’re usually tight).
• Set the bracket aside.

Step 5: Remove the rotor

• If your rotor has retaining screws, remove them using a Phillips screwdriver #3.
• Pull the rotor off. If it’s stuck from rust, strike the rotor hat (center area) with a rubber mallet until it breaks free.

Step 6: Clean and prep the hub and bracket

• Clean rust off the hub face using a wire brush. A clean hub helps prevent brake vibration.
• Spray the hub and bracket areas with brake parts cleaner spray and wipe using shop towels.
• Clean the caliper bracket pad “rails” (where the clips sit) with the wire brush.

Step 7: Install the new rotor

• Spray both sides of the new rotor with brake parts cleaner spray and wipe with shop towels (removes protective shipping oil).
• Slide the rotor onto the hub.
• If equipped, reinstall rotor retaining screws with a Phillips screwdriver #3 (snug only—do not over-tighten).

Step 8: Reinstall the caliper bracket

• Position the bracket over the rotor and start both bolts by hand.
• Tighten using a 17mm socket and torque wrench.
• Torque to 88-118 Nm (65-87 ft-lbs)

Step 9: Install new hardware clips and lubricate correctly

• Install the new hardware/abutment clips into the bracket by hand.
• Apply a thin film of silicone brake lubricant where the pad “ears” touch the clips.
• Do not get grease on pad/rotor faces.

Step 10: Compress the caliper piston

• Place an old pad against the piston face (optional but helpful).
• Use a C-clamp brake piston compressor (specialty) to slowly push the piston straight back into the caliper. (A piston compressor is a clamp tool that pushes the piston back evenly.)
• Watch the brake fluid reservoir while compressing. If it gets close to “MAX,” stop and remove a little fluid using a clean towel (do not spill).

Step 11: Install the new pads

• Slide the new inner and outer pads into the bracket/hardware clips by hand.
• Make sure the pads move smoothly in the clips (they should slide, not bind).

Step 12: Reinstall the caliper

• Lower the caliper over the new pads.
• Install the slide-pin bolts using a 14mm socket and 3/8" drive ratchet.
• Tighten using a torque wrench.
• Torque to 25-35 Nm (18-26 ft-lbs)

Step 13: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a 21mm socket and torque wrench.
• Torque to 108 Nm (80 ft-lbs)

Step 14: Pump the brake pedal (critical)

• Before starting the engine, press the brake pedal slowly 10-15 times until it feels firm.
• This seats the pistons back against the new pads.

---

✅ After Repair

• Check brake fluid level and adjust to the “MAX” line (do not overfill).
• With the engine running, hold the brake pedal firmly for 15 seconds to confirm it doesn’t sink.
• Do a careful test drive at low speed first. Listen for grinding and confirm the car stops straight.
• Pad/rotor break-in (recommended): do 6-8 moderate stops from ~40 mph down to ~10 mph, with 30-60 seconds between stops for cooling. Avoid hard stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
