🔧 Corolla - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, swapping the brake pads, and replacing the front rotors. Worn pads/rotors can cause grinding, vibration, longer stopping distance, and uneven braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and use jack stands; never rely on a jack alone.
• ⚠️ Brakes may be hot—let them cool before touching parts.
• ⚠️ Do not press the brake pedal with a caliper removed.
• ⚠️ Do not breathe brake dust; use brake cleaner, not compressed air.
• ⚠️ Support the brake caliper with a hanger; don’t let it hang by the hose.
• ⚠️ Brake fluid can damage paint; wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 ft-lbs range)
• 14mm socket
• 17mm socket
• C-clamp (6")
• Brake caliper hanger hook
• Flathead screwdriver
• Wire brush
• Rubber mallet
• Brake parts cleaner spray
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware/clip kit - Qty: 1
• Brake lubricant silicone grease - Qty: 1
• Brake cleaner - Qty: 1-2 cans
• Threadlocker (medium strength) - Qty: 1

---

📋 Before You Begin

• Park your Corolla on level ground, shift to P, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Loosen the front lug nuts about 1/2 turn using a 21mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir; you’ll be pushing fluid back when compressing the caliper piston. Don’t overfill.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

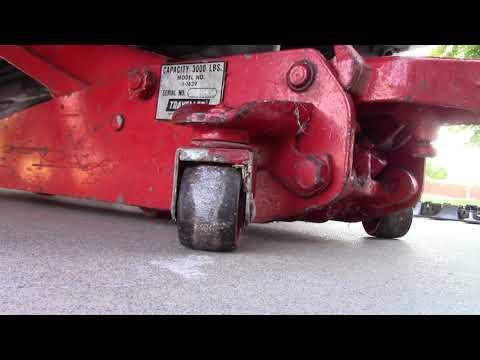

• Use a floor jack to lift the front of your Corolla at the front center jack point.
• Place jack stands under the left and right front pinch welds and lower the car onto them.
• Remove the wheels using a 21mm socket.

Step 2: Remove the brake caliper

• Turn the steering wheel to give yourself more room at the side you’re working on.
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet.
• Lift the caliper off the bracket, then hang it from the strut spring using a brake caliper hanger hook.
• Never let the caliper hang by the hose.

Step 3: Remove old pads and hardware

• Pull the pads out of the bracket by hand; if stuck, gently pry with a flathead screwdriver.
• Remove the stainless pad clips (hardware) from the bracket.
• Clean the bracket pad lands (where clips sit) using a wire brush and brake parts cleaner spray, then wipe with shop towels.

Step 4: Remove the caliper bracket

• Remove the two caliper bracket bolts using a 17mm socket and breaker bar.
• Set the bracket aside.
• On reassembly: Torque to 107 Nm (79 ft-lbs).

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck from rust, spray where the rotor meets the hub with brake parts cleaner spray, then tap the rotor hat with a rubber mallet until it loosens.
• Clean the hub face with a wire brush so the new rotor sits flat. A clean hub prevents steering shake.

Step 6: Install the new rotor

• Clean both sides of the new rotor using brake parts cleaner spray and shop towels (this removes protective oil).
• Install the rotor onto the hub.
• To keep it from wobbling while you work, thread on one lug nut by hand (use a wheel lug as a temporary “holder”).

Step 7: Service slide pins and install new hardware

• Pull the slide pins out of the bracket by hand, wipe them clean with shop towels, and apply a thin coat of brake lubricant silicone grease.
• Reinstall slide pins and make sure they move smoothly (they should glide in/out easily).
• Install the new pad clips/hardware into the bracket.

Step 8: Reinstall the bracket

• Position the bracket over the new rotor and hand-start the two bracket bolts.
• Use a 17mm socket to tighten, then torque to 107 Nm (79 ft-lbs) using a torque wrench.
• If you use threadlocker, apply threadlocker (medium strength) sparingly to clean bolt threads.

Step 9: Compress the caliper piston

• Place the old inner pad against the piston face.
• Use a C-clamp (6") to slowly press the piston fully back into the caliper.
• Check the brake fluid reservoir while compressing. If it gets too full, remove a little fluid (do not overflow).
• Go slow to avoid damaging the piston seal.

Step 10: Install new pads and reinstall the caliper

• Install the new pads into the bracket.
• Apply a thin film of brake lubricant silicone grease only where the pad backing touches the clips (not on pad friction material).
• Slide the caliper back over the pads.
• Install the two caliper slide pin bolts using a 14mm socket, then torque to 34 Nm (25 ft-lbs).

Step 11: Reinstall wheels

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench: Torque to 103 Nm (76 ft-lbs).

Step 12: Pump the brake pedal

• Before starting the car, press the brake pedal slowly 10-15 times until it feels firm.
• This seats the pads against the rotors after the piston was pushed in.

---

✅ After Repair

• Check the brake fluid level and top off only if needed (use the correct DOT fluid shown on the reservoir cap).
• Start the car and hold the brake pedal; confirm it stays firm and does not sink.
• Do a slow test drive in a safe area. Listen for abnormal grinding and verify straight, smooth stops.
• Pad bedding (recommended): make 6-10 moderate stops from 35 mph to 10 mph, allowing a little cool-down between stops. Avoid hard stops at first.
• Recheck lug nut torque after 25-50 miles using a torque wrench: 103 Nm (76 ft-lbs).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$480 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
