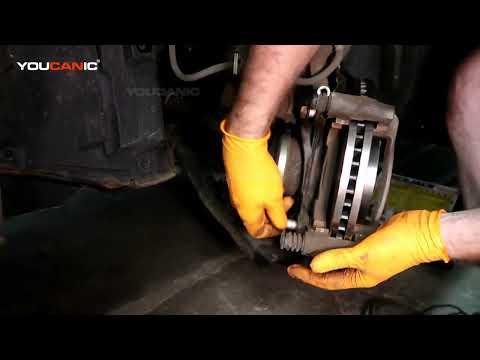

🔧 CX-5 - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, swap the front brake pads and rotors, then reinstall everything with proper torque. This restores safe stopping power and prevents vibration/pulsation from worn or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work on a level surface and chock the rear wheels.
• 🧰 Support the CX-5 on jack stands—never rely on a floor jack alone.
• 🔥 Brakes can be very hot; let them cool before touching.
• 🧪 Do not inhale brake dust; use brake cleaner, not compressed air.
• 🧴 Watch the brake fluid level while compressing the caliper piston; it can overflow.
• 🛑 Do not press the brake pedal with a caliper removed.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench or 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 ft-lbs range)
• 14mm socket
• 17mm socket
• Flathead screwdriver
• C-clamp or disc brake piston compressor (specialty)
• Wire hook or bungee cord
• Wire brush
• Rubber mallet
• Brake cleaner
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake pad hardware/clip kit - Qty: 1
• Brake caliper slide pin grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, leave the transmission in 1st gear, and set the parking brake.
• 🧱 Place wheel chocks behind both rear tires.
• 🛞 Break the front lug nuts loose 1/2 turn using a lug wrench or 21mm socket before lifting.
• 🧴 Pop the hood and check the brake fluid reservoir level. If it’s near “MAX,” remove a little fluid with a clean towel (do not contaminate it).
• Tip: Take a photo of each side before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the factory jack point.
• Set the vehicle down onto jack stands (rated 3-ton minimum) and lightly shake the CX-5 to confirm it’s stable.
• Remove both front wheels using a lug wrench or 21mm socket.

Step 2: Remove the front brake caliper

• Turn the steering wheel to give yourself more room (left for right side, right for left side).
• Use a 14mm socket and 3/8" drive ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket and hang it from the suspension using a wire hook or bungee cord (never let it hang by the hose).

Step 3: Remove old pads and caliper bracket

• Pull the old pads out of the bracket by hand. If they’re stuck, gently pry with a flathead screwdriver.
• Use a 17mm socket with a 1/2" drive breaker bar to remove the two caliper bracket bolts.
• Remove the caliper bracket and set it aside.
• Torque spec (reinstall later): Torque to 98 Nm (72 ft-lbs)

Step 4: Remove the old rotor

• Pull the rotor straight off the hub. If it’s seized, spray the hub area with brake cleaner and tap the rotor “hat” with a rubber mallet until it breaks free.
• Use a wire brush to clean rust off the hub face (this helps prevent brake vibration).

Step 5: Install the new rotor

• Clean the new rotor with brake cleaner and shop towels to remove protective oil.
• Slide the new rotor onto the hub. To hold it in place, thread on one lug nut by hand (optional) using the lug wrench or 21mm socket.

Step 6: Service the bracket hardware (clips) and slide pins

• Remove old pad hardware clips from the bracket by hand or with a flathead screwdriver.
• Clean the bracket pad “lands” where the clips sit using a wire brush, then install the new clips from the hardware/clip kit.
• Pull each slide pin out of the bracket by hand, wipe clean with shop towels, and apply a thin coat of brake caliper slide pin grease (silicone-based).
• Tip: Pins must slide smoothly with finger pressure.

Step 7: Reinstall the caliper bracket

• Position the bracket over the rotor and start both bolts by hand.
• Tighten using a 17mm socket and then a torque wrench.
• Torque to 98 Nm (72 ft-lbs)

Step 8: Compress the caliper piston

• Before compressing, check the brake fluid reservoir again.
• Use a C-clamp or disc brake piston compressor (specialty) to slowly push the caliper piston fully back in.
• A “piston compressor” is a tool that pushes the piston in evenly so the new thicker pads fit.

Step 9: Install the new pads and reinstall the caliper

• Install the new inner and outer pads into the bracket by hand (match any wear indicators the same way the old pads were installed).
• Lower the caliper over the new pads.
• Install the slide pin bolts using a 14mm socket, then torque with a torque wrench.
• Torque to 28 Nm (21 ft-lbs)

Step 10: Repeat on the other front wheel

• Repeat Steps 2–9 on the other side.
• Tip: Do one side at a time.

Step 11: Reinstall wheels and torque lug nuts

• Reinstall both wheels and snug lug nuts using a lug wrench or 21mm socket.
• Lower the CX-5 to the ground using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench.
• Torque to 108 Nm (80 ft-lbs)

---

✅ After Repair

• 🦶 Pump the brake pedal 10–15 times until it feels firm (this seats the pads against the rotors).
• 🧴 Recheck brake fluid level and top off only if needed.
• 🔍 Check for leaks and confirm the brake hose is not twisted.
• 🛣️ Perform a careful test drive: start with low-speed stops in a safe area.
• 🧼 Bed-in procedure (recommended): Make 6–10 moderate stops from 35 mph to 5 mph, driving a bit between stops to cool.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$800 (parts + labor)

DIY Cost: $180-$400 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
