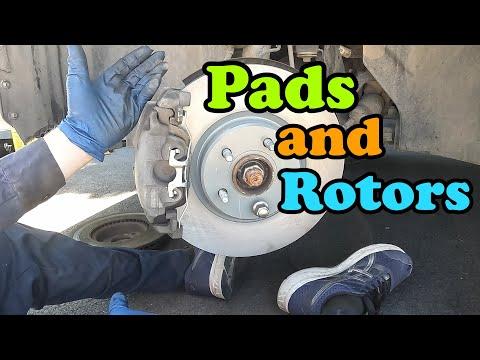

🔧 Escape - Front Brake Pad & Rotor Replacement

This repair replaces the front brake pads and front brake rotors on your Escape. Worn pads can grind, squeal, or reduce stopping power, and worn rotors can cause vibration or pulsing when braking.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on a flat, solid surface and never rely on a floor jack alone.
• ⚠️ Use jack stands before putting any part of your body near or under the vehicle.
• ⚠️ Brake dust can be harmful. Do not blow it off with compressed air; use brake cleaner.
• ⚠️ Brake fluid damages paint. Wipe spills immediately with water.
• ⚠️ The front brake caliper hose must not be stretched, twisted, or used to hang the caliper.
• ⚠️ Battery disconnect is not required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• 19mm lug nut socket
• 13mm socket
• 15mm socket
• Ratchet 3/8-inch drive
• Breaker bar 1/2-inch drive
• Torque wrench 1/2-inch drive
• C-clamp 6-inch
• Brake caliper piston compression tool (specialty)
• Flathead screwdriver
• Wire brush
• Brake cleaner spray
• Shop towels
• Bungee cord 18-inch
• Rubber mallet
• Safety glasses
• Nitrile gloves

A breaker bar is a long handle used to loosen tight bolts.

A torque wrench tightens bolts to the correct measured tightness.

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake hardware kit - Qty: 1
• Brake lubricant - Qty: 1
• Brake cleaner spray - Qty: 1-2 cans

Important: Replace front brake pads as a full axle set. Replace both front rotors together.

---

📋 Before You Begin

• 🚗 Park your Escape on level ground.
• 🚗 Shift to Park and apply the parking brake.
• 🚗 Place wheel chocks behind the rear wheels.
• 🚗 Slightly loosen the front lug nuts before lifting the vehicle.
• 🚗 Open the hood and check the brake fluid reservoir level. If it is very full, remove a small amount with a clean suction tool before compressing the calipers.
• 🚗 This front brake repair does not require an infotainment menu, scan tool, EPB service mode, ADAS calibration, or battery registration.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the Front Lug Nuts

• Use a 19mm lug nut socket and breaker bar 1/2-inch drive to loosen each front lug nut about 1/2 turn.
• Do not remove the lug nuts yet.
• Loosen wheels before lifting.

Step 2: Lift and Support the Front

• Use the floor jack rated 2-ton minimum to lift the front of your Escape at the front subframe jacking area.
• Place jack stands rated 2-ton minimum under the proper front support points.
• Lower the vehicle gently onto the jack stands.
• Use the floor jack lightly as a backup support, but do not rely on it alone.

Step 3: Remove the Front Wheels

• Use the 19mm lug nut socket and ratchet 3/8-inch drive to remove the loosened lug nuts.
• Remove both front wheels and place them flat away from the work area.

Step 4: Inspect the Brake Assembly

• Put on safety glasses and nitrile gloves.
• Look at how the brake pads, caliper, and pad clips are installed before taking them apart.
• Use brake cleaner spray and shop towels to clean loose brake dust.
• Take a photo before disassembly.

Step 5: Remove the Brake Caliper

• Use a 13mm socket and ratchet 3/8-inch drive to remove the two front caliper slide pin bolts.
• Slide the caliper off the rotor.
• Use a bungee cord 18-inch to hang the caliper from the strut spring or suspension area.
• Do not let the caliper hang by the rubber brake hose.

Step 6: Remove the Old Brake Pads

• Use a flathead screwdriver to gently pry the old brake pads out of the caliper bracket.
• Remove the old stainless pad clips from the bracket by hand or with the flathead screwdriver.
• The pad clips are thin metal guides that let the pads slide smoothly.

Step 7: Remove the Caliper Bracket

• Use a 15mm socket and breaker bar 1/2-inch drive to loosen the two caliper bracket bolts.
• Remove the bolts fully with the 15mm socket and ratchet 3/8-inch drive.
• Remove the caliper bracket and set it on a clean surface.

Step 8: Remove the Old Rotor

• Pull the rotor straight off the wheel hub by hand.
• If the rotor is stuck, tap around the rotor hat with a rubber mallet.
• Do not hit the wheel studs.
• Rust can hold rotors tightly.

Step 9: Clean the Hub Face

• Use a wire brush to clean rust from the wheel hub face.
• Spray the area with brake cleaner spray and wipe it with shop towels.
• The hub face must be clean so the new rotor sits flat and does not cause brake vibration.

Step 10: Install the New Rotor

• Clean both sides of the new rotor with brake cleaner spray and wipe dry with shop towels.
• Slide the new rotor onto the hub by hand.
• Thread one lug nut on by hand to hold the rotor flat while you work.

Step 11: Prepare the Caliper Bracket

• Use a wire brush to clean the pad clip contact areas on the caliper bracket.
• Install the new brake hardware clips by hand.
• Apply a thin layer of brake lubricant where the pad ears touch the clips.
• Do not put lubricant on the rotor surface or pad friction material.

Step 12: Reinstall the Caliper Bracket

• Position the caliper bracket over the rotor.
• Start both bracket bolts by hand to avoid cross-threading.
• Use a 15mm socket and torque wrench 1/2-inch drive to tighten the bracket bolts to Torque to 115 Nm (85 ft-lbs).

Step 13: Compress the Caliper Piston

• Place one old brake pad against the caliper piston.
• Use a C-clamp 6-inch or brake caliper piston compression tool (specialty) to slowly push the piston fully into the caliper.
• Watch the brake fluid reservoir while compressing the piston. Stop if fluid gets close to overflowing.
• The piston is the round metal part that pushes the inner brake pad.
• Go slow to protect seals.

Step 14: Install the New Brake Pads

• Install the new inner and outer brake pads into the caliper bracket by hand.
• Make sure the pad ears sit correctly in the new hardware clips.
• Apply a thin layer of brake lubricant to the back side of the pads where the caliper contacts them.
• Do not get lubricant on the pad friction surface.

Step 15: Reinstall the Brake Caliper

• Remove the bungee cord 18-inch and slide the caliper over the new pads.
• Start both caliper slide pin bolts by hand.
• Use a 13mm socket and torque wrench 1/2-inch drive to tighten the slide pin bolts to Torque to 35 Nm (26 ft-lbs).

Step 16: Repeat on the Other Front Side

• Repeat Steps 4 through 15 on the other front wheel using the same tools.
• Always replace both front sides together so braking stays even.

Step 17: Reinstall the Wheels

• Remove the temporary lug nut holding each rotor.
• Install each wheel onto the hub.
• Start all lug nuts by hand.
• Use a 19mm lug nut socket and ratchet 3/8-inch drive to snug the lug nuts in a star pattern.

Step 18: Lower and Torque the Wheels

• Use the floor jack rated 2-ton minimum to lift the vehicle slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your Escape until the tires touch the ground.
• Use a 19mm lug nut socket and torque wrench 1/2-inch drive to tighten the lug nuts in a star pattern to Torque to 135 Nm (100 ft-lbs).

Step 19: Pump the Brake Pedal

• Before starting or driving, press the brake pedal slowly several times until it feels firm.
• This seats the caliper pistons against the new pads.
• If the pedal stays soft or sinks, do not drive the vehicle.

---

✅ After Repair

• ✅ Check the brake fluid reservoir and make sure the level is between MIN and MAX.
• ✅ Start your Escape and press the brake pedal again. It should feel firm.
• ✅ Test the brakes at very low speed before normal driving.
• ✅ Listen for scraping, grinding, or clicking noises.
• ✅ Recheck lug nut torque after the first short drive.
• ✅ Break in the new pads and rotors with 8-10 moderate stops from about 30-40 mph, allowing cooling time between stops.
• ✅ Avoid hard braking for the first 200 miles unless it is an emergency.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $120-$280 (parts only)

You Save: $230-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
