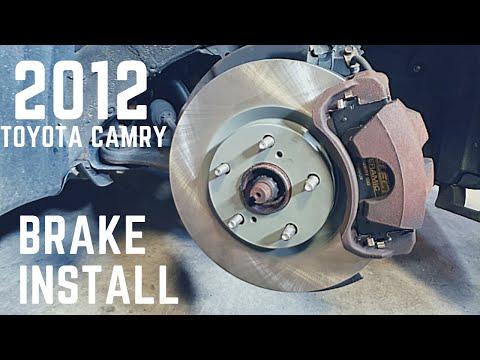

🔧 Camry - Front Brake Pads & Rotor Replacement

Replacing your front brake pads and rotors restores stopping power and prevents vibration, squealing, and uneven braking. You’ll remove the front wheels, swap the pads/rotors, then torque everything back to spec and bed-in the new pads.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the car with jack stands—never rely on a floor jack alone.
• 🧤 Wear gloves and safety glasses; brake dust and cleaner are harsh.
• 🔥 Brakes can be very hot; let them cool before touching.
• 🚫 Do not press the brake pedal while a caliper is off (it can push the piston out).
• 🔋 Hybrid note: no high-voltage disconnect is needed for this job, but keep the car OFF and keep the smart key away so the system can’t “wake up.”
• 🧴 Brake fluid damages paint—wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 14mm socket
• 17mm socket
• Ratchet
• Breaker bar
• Torque wrench (20-150 ft-lbs range)
• C-clamp brake piston compressor
• Bungee cord
• Flathead screwdriver
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Shop towels
• Small wire hook or pick tool
• Funnel
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Disc brake caliper grease (silicone brake lube) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, steering wheel straight, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. Do not remove it yet, but be ready to watch the fluid level (it can rise when you compress the pistons).
• Tip: Take a photo of each side before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Break the lug nuts loose

• Use a 21mm socket with a breaker bar to loosen the front lug nuts about 1/2 turn (do not remove them yet).

Step 2: Lift and support the front end

• Use a floor jack to lift the front of your Camry at the proper front jack point.
• Set the car down onto jack stands and give the car a gentle shake to confirm it’s stable.

Step 3: Remove the front wheels

• Use a 21mm socket and ratchet to remove the lug nuts.
• Remove the wheels and place them under the car as an extra safety backup.

Step 4: Remove the brake caliper (do not hang it by the hose)

• Turn the steering slightly to give yourself room to work.
• Use a 14mm socket and ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket.
• Hang the caliper with a bungee cord from the strut spring. (A bungee cord supports the caliper so the rubber brake hose isn’t strained.)

Step 5: Remove the old pads and hardware

• Remove the brake pads from the bracket by hand. If stuck, use a flathead screwdriver gently to pry.
• Use a small wire hook or pick tool to remove the stainless pad clips (hardware) from the bracket.
• Spray the bracket area with brake cleaner spray and wipe with shop towels.

Step 6: Remove the caliper bracket

• Use a 17mm socket with a breaker bar to remove the two caliper bracket bolts.
• Set the bracket aside.
• When reinstalling later: Torque to 107 Nm (79 ft-lbs).

Step 7: Remove the old rotor

• Pull the rotor straight off the hub. If it’s stuck from rust, tap around the rotor “hat” with a rubber mallet until it loosens.
• Use a wire brush to clean rust off the hub face (where the rotor sits). This helps prevent brake pulsation.

Step 8: Install the new rotor

• Spray the new rotor braking surfaces with brake cleaner spray and wipe with shop towels (new rotors often have protective oil).
• Install the new rotor onto the hub.
• Tip: Hold it with one lug nut finger-tight.

Step 9: Reinstall the caliper bracket with new hardware

• Install the caliper bracket back over the rotor.
• Use a 17mm socket and ratchet to start the bolts by hand, then tighten.
• Use a torque wrench: Torque to 107 Nm (79 ft-lbs).
• Install the new pad hardware clips into the bracket (they “snap” into place).

Step 10: Compress the caliper piston

• Check the brake fluid level at the reservoir under the hood. If it’s near the top, remove a little fluid first to prevent overflow (use shop towels to protect paint).
• Use a C-clamp brake piston compressor to slowly press the caliper piston back in until it’s fully seated. (A piston compressor pushes the piston back so thicker new pads fit.)
• Go slowly and smoothly so you don’t damage the piston seal.

Step 11: Install the new pads

• Apply a thin layer of disc brake caliper grease to the pad “ears” where they slide on the hardware clips.
• Install the inner and outer pads into the bracket.
• Make sure the pads slide freely; if they bind, re-clean the bracket areas with brake cleaner spray and a wire brush.

Step 12: Reinstall the caliper

• Place the caliper over the new pads.
• Install the caliper slide pin bolts using a 14mm socket and ratchet.
• Use a torque wrench: Torque to 34 Nm (25 ft-lbs).

Step 13: Repeat on the other front side

• Do the exact same steps on the other front wheel.
• Tip: Only do one side at a time.

Step 14: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench with a 21mm socket to tighten lug nuts in a star pattern: Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• 🦶 With the car still OFF, press the brake pedal 10-15 times until it feels firm (this seats the pistons against the new pads).
• 🧴 Check the brake fluid reservoir level and top off with DOT 3 if needed (do not overfill).
• 🔍 Look behind both front wheels for any brake fluid leaks.
• 🚗 Do a slow test drive in a safe area. Confirm no pulling, grinding, or warning lights.
• 🔥 Pad bed-in (break-in): make 8-10 medium stops from ~35 mph down to ~5 mph, allowing a little cooling between stops. Avoid hard panic stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
