🔧 Wrangler - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake caliper and bracket, swap the rotor, then install new pads and reassemble with the correct torque. Doing both sides together is important for even braking and safety.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support your Wrangler with jack stands—never rely on a jack.
• ⚠️ Brake dust is harmful—use brake cleaner, don’t blow with compressed air.
• ⚠️ Do not let the brake caliper hang by the hose—support it with a hanger.
• ⚠️ Keep brake fluid off paint; wipe spills immediately.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, pair)
• Wheel chocks
• 19mm socket
• 13mm socket
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10–250 ft-lbs range)
• C-clamp (6" minimum)
• Flat-blade screwdriver
• Wire brush
• Rubber mallet
• Brake parts cleaner spray
• Drain pan
• Mechanic’s gloves
• Safety glasses
• Caliper hanger hook

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper grease (high-temp silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, transmission in P, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Crack the front lug nuts loose before lifting using a 19mm socket and breaker bar.
• Open the hood and check the brake fluid level; if it’s near “MAX,” siphon a little into a drain pan so it doesn’t overflow when compressing pistons.
• “Caliper piston” is the round plunger that pushes pads.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front axle.
• Place jack stands (rated 3-ton minimum, pair) under the axle tubes and lower onto them.
• Confirm stability by gently shaking the vehicle.

Step 2: Remove the front wheels

• Remove lug nuts using a 19mm socket and ratchet.
• Set wheels aside.

Step 3: Remove the brake caliper (do not open the hose)

• Turn the steering wheel for better access to the caliper on the side you’re working on.
• Remove the caliper slide pin bolts using a 13mm socket and ratchet.
• Use a flat-blade screwdriver to gently pry the caliper away from the pads if it’s tight.
• Hang the caliper with a caliper hanger hook so the hose is not strained.
• The “slide pins” are the two bolts the caliper moves on.

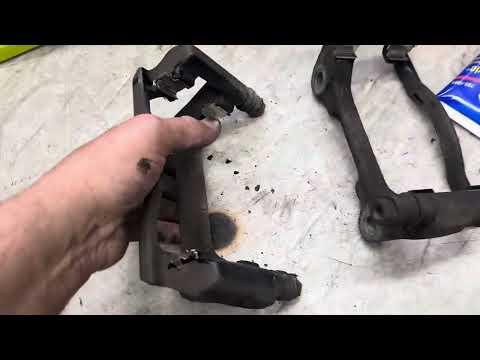

Step 4: Remove the caliper bracket

• Remove the bracket bolts using a 21mm socket and breaker bar.
• Set the bracket aside.

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If the rotor is rust-stuck, tap around the rotor “hat” with a rubber mallet until it loosens.

Step 6: Clean the hub face (prevents vibration)

• Use a wire brush to clean rust off the hub where the rotor sits.
• Spray the area with brake parts cleaner spray and let it dry.
• Apply a very thin film of anti-seize compound to the hub face (avoid studs).
• Clean metal-to-metal contact helps prevent brake pulsation.

Step 7: Install the new rotor

• Clean the new rotor with brake parts cleaner spray to remove shipping oil.
• Slide the rotor onto the hub.
• If needed, hold it in place with one lug nut hand-tight using a 19mm socket.

Step 8: Reinstall the caliper bracket

• Reinstall the bracket and start bolts by hand.
• Tighten using a 21mm socket and torque wrench.
• Torque to 169 Nm (125 ft-lbs)

Step 9: Install new pad hardware and pads

• Remove old pad clips from the bracket.
• Clean the bracket pad “lands” with a wire brush (where the clips sit).
• Install new clips from the front pad hardware/clip kit.
• Apply a light coat of brake caliper grease (high-temp silicone) to clip contact points (not pad friction material).
• Slide the new pads into place.

Step 10: Compress the caliper piston

• Place an old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly press the piston back into the caliper.
• Go slow and watch the brake fluid reservoir for rising level.

Step 11: Reinstall the caliper

• Position the caliper over the new pads.
• Install slide pin bolts using a 13mm socket and torque wrench.
• Torque to 30 Nm (22 ft-lbs)

Step 12: Repeat on the other front side

• Repeat Steps 3–11 on the other front wheel.
• Always replace pads/rotors in pairs.

Step 13: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-start lug nuts.
• Lower the Wrangler off the stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a 19mm socket and torque wrench.
• Torque to 129 Nm (95 ft-lbs)

---

✅ After Repair

• Pump the brake pedal 10–15 times before driving until it feels firm (this seats the pads).
• Check brake fluid level and top up with DOT 3 if needed.
• Do a slow test drive and confirm no pulling, grinding, or warning lights.
• Bed-in procedure (safe road): do 6–10 moderate stops from ~40 to ~10 mph, allowing a little cooling between stops; avoid hard stops for the first 200 miles.
• If the pedal feels spongy, you may need a brake bleed (air in system).

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor)

DIY Cost: ₹6,000–₹18,000 (parts only)

You Save: ₹6,000–₹10,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000–₹2,500/hour. This repair takes a shop approximately 1.5–2.5 hours.

---
