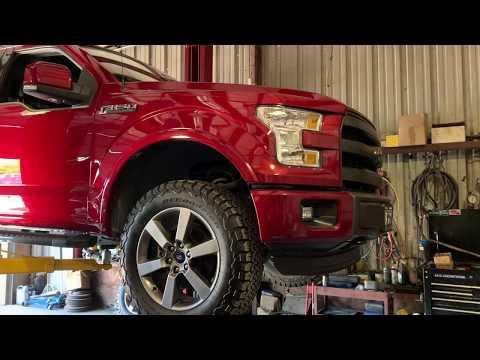

🔧 Front Brakes & Rotors - Replacement

Your front pads and rotors wear together, so replacing both at the same time restores stopping power and keeps the brake pedal feel smooth. On your F-150, the job is straightforward, but the caliper bracket bolts are tight and the truck is heavy, so safe lifting matters.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on level ground only. Chock the rear wheels before lifting the front.
• Use jack stands. Never rely on a floor jack alone.
• Let the brakes cool before starting. Rotors and calipers can be very hot.
• Do not press the brake pedal with a caliper removed.
• Support each caliper with wire or a hook so the brake hose is not stretched.
• Brake dust can be harmful. Use brake cleaner, not compressed air.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 13mm socket
• 15mm socket
• Ratchet
• Breaker bar
• Torque wrench
• C-clamp
• Flat-blade screwdriver
• Bungee cord or mechanic’s wire
• Wire brush
• Brake cleaner
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1 set
• Front brake rotors - Replace in pairs - Qty: 2
• Brake hardware kit - Qty: 1 set
• Brake caliper grease - Qty: 1
• Brake cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Put the transmission in Park.
• Chock the rear wheels.
• Loosen the front lug nuts slightly before lifting.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen and lift the front of the truck

• Use a 21mm socket to loosen the front lug nuts, but do not remove them yet.
• Use a floor jack to lift the front of the truck at the proper front lift point.
• Set the truck down onto jack stands and make sure it is stable before working.

Step 2: Remove the wheel

• Use the 21mm socket to remove the lug nuts.
• Remove the wheel and set it aside.

Step 3: Remove the caliper

• Use a 13mm socket to remove the caliper slide pin bolts.
• Lift the caliper off the bracket.
• Hang the caliper with bungee cord or mechanic’s wire.
• Do not let the hose carry the weight.

Step 4: Remove the brake pads and hardware

• Slide the old pads out of the bracket.
• Remove the pad hardware clips from the bracket.
• Use a wire brush to clean rust and buildup from the bracket lands.

Step 5: Remove the caliper bracket

• Use a 15mm socket and breaker bar to remove the caliper bracket bolts.
• Remove the bracket from the steering knuckle.
• Tighten on assembly: Torque to 250 Nm (184 ft-lbs).

Step 6: Remove the rotor

• If equipped, remove the rotor retaining screw with a flat-blade screwdriver.
• Pull the rotor straight off the hub.
• If it is stuck, tap the rotor hat lightly from behind.

Step 7: Clean the hub and install the new rotor

• Use a wire brush and brake cleaner to clean the hub face.
• Install the new rotor.
• If the screw was removed, reinstall it and snug it down.
• Tighten rotor retaining screw: Torque to 3 Nm (27 in-lbs).

Step 8: Install the caliper bracket and new hardware

• Install the caliper bracket onto the knuckle.
• Use a 15mm socket to install the bracket bolts.
• Tighten to 250 Nm (184 ft-lbs).
• Install the new pad hardware clips from the brake hardware kit.

Step 9: Install the new pads

• Apply a thin layer of brake caliper grease to the pad contact points and hardware only.
• Install the new inner and outer pads into the bracket.
• Keep grease off the rotor and friction material.

Step 10: Compress the caliper piston and reinstall the caliper

• Use a C-clamp to slowly push the caliper piston back into the bore.
• Reinstall the caliper over the new pads.
• Use a 13mm socket to install the slide pin bolts.
• Tighten to 35 Nm (26 ft-lbs).

Step 11: Reinstall the wheel

• Put the wheel back on.
• Install the lug nuts hand-tight first.
• Lower the truck to the ground.
• Use a torque wrench and 21mm socket to tighten the lug nuts in a star pattern.
• Tighten to 204 Nm (150 ft-lbs).

---

✅ After Repair

• Press the brake pedal slowly several times until it feels firm.
• Check brake fluid level and top off if needed.
• Test the brakes at low speed first.
• Listen for rubbing, clicking, or grinding.
• For the first 200 miles, avoid hard stops when possible.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
