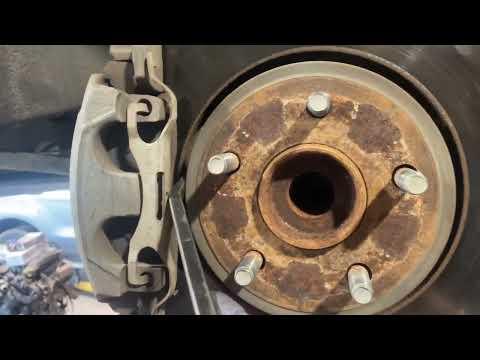

🔧 Grand Cherokee - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake calipers, swap the rotors, then install new front brake pads and reassemble with the correct torque. This restores stopping power and prevents vibration/pulsation caused by worn or warped rotors.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Work on level ground and support the Grand Cherokee with jack stands—never rely on a jack alone.
• 🛑 Let brakes cool fully; hot rotors/calipers can burn you.
• 🛑 Don’t press the brake pedal while a caliper is off the rotor (it can push the piston out).
• 🛑 Don’t let the caliper hang by the rubber brake hose—support it with a hook/bungee.
• 🛑 Brake dust is harmful—use brake cleaner, not compressed air.
• 🛑 Battery disconnect is not required for this front brake job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug wrench
• Torque wrench (20-200 ft-lbs range)
• Socket set (8mm-21mm)
• Ratchet
• Breaker bar (1/2")
• C-clamp (6")
• Flathead screwdriver
• Bungee cord
• Wire brush
• Brake cleaner
• Rubber mallet
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Brake pad hardware kit (clips/shims) - Qty: 1
• Brake caliper slide pin grease (silicone) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart
• Anti-seize compound - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. If it’s near “MAX,” be ready to remove a little fluid (fluid level rises when you compress the caliper pistons).
• Loosen (don’t remove) the front lug nuts with a lug wrench before lifting the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of your Grand Cherokee at the proper front jacking point.
• Set it down onto jack stands (rated 3-ton minimum) and give the vehicle a firm shake to confirm it’s stable.
• Remove the front wheels using a lug wrench.

Step 2: Remove the caliper

• Turn the steering wheel to give yourself more access to the caliper.
• Remove the caliper guide/slide pin bolts using a ratchet and socket set (8mm-21mm).
• Carefully lift the caliper off the rotor. Support it with a bungee cord (don’t stress the hose).
• Tip: Take a quick photo of pad/clip layout.

Step 3: Remove the old pads and hardware

• Slide the brake pads out of the caliper bracket.
• Remove the pad clips/hardware from the bracket using a flathead screwdriver.
• Clean the caliper bracket pad “shelves” (where the clips sit) using a wire brush and brake cleaner.

Step 4: Remove the caliper bracket

• The caliper bracket is the larger fixed piece that the pads slide in; it bolts to the steering knuckle.
• Remove the bracket bolts using a breaker bar (1/2") and socket set (8mm-21mm).
• Set the bracket aside.
• On reassembly: Torque to 175 Nm (129 ft-lbs).

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck from rust, spray the hub area with brake cleaner and tap the rotor “hat” with a rubber mallet until it breaks loose.

Step 6: Prep the hub and install the new rotor

• Clean the hub face with a wire brush (rust here can cause rotor wobble and pedal pulsation).
• Apply a very thin film of anti-seize compound to the hub face (avoid getting any on the rotor braking surfaces).
• Clean the new rotor with brake cleaner to remove protective oil.
• Install the new rotor onto the hub.

Step 7: Service the slide pins and reinstall the caliper bracket

• Pull the caliper slide pins out (they’re the smooth pins the caliper floats on).
• Wipe them clean and apply brake caliper slide pin grease (silicone) lightly and evenly.
• Reinstall the caliper bracket using a ratchet/breaker bar (1/2") and socket set (8mm-21mm).
• Torque to 175 Nm (129 ft-lbs).

Step 8: Install new pad hardware and pads

• Install the new pad clips/hardware onto the bracket.
• Apply a light coat of brake caliper slide pin grease (silicone) where the pad ears contact the clips (keep grease off friction material).
• Install the new pads into the bracket.

Step 9: Compress the caliper piston and reinstall the caliper

• A C-clamp (6") is a screw clamp used to press the caliper piston back in slowly and evenly.
• Place an old pad against the piston face, then use the C-clamp (6") to slowly compress the piston until it bottoms out.
• Watch the brake fluid reservoir as you compress—don’t let it overflow.
• Reinstall the caliper over the new pads.
• Install and tighten the caliper slide/guide pin bolts using a ratchet and socket set (8mm-21mm).
• Torque to 38 Nm (28 ft-lbs).

Step 10: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread the lug nuts.
• Lower the vehicle using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench (20-200 ft-lbs range).
• Torque to 149 Nm (110 ft-lbs).

Step 11: Restore pedal feel and set fluid level

• Before moving the vehicle, pump the brake pedal slowly 10-15 times until it feels firm.
• Check the brake fluid reservoir and top off with brake fluid (DOT 3) if needed.

---

✅ After Repair

• Start the engine and hold the brake pedal—confirm it stays firm and doesn’t sink.
• Check around both front calipers for any signs of brake fluid leakage.
• Do a cautious test drive: verify smooth braking, no pulling, no grinding noises.
• Brake pad bed-in (recommended): do 6-10 moderate stops from ~35 mph to ~5 mph, with light driving between stops to cool. Avoid hard stops for the first 150-200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
