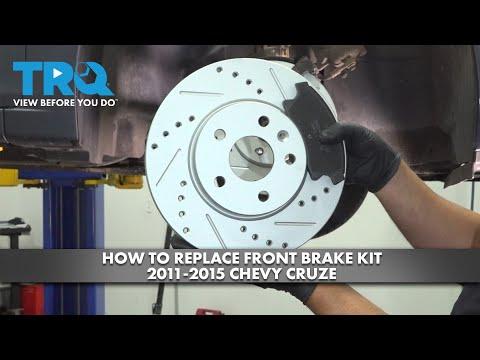

🔧 Cruze - Front Brake Pads & Rotor Replacement

You’ll be removing the front calipers, replacing the pads, and swapping the rotors on both front wheels. New pads need a smooth, flat rotor surface to stop safely and quietly, so pads and rotors are often replaced together.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Cruze with jack stands; never rely on a jack alone.
• 🛑 Brake dust is harmful—wear a dust mask and use brake cleaner, not compressed air.
• 🛑 Rotors and calipers can be hot—work on a cool car.
• 🛑 Do not let the caliper hang by the brake hose; support it with a hanger.
• 🛑 Keep brake fluid off paint; it damages finishes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Dust mask
• 19mm socket
• 13mm socket
• 18mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-200 Nm range)
• Large C-clamp
• Flathead screwdriver
• Torx T30 bit
• Bungee cord
• Wire brush
• Brake cleaner
• Rubber mallet
• Small wire pick
• Threadlocker (medium strength)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake hardware kit (abutment clips) - Qty: 1
• Brake caliper grease (silicone-based) - Qty: 1
• Brake cleaner - Qty: 1-2 cans
• DOT 3 brake fluid - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Loosen the front lug nuts slightly before lifting using a 19mm socket and breaker bar.
• Open the hood and locate the brake fluid reservoir; make sure it’s not overfilled (fluid level rises when you push the piston back).
• Assumption: Standard Cruze front single-piston calipers.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front of the car with a floor jack and support it with jack stands under the proper lift points.
• Remove lug nuts using a 19mm socket and ratchet, then remove both front wheels.
• When reinstalling later: Torque to 140 Nm (103 ft-lbs) using a torque wrench.

Step 2: Remove the caliper (do not disconnect the hose)

• Turn the steering wheel to give yourself more room at the side you’re working on.
• Pry the outer anti-rattle spring clip off the caliper using a flathead screwdriver.
• Remove the caliper slide pin bolts using a 13mm socket and ratchet.
• Lift the caliper off the bracket and hang it from the strut spring using a bungee cord.
• A “slide pin” is the bolt the caliper glides on.

Step 3: Remove old pads and caliper bracket

• Pull the old pads out of the bracket by hand.
• Remove the caliper bracket bolts using an 18mm socket and breaker bar.
• Set the bracket aside.
• When reinstalling later: apply threadlocker (medium strength) and Torque to 115 Nm (85 ft-lbs) using a torque wrench.

Step 4: Remove the rotor

• If your rotor has a retaining screw, remove it using a Torx T30 bit and ratchet.
• Pull the rotor off the hub. If it’s stuck, tap around the rotor “hat” with a rubber mallet to break rust loose.
• When reinstalling later (if equipped): Torque to 9 Nm (80 in-lbs) using a torque wrench.

Step 5: Clean the hub and prep the new rotor

• Clean the hub face with a wire brush until it’s smooth and flat (rust here can cause brake pulsation).
• Spray the new rotors thoroughly with brake cleaner and wipe dry to remove packing oil.
• Install the new rotor onto the hub (reinstall the retaining screw if equipped using Torx T30 bit).

Step 6: Service the bracket and install new hardware

• Remove the old abutment clips (pad “slides”) from the bracket using a flathead screwdriver.
• Clean the bracket pad lands with a wire brush and a light spray of brake cleaner.
• Install the new abutment clips from the hardware kit.
• Apply a very thin film of brake caliper grease where the pad ears touch the clips (do not get grease on rotor or pad friction).
• “Abutment clips” are the stainless pad guides.

Step 7: Reinstall the bracket

• Position the bracket over the new rotor.
• Install the bracket bolts using an 18mm socket and ratchet.
• Final tighten: Torque to 115 Nm (85 ft-lbs) using a torque wrench.

Step 8: Compress the caliper piston

• Place an old pad against the piston face (to spread force evenly).
• Use a large C-clamp to slowly press the piston fully back into the caliper.
• Check the brake fluid reservoir level as you compress; remove a little fluid if it looks like it may overflow.
• Go slow to protect seals.

Step 9: Install new pads and reinstall the caliper

• Install the new pads into the bracket by hand.
• Apply a small amount of brake caliper grease to the caliper slide pin contact areas (not the threads).
• Set the caliper over the pads and start the slide pin bolts by hand.
• Tighten slide pin bolts using a 13mm socket and ratchet, then: Torque to 30 Nm (22 ft-lbs) using a torque wrench.
• Reinstall the anti-rattle spring clip using a flathead screwdriver.

Step 10: Repeat on the other front wheel

• Repeat Steps 2 through 9 on the opposite side.
• Try to keep left and right parts separate if anything is reused (but rotors/pads should be new on both sides).

Step 11: Reinstall wheels and lower the car

• Reinstall both wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Final tighten lug nuts in a star pattern: Torque to 140 Nm (103 ft-lbs) using a torque wrench.

---

✅ After Repair

• Press the brake pedal slowly 10-15 times before driving until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and top off with DOT 3 brake fluid if needed.
• With the engine running, hold the brake and confirm the pedal stays firm (no sinking).
• Test drive at low speed first; listen for grinding or pulling.
• Pad bedding (break-in): make 8-10 moderate stops from 40 mph to 10 mph, with short cool-down between stops. Avoid hard panic stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $160-$320 (parts only)

You Save: $290-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
