🔧 Front Brake Pads & Rotors - Replacement

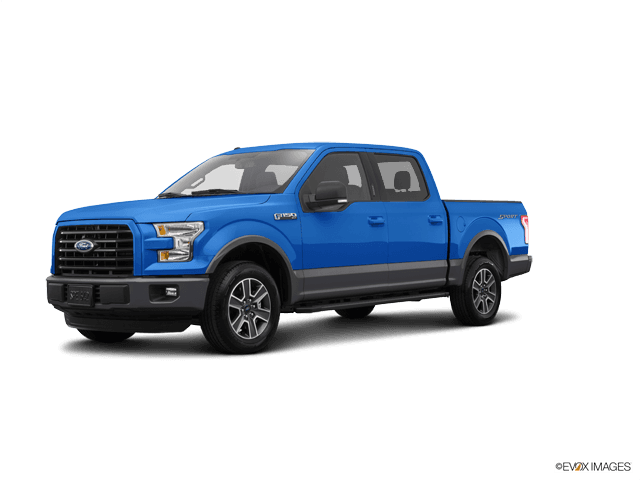

The front brakes on your F-150 use a floating caliper and separate rotor, so you’ll remove the caliper, slide the old pads out, swap the rotor, then compress the caliper piston and reassemble. This is a straightforward job, but clean hardware and correct torque matter for safe braking and no squeaks.

Difficulty Level: Beginner | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on level ground and chock the rear wheels before lifting the truck.
• Use jack stands under the frame. Never rely on the floor jack alone.
• Do not press the brake pedal with the caliper removed.
• Front brakes create brake dust. Avoid blowing it off with compressed air.
• Use brake cleaner only on brake parts. Keep it off rubber boots and painted surfaces.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 21mm lug wrench or socket
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 15mm socket
• 18mm socket
• 3/8-inch ratchet
• 1/2-inch breaker bar
• Torque wrench
• C-clamp or brake caliper piston tool (specialty)
• Bungee cord or mechanic's wire
• Wire brush
• Brake cleaner
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake hardware kit - Qty: 1
• Brake cleaner - Qty: 1
• Brake grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Loosen the front lug nuts slightly before lifting the truck.
• Turn the steering wheel to give yourself better access to the side you’re working on.
• If the replacement pads came with new hardware, use it. Fresh hardware helps prevent noise.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheel

• Use the floor jack to lift the front of the truck at a safe lift point.
• Place jack stands under the frame and lower the truck onto them.
• Use the 21mm lug wrench or socket to remove the wheel.
• Set the wheel aside flat so it cannot roll.

Step 2: Remove the caliper

• Use the 15mm socket to remove the caliper slide bolts.
• Lift the caliper off the bracket carefully.
• Hang the caliper with a bungee cord or mechanic's wire. Do not let it dangle by the brake hose.

Step 3: Remove the old pads and bracket

• Slide the old brake pads out of the bracket.
• Use the 18mm socket to remove the caliper bracket bolts.
• Remove the bracket from the knuckle and set it aside.

Step 4: Remove the rotor

• If the rotor is stuck, tap it gently from the back side.
• Use the wire brush to clean rust from the hub face.
• Spray the hub face with brake cleaner and wipe it dry.
• Clean hub = smoother rotor install.

Step 5: Install the new rotor

• Clean the new rotor with brake cleaner before installing it.
• Slide the rotor onto the hub and make sure it sits flush.

Step 6: Reinstall the caliper bracket and pads

• Reinstall the caliper bracket using the 18mm socket.
• Torque to 184 Nm (136 ft-lbs).
• Install the new hardware clips if included.
• Apply a thin layer of brake grease to the pad contact points and slide areas only. Do not grease the friction surface.
• Install the new pads into the bracket.

Step 7: Compress the caliper piston and reinstall the caliper

• Use a C-clamp or brake caliper piston tool to push the piston fully back into the caliper.
• Go slow to avoid damaging seals.
• Reinstall the caliper over the new pads.
• Install the slide bolts with the 15mm socket.
• Torque to 32 Nm (24 ft-lbs).

Step 8: Reinstall the wheel

• Put the wheel back on and hand-tighten the lug nuts.
• Lower the truck enough so the tire touches the ground.
• Use the 21mm lug wrench or socket to snug the lug nuts in a star pattern.
• Torque to 204 Nm (150 ft-lbs).

Step 9: Repeat on the other front side

• Replace the pads and rotor on the other side using the same steps.
• Replace both front rotors and pads as a set.

---

✅ After Repair

• Before driving, pump the brake pedal several times until it feels firm.
• Check brake fluid level in the reservoir and top off only if needed.
• Test the brakes at low speed in a safe area first.
• Expect a short break-in period for the new pads and rotors.
• If you hear rubbing or grinding, stop and recheck pad placement and hardware.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
