🔧 Equinox - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, taking off the brake calipers and brackets, swapping the rotors, and installing new pads on your Equinox. This restores stopping power and prevents vibration or grinding.

Difficulty Level: Beginner/Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always support the vehicle with jack stands; never rely only on a floor jack.
• 🛑 Work on level, solid ground with the transmission in Park and parking brake set.
• 🛑 Wear safety glasses and mechanic gloves; brake dust and sharp edges can injure you.
• 🛑 Do not press the brake pedal with a caliper removed; it can push the piston out.
• 🛑 Brake cleaner is flammable and irritating; use in a well‑ventilated area.
• 🛑 Keep grease and oil off the rotor friction surface and pad faces.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum), Qty: 2
• 🧰 19mm lug wrench or 19mm socket
• 🧰 Breaker bar 1/2" drive
• 🧰 Ratchet 3/8" drive
• 🧰 Ratchet 1/2" drive
• 🧰 14mm socket
• 🧰 18mm socket
• 🧰 Flathead screwdriver (medium)
• 🧰 C-clamp 6" or disc brake piston tool
• 🧰 Bungee cord or wire hanger
• 🧰 Wire brush (small, steel)
• 🧰 Torque wrench 3/8" drive (up to 40 ft-lbs)
• 🧰 Torque wrench 1/2" drive (up to 150 ft-lbs)
• 🧰 Shop rags
• 🧰 Safety glasses
• 🧰 Mechanic gloves
• 🧰 Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Front brake pad set - Qty: 1 set (both front wheels)
• 🧱 Front brake rotors - Qty: 2 (replace in pairs)
• 🧱 High-temperature silicone brake grease - Qty: 1 tube
• 🧱 Brake cleaner spray - Qty: 1–2 cans
• 🧱 New front brake hardware kit (pad clips/shims) - Qty: 1 set
• 🧱 Anti-seize compound - Qty: small tube
• 🧱 Shop towels - Qty: as needed

---

📋 Before You Begin

• 🧭 Park the Equinox on level ground, set the parking brake, and put the shifter in Park.
• 🧭 Place wheel chocks behind the rear wheels to prevent rolling.
• 🧭 Slightly loosen (crack loose) the front wheel lug nuts with the 19mm lug wrench before lifting the vehicle.
• 🧭 Have a clean area ready to lay out old and new parts so you can match them.
• 🧭 Keep the hood open so you can see the brake fluid reservoir; the level may rise as you push pistons back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and support the front of the vehicle

• Use the floor jack at the front center jacking point or one side pinch weld (check your owner’s manual for the exact spot).
• Raise the front of the Equinox until both front wheels are off the ground.
• Place jack stands securely under the front pinch welds or frame points, then slowly lower the vehicle onto the stands with the floor jack.
• Give the vehicle a shake test before going under.

Step 2: Remove front wheels

• Use the 19mm socket and ratchet or lug wrench to remove the lug nuts completely.
• Remove both front wheels and set them aside.
• Keep lug nuts together so none get lost.

Step 3: Inspect the brake setup

• Look at the caliper (the clamp), bracket (holds caliper), rotor (disc), and pads.
• Note how the pads and any clips or shims are installed; you will copy this with the new parts.

Step 4: Remove the caliper (do not let it hang)

• On the back of the caliper, locate the two guide pin bolts (top and bottom).
• Use a 14mm socket and 3/8" ratchet to loosen and remove both guide pin bolts.
• Gently pry the caliper away from the rotor using a flathead screwdriver if needed.
• Hang the caliper from the spring or strut with a bungee cord or wire hanger so the brake hose is not stretched.
• Never let the caliper hang by the hose.

Step 5: Remove the old brake pads

• Slide the inner and outer pads out of the caliper bracket by hand.
• Note any shims or clips attached to the pads and how they are oriented.

Step 6: Remove the caliper bracket

• Locate the two large caliper bracket bolts on the backside of the steering knuckle.
• Use an 18mm socket, breaker bar, and 1/2" drive to loosen and remove these two bolts; they may be tight.
• Remove the caliper bracket and set it on a clean surface.
• Reinstallation torque for caliper bracket bolts: 133 Nm (98 ft-lbs)

Step 7: Remove the rotor

• If the rotor is stuck from rust, spray the hub area with brake cleaner and let it soak briefly.
• Tap the rotor hat (the flat center area) from behind using the palm of your hand or a soft mallet until it loosens, then pull it straight off the hub.
• Avoid hitting the wheel studs directly.

Step 8: Clean the hub and prepare new rotor

• Use the wire brush to clean rust and debris from the face of the hub where the rotor sits. The surface must be flat and clean.
• Wipe the hub with a shop rag and a little brake cleaner.
• Spray the new rotor (both sides) with brake cleaner to remove the oily coating, then dry with clean rags.
• Apply a very thin film of anti-seize compound to the hub face only, not the rotor surface.

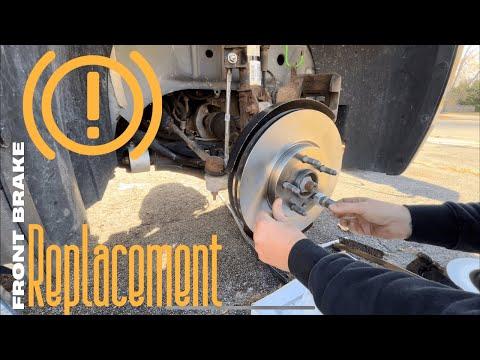

Step 9: Install the new rotor

• Place the new rotor onto the hub, aligning the rotor holes with the wheel studs.
• To keep the rotor from wobbling, thread on one lug nut by hand using the 19mm socket to hold it snug while you work (do not fully tighten).

Step 10: Service the caliper bracket and hardware

• Remove the old pad clips from the caliper bracket.
• Use the wire brush to clean the areas where the clips sit until bare metal is visible.
• Install new pad clips from your hardware kit onto the bracket, making sure they snap fully into place.
• Remove the caliper guide pins from the bracket (one at a time), wipe off old grease with a rag, and inspect the rubber boots.
• Apply a thin layer of high-temperature silicone brake grease to each guide pin and reinsert, ensuring they move smoothly.

Step 11: Reinstall the caliper bracket

• Position the caliper bracket over the new rotor and line up the bolt holes.
• Install the two bracket bolts by hand to avoid cross-threading.
• Use an 18mm socket and 1/2" ratchet to snug them, then use the 1/2" torque wrench to tighten.
• Tighten caliper bracket bolts to 133 Nm (98 ft-lbs)

Step 12: Install new brake pads

• Apply a very thin smear of brake grease to the metal backing plates where they contact the clips and to any pad ears that touch the bracket. Do not get grease on the pad friction surface.
• Install the inner and outer pads into the caliper bracket, matching the orientation of the old ones. Many sets have a wear indicator on one pad; install it in the same position as the old pad (usually inner side).

Step 13: Compress the caliper piston

• Place an old brake pad against the caliper piston face.
• Use a C-clamp to slowly compress the piston back into the caliper housing until it is fully seated. Go slowly and watch the brake fluid reservoir under the hood to be sure it does not overflow.
• If fluid gets close to the top, remove a little with a clean syringe or turkey baster.

Step 14: Reinstall the caliper over new pads

• Position the caliper over the new pads and align it with the caliper bracket.
• Reinstall the guide pin bolts by hand.
• Use a 14mm socket and 3/8" ratchet to snug the guide pin bolts, then use the 3/8" torque wrench to tighten.
• Tighten caliper guide pin bolts to 32 Nm (24 ft-lbs)

Step 15: Repeat on the other side

• Repeat Steps 4–14 on the other front wheel.
• Always replace pads and rotors on both sides together.

Step 16: Reinstall wheels and lower the vehicle

• Remove the temporary lug nut holding the rotor.
• Mount each wheel back on the hub and hand-thread the lug nuts.
• Use the 19mm socket and ratchet to snug the lug nuts in a star pattern.
• Use the floor jack to raise the vehicle slightly, remove the jack stands, then lower the vehicle to the ground.
• With the vehicle on the ground, use the 1/2" torque wrench and 19mm socket to torque each lug nut in a star pattern.
• Tighten wheel lug nuts to 140 Nm (103 ft-lbs)

Step 17: Pump the brake pedal and check fluid

• Before driving, sit in the driver’s seat and slowly pump the brake pedal several times until it feels firm. This seats the pads against the rotors.
• Check the brake fluid level in the reservoir and adjust if needed to the MAX line.

---

✅ After Repair

• 🚗 With the engine running, press the brake pedal; it should feel firm and not sink to the floor.
• 🚗 Check around both front calipers for any fluid leaks or loose hardware.
• 🚗 Perform a short, low-speed test drive: start with gentle stops from 20–30 km/h and listen for unusual noises.
• 🚗 Bed-in (break in) the new pads: make 8–10 moderate stops from about 50–60 km/h down to 10–15 km/h, allowing the brakes to cool slightly between stops. Avoid hard panic stops at first.
• 🚗 After the test drive, recheck lug nut torque and look again for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$700 (parts + labor) for front pads and rotors on an Equinox

DIY Cost: $150–$280 (parts only)

You Save: $300–$450 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2 hours.

---
