🔧 Grand Caravan - Front Brake Pads & Rotor Replacement

Replacing your front brake pads and rotors restores stopping power and prevents pulsation (steering wheel shake) and grinding noises. You’ll remove the caliper, swap the rotor, install new pads, then torque everything correctly so it’s safe and quiet.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support your Grand Caravan with jack stands; never rely on a jack alone.
• 🛑 Brake dust is harmful—use brake cleaner, not compressed air.
• 🛑 Brakes get hot—work on a cool vehicle.
• 🛑 Keep brake fluid off paint; it can damage the finish.
• 🛑 Do not press the brake pedal while the caliper is off the rotor.
• 🛑 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 13mm socket
• 18mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-200 ft-lbs range)
• C-clamp brake piston compressor
• Flat-blade screwdriver
• Bungee cord
• Wire brush
• Rubber mallet
• Brake cleaner spray
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2 Replace in pairs
• Brake caliper hardware kit (clips) - Qty: 1
• Brake lubricant (silicone/ceramic) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Loosen (crack) the front lug nuts 1/2 turn with a 21mm socket before lifting.
• Open the hood and loosen the brake fluid reservoir cap (do not remove it completely). This helps the pistons push back easier.
• Assumption: Typical Grand Caravan front fasteners are 13mm caliper bolts and 18mm bracket bolts; torque specs below reflect common OEM values for this platform.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Use a floor jack to lift the front of the van at the proper front jacking point.
• Place jack stands under the front support points and lower onto them.
• Remove the lug nuts using a 21mm socket and take off the wheels.

Step 2: Remove the caliper (the “clamp” that squeezes the pads)

• Turn the steering wheel to give yourself more room on the side you’re working on.
• Use a flat-blade screwdriver to gently pry the caliper slightly outward to create a little space.
• Remove the two caliper slide pin bolts using a 13mm socket and 3/8" drive ratchet.
• Lift the caliper off the bracket and hang it from the strut spring using a bungee cord (do not let it hang by the hose).

Step 3: Remove the old pads and hardware clips

• Pull the old pads out by hand.
• Remove the stainless hardware clips from the bracket by hand or with a flat-blade screwdriver.
• Clean the bracket pad “shelves” (where the clips sit) using a wire brush and brake cleaner spray.
• Tip: Clean metal = pads slide freely.

Step 4: Remove the caliper bracket (the pad “frame”)

• Remove the two caliper bracket bolts using an 18mm socket and a 1/2" drive breaker bar.
• Set the bracket aside on a rag.
• Torque to 136 Nm (100 ft-lbs) when reinstalling.

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck from rust, spray the center hub area with brake cleaner spray, then tap the rotor “hat” area with a rubber mallet until it breaks free.
• Clean the hub face with a wire brush so the new rotor sits flat.
• Tip: A dirty hub can cause brake pulsation.

Step 6: Install the new rotor

• Spray the new rotor with brake cleaner spray and wipe with shop rags to remove shipping oil.
• Slide the new rotor onto the hub.
• To hold it in place, thread on one lug nut by hand (use your 21mm socket only if needed).

Step 7: Reinstall the bracket and new hardware clips

• Install the bracket over the new rotor and start the bolts by hand.
• Tighten the bracket bolts using an 18mm socket and 1/2" drive ratchet.
• Final tighten with a torque wrench: Torque to 136 Nm (100 ft-lbs).
• Snap the new hardware clips into the bracket.

Step 8: Compress the caliper piston

• Place one old pad against the piston face.
• Use a C-clamp brake piston compressor to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing; remove fluid if it looks like it will overflow using shop rags for protection.
• C-clamp note: It’s a screw clamp used to press the piston back.

Step 9: Install the new pads

• Apply a thin layer of brake lubricant (silicone/ceramic) to the pad “ears” where they contact the hardware clips.
• Install the new inner and outer pads into the bracket.
• Do not get lubricant on pad friction material or rotor surfaces—clean with brake cleaner spray if you do.

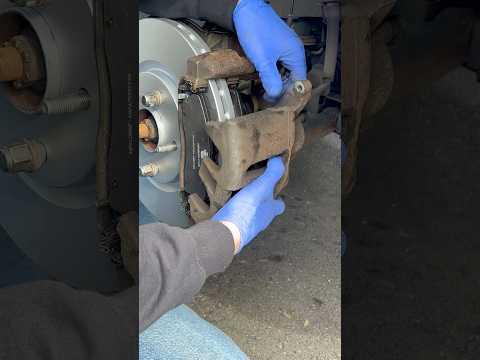

Step 10: Reinstall the caliper

• Place the caliper over the new pads and align the slide pin bolt holes.
• Install the caliper bolts using a 13mm socket and 3/8" drive ratchet.
• Final tighten with a torque wrench: Torque to 35 Nm (26 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the van off the jack stands using the floor jack.
• Torque lug nuts in a star pattern using a torque wrench and 21mm socket: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• With the engine OFF, pump the brake pedal 10–15 times until it feels firm (this seats the pads against the rotors).
• Check brake fluid level and top off with DOT 3 if needed.
• Start the engine and confirm the pedal remains firm.
• Test-drive at low speed first, then confirm normal braking with no pulling, grinding, or warning lights.
• Brake pad break-in: make 6–10 smooth stops from 35 mph to 5 mph, with 30–60 seconds between stops to cool.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$420 (parts only)

You Save: $270-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
