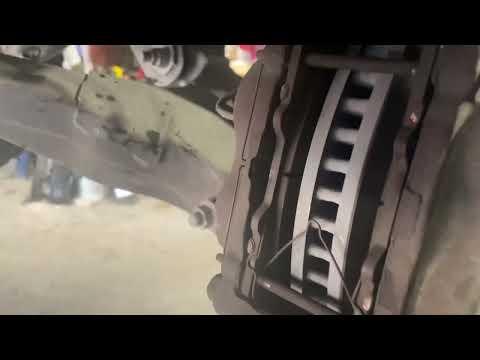

🔧 Tundra - Front Brake Pads & Rotor Replacement

On your Tundra, replacing the front brake pads and rotors restores stopping power and fixes pulsation or grinding caused by worn pads or warped rotors. You’ll remove the front wheels, take the calipers off, swap the rotors, install new pads, then torque everything back to spec.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the truck with jack stands before working underneath.
• ⚠️ Do not press the brake pedal with calipers removed.
• ⚠️ Avoid breathing brake dust; use brake cleaner, not compressed air.
• ⚠️ Brake parts get hot—work on a cool brake system.
• ⚠️ Keep brake fluid off paint; it can damage finishes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• 17mm socket
• 14mm socket
• Ratchet (1/2" drive)
• Ratchet (3/8" drive)
• Needle-nose pliers
• Flathead screwdriver
• C-clamp (6" minimum)
• Brake caliper hanger hook
• Rubber mallet
• Wire brush
• Brake cleaner spray
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad hardware kit - Qty: 1
• Brake lubricant (silicone or synthetic) - Qty: 1
• Brake cleaner - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and locate the brake fluid reservoir. You may need to remove a little fluid if it’s very full because compressing the caliper pistons can raise the level.
• Lay out parts left vs right. Rotors are usually interchangeable, but keep hardware organized.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen lug nuts and raise the front

• Use a 21mm socket and breaker bar to loosen the front lug nuts 1/2 turn while the tires are on the ground.
• Lift the front using a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the truck down onto jack stands (rated 3-ton minimum) and gently rock the truck to confirm stability.

Step 2: Remove the front wheels

• Remove the lug nuts with a 21mm socket and take both front wheels off.
• Tip: Slide wheels under frame as backup.

Step 3: Confirm which front caliper style you have

• Most Tundra front brakes use a fixed multi-piston caliper with pads retained by pins and a spring clip.
• If you instead see a single piston with two slider bolts on the back of the caliper, follow the “Slider-bolt caliper” notes inside the steps below.

Step 4: Remove the caliper from the knuckle

• Use a 17mm socket and ratchet (1/2" drive) to remove the two caliper mounting bolts (back side of caliper).
• Lift the caliper off the rotor.
• Hang the caliper using a brake caliper hanger hook so the hose is not supporting the weight.
• Torque to 123 Nm (91 ft-lbs) when reinstalling these mounting bolts.
• Tip: Never let the caliper hang by hose.

Step 5: Remove the old pads and hardware

• Fixed-caliper (pin-retained) setup (most common):
• Use needle-nose pliers to remove the pad retaining clip.
• Use a flathead screwdriver to help slide the pad pins out (you may need to wiggle the pads to relieve tension).
• Remove the pads and any anti-rattle spring/plate.
• Slider-bolt caliper note: Use a 14mm socket to remove the slider bolts, then lift the caliper off and remove pads from the bracket.

Step 6: Remove the rotor

• If the rotor is stuck, spray the hub area with brake cleaner spray and scrub rust with a wire brush.
• Tap the rotor hat with a rubber mallet to break it loose, then pull the rotor off the studs.

Step 7: Clean the hub face and install the new rotor

• Use a wire brush to clean the hub face until it’s smooth. Rust lumps here can cause pedal pulsation.
• Clean the new rotor faces with brake cleaner spray to remove protective oil.
• Install the new rotor onto the wheel studs.

Step 8: Compress the caliper pistons

• Use a C-clamp (6" minimum) to slowly push the pistons back so the new thicker pads will fit. (A C-clamp is a screw clamp that presses parts together.)
• Go slowly and watch the brake fluid reservoir level under the hood; remove excess if it’s close to overflowing.
• Tip: Compress evenly to avoid cocking pads.

Step 9: Install new pad hardware and pads

• Install new hardware from the front brake pad hardware kit in the same positions as the originals.
• Apply a thin film of brake lubricant where pads slide on hardware and at pad backing contact points (do not get any on rotor or pad friction material).
• Install the new pads in the correct orientation (inner vs outer if different).
• Fixed-caliper (pin-retained): Slide the pad pins back in and reinstall the retaining clip using needle-nose pliers.
• Slider-bolt caliper note: Reinstall the caliper and tighten the slider bolts with a 14mm socket. Torque to 34 Nm (25 ft-lbs).

Step 10: Reinstall caliper and torque fasteners

• Set the caliper back over the new pads and rotor.
• Install the caliper mounting bolts using a 17mm socket.
• Torque to 123 Nm (91 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall wheels and hand-thread lug nuts.
• Lower the truck to the ground with the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a 21mm socket and torque wrench. (A torque wrench is a tool that tightens to an exact force.)
• Torque to 177 Nm (131 ft-lbs).

Step 12: Restore brake pedal feel

• Before driving, pump the brake pedal 10-15 times until it feels firm.
• Check brake fluid level and top off with brake fluid (DOT 3) if needed.

---

✅ After Repair

• Start the engine and confirm the brake pedal remains firm.
• Test at low speed first (5-15 mph) and confirm straight braking with no noises beyond light pad bedding sounds.
• Re-check brake fluid level after the test drive.
• Brake pad bedding (recommended): do 6-8 medium stops from ~40 mph down to ~10 mph, allowing short cool-down between stops. Avoid hard stops for the first 200 miles.

---
