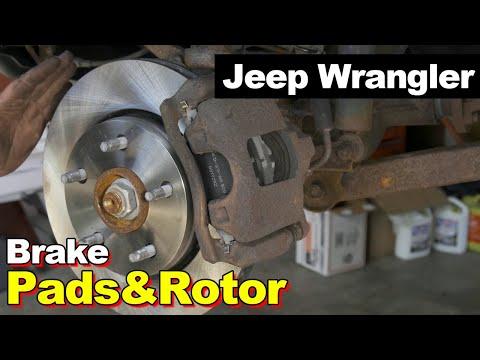

🔧 Wrangler - Front Brake Pads & Rotor Replacement

You’ll be removing the front wheels, taking the brake calipers off, replacing the pads and rotors, then reassembling everything with the correct torque. Worn pads or warped rotors can cause squealing, grinding, vibration, and longer stopping distances.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Work on level ground and support the front with jack stands before removing any wheels.
• ⚠️ Do not press the brake pedal while a caliper is off the rotor.
• ⚠️ Brake dust is harmful—use brake cleaner, not compressed air.
• ⚠️ Hang the caliper with a bungee cord; don’t let it dangle by the brake hose.
• ⚠️ Rotors and brakes can be hot—let them cool before starting.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 19mm socket
• 13mm socket
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20-250 ft-lbs range)
• C-clamp (6" or larger)
• Flathead screwdriver
• Wire brush
• Rubber mallet
• Bungee cord
• Brake cleaner
• High-temp silicone brake grease
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper slide pin boots (if damaged) - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• Park on a level surface, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Loosen the front lug nuts 1/2 turn with a 19mm socket and breaker bar before lifting.
• Open the hood and locate the brake fluid reservoir. Fluid may rise when compressing pistons.
• If the reservoir is very full, remove a small amount with a clean syringe/turkey baster (not a kitchen one).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front axle.
• Set the axle down onto jack stands (rated 3-ton minimum).
• Remove the wheels with a 19mm socket and ratchet.

Step 2: Remove the brake caliper (the part that squeezes the pads)

• Turn the steering wheel to give yourself more room on the side you’re working on.
• Remove the two caliper bolts using a 13mm socket and ratchet.
• Lift the caliper off the rotor and hang it using a bungee cord.

Step 3: Remove the old brake pads and hardware

• Slide the pads out of the bracket by hand; use a flathead screwdriver if they’re stuck.
• Remove the pad clips/hardware from the bracket with a flathead screwdriver.

Step 4: Remove the caliper bracket

• Remove the two bracket bolts using a 21mm socket and breaker bar.
• Set the bracket aside.

Step 5: Remove the rotor

• Pull the rotor straight off the wheel studs.
• If it’s stuck, tap the rotor “hat” area with a rubber mallet until it breaks free.
• Clean rust off the hub face using a wire brush. A clean hub helps prevent brake pulsation.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner and wipe clean (removes shipping oil).
• Slide the new rotor onto the studs.
• To hold it in place, thread on one lug nut by hand (temporarily).

Step 7: Prep and reinstall the caliper bracket

• Clean the pad contact areas on the bracket with a wire brush.
• Install new pad hardware/clips by hand.
• Reinstall the bracket bolts using a 21mm socket and ratchet, then tighten with a torque wrench.
• Torque to 169 Nm (125 ft-lbs)

Step 8: Compress the caliper piston

• Remove the temporary lug nut by hand.
• Place an old brake pad against the caliper piston face.
• Use a C-clamp (6" or larger) to slowly press the piston back in until it’s fully seated.
• Go slow to avoid overflowing the reservoir.

Step 9: Install the new pads and grease the correct spots

• Apply a thin film of high-temp silicone brake grease where the pad ears slide on the new clips (do not get grease on pad friction material).
• Install the inner and outer pads into the bracket by hand.

Step 10: Reinstall the caliper

• Place the caliper over the new pads and rotor.
• Install the caliper bolts using a 13mm socket and ratchet, then tighten with a torque wrench.
• Torque to 41 Nm (30 ft-lbs)

Step 11: Repeat on the other front wheel

• Perform the same steps on the other side.
• Front brakes should be replaced in pairs.

Step 12: Reinstall wheels and torque lug nuts

• Install wheels and hand-thread lug nuts.
• Lower the Wrangler off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque to 135 Nm (100 ft-lbs)

---

✅ After Repair

• With the engine OFF, pump the brake pedal slowly 10-15 times until it feels firm.
• Check the brake fluid level and top off with DOT 3 if needed.
• Start the engine and press the brake pedal again—confirm firm pedal feel.
• Test drive at low speed first. Confirm no pulling, grinding, or vibration.
• Pad bedding (recommended): make 6-10 smooth stops from ~35 to 5 mph, letting brakes cool briefly between stops. Avoid hard panic stops for the first 200 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
