🔧 Camry - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, unbolt the brake caliper, replace the pads and rotors, then reassemble everything with correct torque. This restores safe stopping power and fixes pulsation/shaking caused by warped rotors or worn pads.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the Camry with jack stands; never rely on a jack alone.
• 🔥 Brakes get very hot—work only when components are cool.
• 🧤 Wear safety glasses and mechanic gloves; brake dust and cleaner are irritating.
• 🚫 Do not press the brake pedal while the caliper is off the rotor.
• 🪢 Hang the caliper with a strap—don’t let it dangle by the brake hose.
• 🧴 Brake fluid damages paint; wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (20–200 Nm range)
• Flathead screwdriver
• C-clamp (6")
• Wire brush
• Rubber mallet
• Bungee cord
• Drip pan
• Disposable shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad hardware kit (clips/shims) - Qty: 1
• Brake parts cleaner - Qty: 1
• High-temperature brake grease - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 bottle

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear tires.
• Open the hood and locate the brake fluid reservoir; make sure it’s not already full (fluid level will rise when you compress pistons).
• Loosen the front lug nuts about 1/2 turn before lifting the car.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the front and remove the wheels

• Use a 21mm socket and breaker bar to loosen lug nuts (if not already loosened).
• Lift one front corner with the floor jack and set it on a jack stand, then repeat for the other side.
• Remove lug nuts with the 21mm socket and ratchet, then remove both front wheels.

Step 2: Remove the caliper (the part that squeezes the pads)

• Turn the steering wheel to give yourself more room at the side you’re working on.
• Use a 14mm socket and ratchet to remove the two caliper slide pin bolts.
• Carefully lift the caliper off the rotor.
• Hang the caliper from the strut spring using a bungee cord.
• Tip: Never let the caliper hang by the hose.

Step 3: Remove the old pads and hardware

• Pull the brake pads out by hand (use a flathead screwdriver gently if they’re stuck).
• Remove the pad clips/hardware from the bracket.
• Use brake parts cleaner and shop towels to clean dust from the bracket area.

Step 4: Remove the caliper bracket

• Use a 17mm socket and breaker bar to remove the two caliper bracket bolts.
• Set the bracket aside.
• When reinstalling later: Torque to 107 Nm (79 ft-lbs).

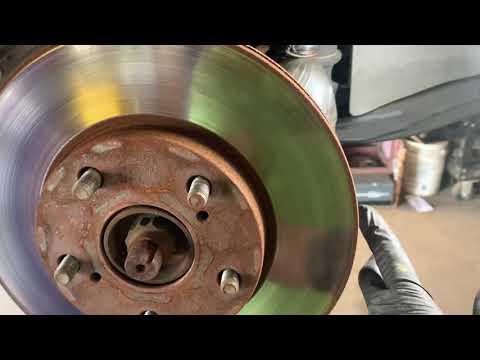

Step 5: Remove the rotor

• Pull the rotor straight off the hub.
• If it’s stuck from rust, tap the rotor hat with a rubber mallet while pulling outward.
• Use a wire brush to clean rust off the hub face (the flat surface the rotor sits on).
• Tip: A clean hub helps prevent brake vibration.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake parts cleaner and wipe with shop towels (removes packing oil).
• Slide the new rotor onto the hub.
• If it wants to wobble while you work, hand-thread two lug nuts backward a few turns using the 21mm socket to hold the rotor flat (remove them before installing the wheel).

Step 7: Reinstall the bracket and new hardware

• Install the new pad clips/hardware onto the bracket by hand.
• Reinstall the caliper bracket using the 17mm socket and ratchet, then tighten with the torque wrench.
• Torque to 107 Nm (79 ft-lbs).

Step 8: Compress the caliper piston

• Place one old brake pad against the piston face (to spread force evenly).
• Use a C-clamp (6") to slowly press the piston back into the caliper.
• Check the brake fluid reservoir as you compress; remove a little fluid with a towel if it looks like it may overflow.
• Tip: Go slow to avoid fluid overflow.

Step 9: Install the new pads and reinstall the caliper

• Apply a very thin layer of high-temperature brake grease to pad “ears” where they slide in the clips (do not get grease on pad friction material).
• Install the new pads into the bracket by hand.
• Lower the caliper over the pads/rotor.
• Install the two slide pin bolts using the 14mm socket and ratchet, then tighten with the torque wrench.
• Torque to 34 Nm (25 ft-lbs).

Step 10: Reinstall wheels and torque lug nuts

• Reinstall the wheels and hand-thread all lug nuts.
• Lower the car off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern with the torque wrench.
• Torque to 103 Nm (76 ft-lbs).

---

✅ After Repair

• With the engine off, press the brake pedal slowly 10–15 times until it feels firm (this seats the pads against the rotors).
• Check the brake fluid reservoir and top off with DOT 3 only if needed.
• Test at low speed first. Make sure the car stops straight and there are no clunks or scraping noises.
• Pad break-in (recommended): do 6–10 moderate stops from ~50 km/h to ~15 km/h, then drive a few minutes to cool. Avoid hard stops for the first 200 km.

---

💰 DIY vs Shop Cost

Shop Cost: ₹6,000-₹12,000 (parts + labor)

DIY Cost: ₹3,500-₹8,000 (parts only)

You Save: ₹2,500-₹4,000 by doing it yourself!

Shop labor rates vary but typically run ₹800-₹1,500/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
