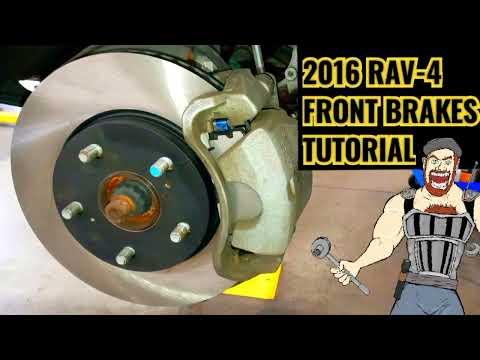

🔧 Front Brake Pads & Rotors - Replacement

Replacing the front pads and rotors on your RAV4 restores stopping power, reduces brake noise, and fixes rotor wear or pulsation. This job is straightforward for a beginner if you take your time and keep everything clean.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Work on level ground and chock the rear wheels before lifting the front.
• Use jack stands. Never rely on the floor jack alone.
• Brake dust can be harmful. Do not blow it off with compressed air.
• Brake cleaner is flammable. Keep it away from heat and sparks.
• Do not press the brake pedal with a caliper removed.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 14mm socket
• 17mm wrench
• Ratchet
• Breaker bar
• Torque wrench
• Bungee cord
• Brake caliper compression tool (specialty)
• Flat-blade screwdriver
• Wire brush
• Brake cleaner
• Shop rags
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1 set
• Front brake rotors - Replace in pairs - Qty: 2
• Brake hardware kit - Qty: 1 set
• Brake pad grease - Qty: 1 tube
• Brake cleaner - Qty: 2 cans

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front wheel lug nuts slightly before lifting.
• Chock the rear wheels.
• If your RAV4 has an electronic parking brake, this front brake job does not use it, but the parking brake must stay set while you work.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Loosen the front wheels

• Use a 21mm socket and breaker bar to crack loose the front lug nuts, but do not remove them yet.
• Break them loose before lifting.

Step 2: Lift and secure the vehicle

• Use the floor jack to lift the front of your RAV4 at the proper front center jack point.
• Set the vehicle onto jack stands placed at the front support points.
• Remove the front wheels with the 21mm socket.

Step 3: Remove the brake caliper

• Use a 14mm socket and ratchet to remove the two caliper slide pin bolts.
• Lift the caliper off the bracket and support it with a bungee cord. Do not let it hang by the hose.
• Never tug on the brake hose.

Step 4: Remove the brake pads and bracket

• Slide the brake pads out of the caliper bracket.
• Use the 14mm socket and breaker bar to remove the two caliper bracket bolts.
• Remove the caliper bracket from the knuckle.

Step 5: Remove the rotor

• Remove the rotor retaining screw if equipped, using a Phillips screwdriver or flat-blade screwdriver.
• Pull the rotor off the hub.
• If it is stuck, tap the rotor hat area lightly from behind with a rubber mallet.

Step 6: Clean the hub and install the new rotor

• Use a wire brush to clean rust from the hub face.
• Spray the hub with brake cleaner and wipe it dry.
• Install the new rotor and secure it with the retaining screw if used.
• Clean hub surfaces help prevent rotor wobble.

Step 7: Reinstall the caliper bracket

• Put the caliper bracket back on the knuckle.
• Use the 14mm socket to install the bracket bolts.
• Torque to 107 Nm (79 ft-lbs).

Step 8: Install the new brake pads

• Apply a thin layer of brake pad grease to the pad ears and contact points only.
• Install the new pads into the bracket.
• If included, install new pad clips and hardware from the kit.

Step 9: Compress the caliper piston

• Use the brake caliper compression tool (specialty) to slowly push the piston fully back into the caliper.
• Watch the brake fluid reservoir while compressing. Stop if it gets too full.
• Compress slowly to avoid damaging seals.

Step 10: Reinstall the caliper

• Slide the caliper back over the new pads.
• Install the slide pin bolts using the 14mm socket.
• Torque to 34 Nm (25 ft-lbs).

Step 11: Reinstall the wheels

• Put the wheels back on and hand-tighten the lug nuts.
• Lower the vehicle with the floor jack.
• Use a torque wrench and 21mm socket to tighten the lug nuts in a star pattern.
• Torque to 103 Nm (76 ft-lbs).

Step 12: Restore pedal feel

• Before driving, pump the brake pedal several times until it feels firm.
• Check the brake fluid level and top off if needed.

---

✅ After Repair

• Test the brakes at low speed first.
• Listen for rubbing or clicking noises.
• Check for brake fluid leaks around both calipers.
• Bed in the new pads and rotors with several gentle stops from moderate speed.
• Do not make hard stops until the brakes feel normal.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$350 (parts only)

You Save: $250-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
