🔧 RAV4 - Front Brake Pads & Rotor Replacement

You’ll remove the front calipers, replace the brake pads, and swap the rotors. This restores safe stopping, reduces vibration/pulsation, and helps prevent uneven pad wear.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Support the RAV4 on jack stands; never rely on a jack.
• 🛑 Brakes create dust—use brake cleaner, avoid breathing dust.
• 🛑 Do not let the caliper hang by the brake hose; support it with a hanger.
• 🛑 Brake fluid can damage paint; wipe spills immediately.
• 🛑 Keep hands clear when compressing the caliper piston.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm lug nut socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 14mm socket
• 17mm socket
• Torque wrench (20-150 ft-lb range)
• C-clamp (6" minimum)
• Large flathead screwdriver
• Bungee cord
• Wire brush
• Rubber mallet
• M8 x 1.25 bolts (2 pieces, 25-35mm long)
• Brake parts cleaner
• Shop towels
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Silicone brake lubricant - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• 🧰 Park on level ground, put the shifter in Park, and chock the rear wheels.
• 🧰 Loosen the front lug nuts 1/2 turn before lifting the RAV4 (use 21mm lug socket).
• 🧰 Open the hood and check the brake fluid level; it may rise when you compress the pistons.
• 🧰 If the reservoir is very full, remove a little fluid with a clean suction tool (don’t spill).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the proper jacking point.
• Place jack stands (rated 3-ton minimum) under the front support points and lower the RAV4 onto them.
• Shake the vehicle lightly to confirm it’s stable.

Step 2: Remove the front wheels

• Remove the lug nuts using a 21mm lug nut socket and breaker bar.
• Remove both front wheels and set them aside.

Step 3: Remove the caliper (the clamp that squeezes the pads)

• Turn the steering knuckle for access (hand-push the rotor/hub as needed).
• Remove the two caliper slide pin bolts using a 14mm socket and ratchet.
• Lift the caliper off the bracket, then hang it from the strut spring using a bungee cord.
• Never let the caliper dangle by the hose.

Step 4: Remove the old pads and hardware

• Pull the brake pads out of the caliper bracket by hand or with a large flathead screwdriver.
• Remove the pad clips (hardware) from the bracket.
• Clean the bracket pad “shelves” using brake parts cleaner and a wire brush.

Step 5: Remove the caliper bracket (the pad holder)

• The caliper bracket is the larger metal piece the pads slide in.
• Remove the two bracket bolts using a 17mm socket and breaker bar.
• Set the bracket aside.
• When reinstalling: Torque to 107 Nm (79 ft-lbs) using a torque wrench.

Step 6: Remove the rotor

• If the rotor is stuck, spray the hub area with brake parts cleaner and tap the rotor hat with a rubber mallet.
• If it still won’t come off, thread two M8 x 1.25 bolts into the rotor’s jacking holes evenly and tighten with a ratchet until the rotor pops loose.
• Remove the rotor.

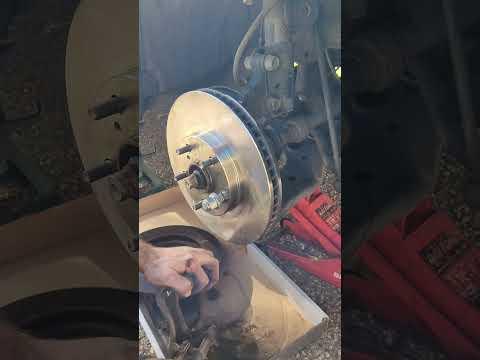

Step 7: Clean the hub and install the new rotor

• Clean rust from the hub face using a wire brush, then wipe with shop towels.
• Spray both sides of the new rotor with brake parts cleaner and wipe clean (removes shipping oil).
• Install the new rotor onto the hub.
• To hold it square while you work, hand-thread one lug nut on backward (use the 21mm lug nut socket).

Step 8: Reinstall the caliper bracket and prep the slide pins

• Reinstall the bracket and start both bolts by hand.
• Tighten using a 17mm socket and ratchet, then Torque to 107 Nm (79 ft-lbs) with a torque wrench.
• Pull the slide pins out one at a time, wipe them with shop towels, and apply a thin coat of silicone brake lubricant.
• Reinsert the slide pins fully (they should move smoothly by hand).

Step 9: Install new pad hardware and pads

• Install the new pad clips into the bracket by hand.
• Apply a very thin film of silicone brake lubricant where the pad ears touch the clips (don’t get lube on the pad friction material).
• Install the new pads into the bracket.

Step 10: Compress the caliper piston

• The piston is the round part that pushes the inner pad.
• Place one old pad against the piston, then use a C-clamp (6" minimum) to slowly press the piston fully back into the caliper.
• Check the brake fluid reservoir while compressing; don’t let it overflow.

Step 11: Reinstall the caliper

• Set the caliper over the new pads and bracket.
• Install the slide pin bolts using a 14mm socket and ratchet.
• Torque to 34 Nm (25 ft-lbs) using a torque wrench.

Step 12: Repeat on the other side

• Repeat Steps 3 through 11 on the other front wheel.
• Do one side at a time to stay organized.

Step 13: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-thread all lug nuts.
• Lower the RAV4 until the tires just touch the ground.
• Tighten lug nuts in a star pattern using a 21mm lug nut socket.
• Torque to 103 Nm (76 ft-lbs) using a torque wrench.

---

✅ After Repair

• ✅ Pump the brake pedal 10-15 times before driving until it feels firm (this seats the pads).
• ✅ Check brake fluid level and top off with DOT 3 if needed.
• ✅ Test at low speed first; confirm normal braking and no pulling/noise.
• ✅ Pad bedding (recommended): do 6-8 moderate stops from ~40 to ~10 mph, with cooling time between stops.
• ✅ Recheck lug nut torque after 25-50 miles using a torque wrench.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $140-$320 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
