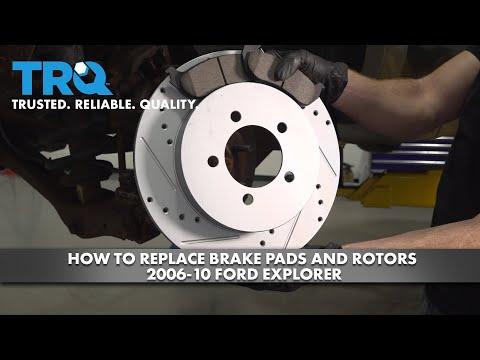

🔧 Explorer - Front Brake Pads & Rotor Replacement

You’ll remove the front calipers, swap the brake pads, and replace the front rotors. Worn pads/rotors can cause squealing, vibration, pulling, or longer stopping distances, so replacing them together restores smooth, safe braking.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work on level ground and support the Explorer with jack stands (never rely on a jack).
• 🧤 Wear safety glasses and gloves; brake dust and cleaner are harsh.
• 🔥 Brakes can be hot—let the front brakes cool before touching parts.
• 🛑 Do not press the brake pedal with a caliper removed (the piston can pop out).
• 🧵 Never let the caliper hang by the brake hose—support it with a hanger.
• 🧪 Brake fluid can damage paint; wipe spills immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Lug nut socket (19mm)
• Breaker bar (1/2" drive)
• Ratchet (3/8" drive)
• Ratchet (1/2" drive)
• Socket set (8mm-21mm)
• Wrench set (13mm-21mm)
• Torque wrench (10-250 ft-lbs range)
• C-clamp (6" minimum)
• Brake caliper hanger hook
• Flathead screwdriver
• Wire brush
• Rubber mallet
• Bungee cord
• Drain pan
• Shop towels
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Brake cleaner - Qty: 2 cans
• High-temp brake caliper grease - Qty: 1
• Anti-seize compound - Qty: 1
• Brake fluid (DOT 3) - Qty: 1 quart

---

📋 Before You Begin

• 🧭 Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• 🔩 Use a 19mm lug nut socket and breaker bar to loosen front lug nuts 1/2 turn (do not remove yet).
• 🧪 Open the hood and check the brake fluid level. If it’s near “MAX,” remove a little with a clean towel in the reservoir neck (compressing pistons can raise the level).
• 🧰 Set your drain pan and shop towels nearby to catch cleaner drips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front of the Explorer at the front jacking point/crossmember.
• Set the frame securely onto jack stands (rated 3-ton minimum).
• Remove the front wheels using a 19mm lug nut socket and breaker bar.

Step 2: Remove the caliper (and support it)

• Turn the steering wheel to give yourself more working room at the side you’re working on.
• Use a ratchet (3/8" drive) with the correct socket/wrench to remove the two caliper slide bolts.
• Lift the caliper off the bracket. If it’s tight, gently pry with a flathead screwdriver.
• Hang the caliper using a brake caliper hanger hook (this tool holds the caliper so the hose isn’t strained).

Step 3: Remove the old brake pads

• Slide the pads out of the bracket by hand. If stuck, use a flathead screwdriver carefully.
• Note the pad positions and any wear indicators so the new pads go in the same orientation.

Step 4: Remove the caliper bracket

• Use a breaker bar (1/2" drive) and the correct socket to remove the two caliper bracket bolts on the back side of the steering knuckle.
• Set the bracket aside.

Step 5: Remove the old rotor

• Pull the rotor straight off the wheel hub.
• If it’s stuck from rust, tap around the rotor “hat” with a rubber mallet until it breaks free.
• Clean the hub face with a wire brush so the new rotor sits perfectly flat. Flat hub = no brake vibration.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner and wipe with shop towels (removes protective shipping oil).
• Slide the new rotor onto the hub.
• Optional but helpful: install one lug nut backwards by hand to hold the rotor in place while you work.

Step 7: Service the bracket hardware (clips) and slide areas

• Remove the pad abutment clips (hardware) from the bracket (if your pad set includes new ones, replace them).
• Clean the bracket pad-contact areas with a wire brush.
• Apply a thin film of high-temp brake caliper grease where the pad ears touch the clips (do not get grease on pad friction material).

Step 8: Reinstall the caliper bracket

• Position the bracket over the new rotor.
• Install the bracket bolts by hand first, then tighten with a ratchet (1/2" drive).
• Final-tighten with a torque wrench: Torque to 184 Nm (136 ft-lbs).

Step 9: Compress the caliper piston

• Place an old brake pad against the caliper piston face.
• Use a C-clamp (6" minimum) to slowly compress the piston until it’s fully seated.
• Check the brake fluid reservoir as you compress; don’t let it overflow.

Step 10: Install the new pads

• Install the new inner and outer pads into the bracket by hand.
• If your pad set includes a wear indicator, it typically goes on the same side/position as the old one came off.

Step 11: Reinstall the caliper

• Lower the caliper over the new pads and into place.
• Install the caliper slide bolts by hand first (to avoid cross-threading), then tighten with a ratchet (3/8" drive).
• Final-tighten with a torque wrench: Torque to 27 Nm (20 ft-lbs).

Step 12: Repeat on the other front wheel

• Repeat Steps 2 through 11 on the other side.
• Keep left and right parts separate only if your pads are side-specific (most sets are not).

Step 13: Reinstall wheels and lower the Explorer

• Reinstall wheels using a 19mm lug nut socket.
• Lower the Explorer off the jack stands using the floor jack.
• Torque lug nuts in a star pattern with a torque wrench: Torque to 135 Nm (100 ft-lbs).

---

✅ After Repair

• 🦶 With the engine OFF, pump the brake pedal slowly 10-15 times until it feels firm (this seats the pads against the rotors).
• 🧪 Check brake fluid level and top off with DOT 3 if needed.
• 🔍 Look around both front calipers for leaks, twisted hoses, or anything left loose.
• 🛣️ Bed-in (break-in) the pads: make 6-10 moderate stops from ~35 mph down to ~5 mph, letting brakes cool 30-60 seconds between stops. Avoid hard panic stops for the first 200 miles if possible.
• 🎧 If you hear grinding or the pedal is soft after pumping, stop and recheck your work.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$350 (parts only)

You Save: $290-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
