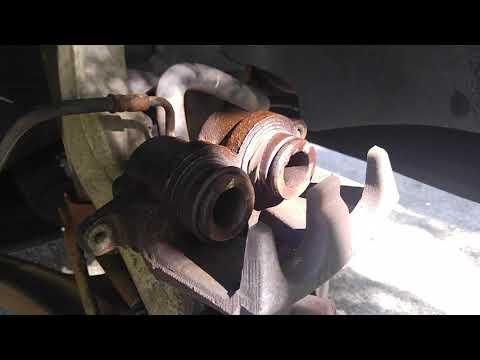

🔧 Grand Cherokee - Front Brake Pads & Rotor Replacement

You’ll remove the front calipers, replace the pads, and swap the rotors on both front wheels. New rotors help prevent pulsation/shake and give the new pads a clean, flat surface to bite into.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🧯 Work on level ground and support the SUV with jack stands—never rely on a jack alone.
• ⚠️ Brake dust is harmful—avoid blowing it with compressed air; use brake cleaner.
• 🔥 Brakes get hot—let everything cool before starting.
• 🧪 Do not let brake fluid overflow when compressing pistons; it can damage paint.
• 🪝 Never let the caliper hang by the brake hose; support it with a hook.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Breaker bar (1/2")
• Torque wrench (20-200 ft-lbs range)
• Socket set (8mm-21mm, 1/2")
• Wrench set (13mm-21mm)
• 7mm hex bit socket
• C-clamp (6" minimum)
• Brake caliper hanger hook
• Wire brush
• Rubber mallet
• Flathead screwdriver
• Turkey baster
• Micrometer or vernier caliper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front brake pad hardware kit - Qty: 1
• Brake cleaner - Qty: 2 cans
• High-temperature brake grease - Qty: 1
• Medium-strength threadlocker - Qty: 1
• DOT 3 brake fluid - Qty: 1 quart

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels with wheel chocks.
• 🛞 Break the front lug nuts loose 1/2 turn using a breaker bar and correct-size socket before lifting.
• 🧴 Open the hood and locate the brake fluid reservoir; if it’s near the MAX line, remove a little with a turkey baster.
• 🧠 “Compressing the piston” means pushing it back in. This makes room for thicker new pads.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and secure the front end

• Use a floor jack (rated 3-ton minimum) to lift the front at the approved front jacking point.
• Place jack stands (rated 3-ton minimum) under the frame points and lower onto them.
• Remove both front wheels using a socket set (8mm-21mm, 1/2").

Step 2: Remove the caliper (leave the hose connected)

• Turn the steering wheel for better access (left for right side, right for left side).
• Use a 7mm hex bit socket and breaker bar (1/2") to remove the two caliper guide pin bolts.
• Carefully lift the caliper off the bracket. Use a brake caliper hanger hook to support it.
• Do not twist or stretch the brake hose.

Step 3: Remove old pads and hardware

• Remove the pads from the bracket by hand. Use a flathead screwdriver if they’re stuck.
• Remove the pad clips/hardware from the bracket using a flathead screwdriver.

Step 4: Remove the caliper bracket

• Use a socket set (8mm-21mm, 1/2") and breaker bar (1/2") to remove the two caliper bracket-to-knuckle bolts.
• Set the bracket on a stable surface.
• When reinstalling later: apply a small amount of medium-strength threadlocker to the bracket bolts and Torque to 169 Nm (125 ft-lbs).

Step 5: Remove the rotor

• Slide the rotor off the hub. If it’s stuck from rust, tap the rotor hat with a rubber mallet to free it.
• Clean the hub face with a wire brush until it’s smooth and flat. This helps prevent rotor wobble/pulsation.

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner and wipe clean (removes shipping oil).
• Install the rotor onto the hub. Hold it in place with 1-2 lug nuts hand-threaded (use your socket set (8mm-21mm, 1/2")).

Step 7: Service the caliper bracket and slide pins

• Remove the slide pins from the bracket by hand. If needed, use a wrench set (13mm-21mm) gently for leverage.
• Wipe old grease off, then apply a thin coat of high-temperature brake grease to the smooth pin surface.
• Keep grease off pad/rotor friction surfaces.
• Install new pad hardware clips into the bracket (from your front brake pad hardware kit).

Step 8: Reinstall the caliper bracket

• Reinstall the bracket over the rotor using a socket set (8mm-21mm, 1/2").
• Torque to 169 Nm (125 ft-lbs).

Step 9: Compress the caliper piston

• Place one old brake pad against the piston face.
• Use a C-clamp (6" minimum) to slowly push the piston back into the caliper.
• Check the reservoir level while compressing; remove extra with the turkey baster if needed.

Step 10: Install new pads and reinstall the caliper

• Apply a light coat of high-temperature brake grease to pad backing/contact points where they touch the hardware (not the pad friction material).
• Install the new pads into the bracket.
• Set the caliper over the pads and align the slide pin holes.
• Install the two guide pin bolts using the 7mm hex bit socket.
• Torque to 38 Nm (28 ft-lbs).

Step 11: Reinstall wheels

• Reinstall the wheels and hand-thread lug nuts.
• Lower the SUV off the stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern with a torque wrench (20-200 ft-lbs range): Torque to 135 Nm (100 ft-lbs).

Step 12: Repeat on the other side

• Do the same procedure for the other front wheel.
• Always replace pads and rotors in pairs.

---

✅ After Repair

• 🦶 With the engine OFF, pump the brake pedal slowly 10-15 times until it feels firm (this seats the pistons).
• 🧴 Check brake fluid level and top off with DOT 3 brake fluid if needed.
• 🔍 Check for leaks and make sure the brake hose is not twisted.
• 🧪 Test at low speed first. Confirm normal stopping and no pulling/noise.
• 🛑 Pad bedding (recommended): make 6-8 medium stops from ~40 mph to 10 mph, then drive 5-10 minutes to cool without hard braking.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$420 (parts only)

You Save: $290-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
