🔧 Tacoma - Front Brake Pads & Rotor Replacement

You’ll remove the front wheels, take off the brake calipers, replace the pads and rotors, then reassemble everything with the correct torque. New rotors fix pulsing/shaking and give new pads a fresh, flat surface to bed-in properly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Support the truck on jack stands—never rely on a floor jack.
• ⚠️ Brakes may be hot; let them cool before starting.
• ⚠️ Don’t inhale brake dust—use brake cleaner, not compressed air.
• ⚠️ Do not let the caliper hang by the hose—support it with a hook or bungee.
• ⚠️ Keep grease/oil off pad friction material and rotor faces.
• ⚠️ If brake fluid rises near “MAX,” remove a little with a syringe (don’t spill on paint).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 21mm socket
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20-200 ft-lbs range)
• Ratchet
• 14mm socket
• 17mm socket
• C-clamp brake piston compressor
• Flathead screwdriver
• Needle-nose pliers
• Bungee cord
• Wire brush
• Rubber mallet
• Micrometer or vernier caliper
• Brake cleaner
• Shop rags
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front brake pad set - Qty: 1
• Front brake rotors - Replace in pairs - Qty: 2
• Front pad hardware/clip kit - Qty: 1
• Brake caliper grease (silicone) - Qty: 1
• Blue threadlocker (medium strength) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Crack the front lug nuts loose 1/2 turn using a 21mm socket and breaker bar.
• Open the hood and check brake fluid level. If it’s already near “MAX,” plan to remove a little fluid later.
• Take a photo of the pad/clip layout first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift and remove the front wheels

• Lift the front with a floor jack (rated 3-ton minimum) at the front jacking point.
• Set the frame securely onto jack stands (rated 3-ton minimum).
• Remove lug nuts with a 21mm socket and remove both front wheels.

Step 2: Inspect and identify your caliper style (important)

• Look at the caliper and hardware before unbolting.
• If you see two “slider pin” bolts (usually one upper and one lower), you have a floating caliper.
• If you do not see slider pins and the caliper is a larger fixed design, you have a multi-piston fixed caliper.
• If you tell me which style you have, I’ll tailor the bolt locations exactly.

Step 3: Remove the caliper (and support it)

• Turn the steering slightly if needed for access (key on not required).
• Remove caliper bolts using a 14mm socket (common for slider bolts) or a 17mm socket (common for mounting bolts), depending on your caliper style.
• Lift the caliper off the rotor and hang it using a bungee cord so the hose is not stretched.

Step 4: Remove the brake pads and hardware clips

• Slide the pads out by hand; use a flathead screwdriver gently if they’re stuck.
• Remove the pad clips/hardware using needle-nose pliers.
• Clean the caliper bracket pad “lands” (where clips sit) using a wire brush and brake cleaner.

Step 5: Remove the caliper bracket (if equipped) and remove the rotor

• If your setup uses a separate bracket, remove the bracket bolts with a 17mm socket and breaker bar.
• Remove the rotor. If it’s stuck from rust, tap the rotor hat with a rubber mallet to break it loose.
• Clean the hub face with a wire brush and brake cleaner so the new rotor sits flat.

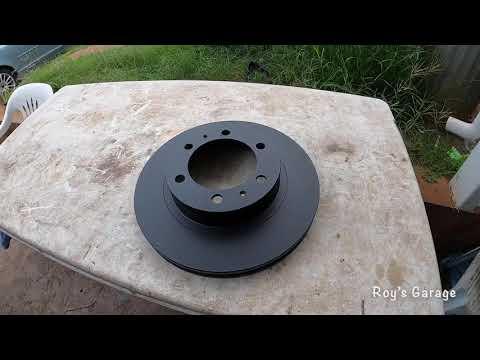

Step 6: Install the new rotor

• Spray both sides of the new rotor with brake cleaner and wipe with shop rags (removes shipping oil).
• Install the rotor onto the hub.
• Thread on one lug nut by hand to “hold” the rotor in place while you work (use the 21mm socket lightly—do not torque yet).

Step 7: Reinstall the bracket and torque the bolts

• Apply a small amount of blue threadlocker (medium strength) to clean bracket bolt threads.
• Install bracket bolts using a 17mm socket.
• Torque to 123 Nm (91 ft-lbs).

Step 8: Install new pad hardware and pads

• Install new clips from the hardware kit by hand (use needle-nose pliers if needed).
• Apply a thin film of brake caliper grease (silicone) to the pad “ears” where they slide in the clips (not on the pad friction surface).
• Slide the new pads into place.

Step 9: Compress the caliper pistons

• Remove the master cylinder cap under the hood (set it on clean rags).
• For floating calipers: place the old pad against the piston and compress with a C-clamp brake piston compressor slowly.
• For multi-piston fixed calipers: compress the pistons evenly—work slowly and keep the pad/press tool flat. Use a C-clamp brake piston compressor and move side-to-side so pistons go in evenly.
• Watch the brake fluid level as you compress; remove excess with shop rags if it nears the top.
• Slow compression helps prevent ABS issues.

Step 10: Reinstall the caliper and torque the bolts

• Position the caliper over the new pads/rotor.
• Install caliper bolts using a 14mm socket or 17mm socket (whichever fits your caliper bolts).
• Floating caliper slider bolts: Torque to 34 Nm (25 ft-lbs).
• If your caliper uses larger mounting bolts instead of slider bolts: Torque to 123 Nm (91 ft-lbs).

Step 11: Reinstall wheels and torque lug nuts

• Reinstall both wheels and hand-thread all lug nuts.
• Lower the truck off the jack stands using the floor jack.
• Tighten lug nuts in a star pattern using a 1/2" drive torque wrench.
• Torque to 113 Nm (83 ft-lbs).

---

✅ After Repair

• Pump the brake pedal 10-15 times until it feels firm (this seats the pistons against the new pads).
• Check brake fluid level and reinstall the cap.
• Test at low speed first. Confirm no pulling, grinding, or warning lights.
• Bed-in (break-in) the pads: make 8-10 moderate stops from ~40 mph down to ~10 mph, with 30-60 seconds between stops. Avoid sitting stopped with hot brakes.
• Recheck lug nut torque with a torque wrench after 50-100 miles.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
