Assumption: Front ball joints on your F-150 are being replaced one side at a time, and a wheel alignment will be needed afterward.

🔧 Front Ball Joints - Replacement

Ball joints let the front suspension move while keeping the wheel pointed correctly. When they get loose or noisy, you can feel clunks, wander, or uneven tire wear. This repair usually involves removing the steering knuckle and pressing the joint out and in, then having the front end aligned.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Support the truck with jack stands; never work under a vehicle supported only by a jack.
• The front suspension is heavy. Keep hands clear when separating the knuckle.
• Use a ball joint separator carefully. The tapered joint can release suddenly.
• If equipped with electronic steering or ABS sensors, do not pull on wiring.
• Battery disconnect is not required for this repair.
• Wheel alignment is required after the repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar
• Torque wrench
• Socket set metric
• Wrench set metric
• 10mm socket
• 13mm socket
• 15mm socket
• 18mm socket
• 21mm socket
• 24mm socket
• Ball joint separator (specialty)
• Ball joint press kit (specialty)
• Hammer
• Punch set
• Needle-nose pliers
• Trim tool
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Front upper ball joint - Qty: 2
• Front ball joint snap rings - Qty: 2
• Front cotter pins - Qty: 4
• Front stabilizer link nuts - Qty: 2
• Front alignment hardware - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Loosen the front wheel lug nuts before lifting the truck.
• Raise the front end and support it securely with jack stands.
• If the truck has aftermarket suspension parts, note their position before removal.
• Have a wheel alignment appointment ready for after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the wheel

• Use a 21mm socket and breaker bar to loosen the lug nuts before lifting.
• Raise the front of the truck with a floor jack and support it with jack stands.
• Remove the wheel and set it aside.

Step 2: Remove the brake components

• Use a 15mm socket to remove the brake caliper bolts.
• Lift the caliper off carefully and hang it with wire or a hook. Do not let it hang by the hose.
• Use a 13mm socket to remove the caliper bracket if needed.
• Remove the rotor by hand. If stuck, tap it lightly with a hammer.

Step 3: Disconnect the steering and suspension links

• Use a 21mm socket to remove the tie rod end nut.
• Use a ball joint separator to release the tie rod end from the knuckle.
• Use a 15mm or 18mm socket to disconnect the sway bar link if it blocks knuckle removal.
• Mark part positions before removal.

Step 4: Separate the upper and lower joints

• Use a 21mm or 24mm socket to remove the upper and lower ball joint nuts.
• Use a ball joint separator to pop the tapers loose from the knuckle.
• Support the knuckle so it does not drop and damage the axle or ABS wiring.

Step 5: Remove the steering knuckle

• Slide the knuckle off the ball joints and set it aside.
• Inspect the wheel bearing and axle seal while the knuckle is out.

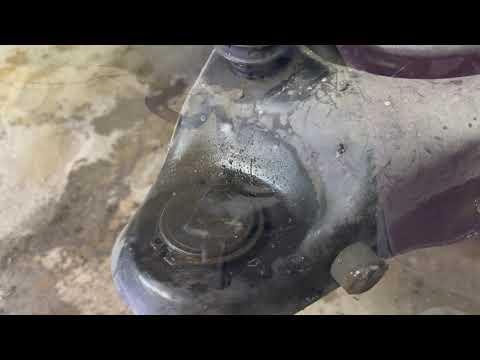

Step 6: Press out the old ball joints

• Use a ball joint press kit to press the old ball joint out of the control arm or knuckle, depending on the joint design.
• Use a punch set and hammer to remove any snap ring or retaining hardware.
• Clean the bore before installing the new joint.

Step 7: Install the new ball joints

• Use the ball joint press kit to press the new joint in straight.
• Install the snap ring if equipped.
• Make sure the joint seats fully and sits square in the bore.

Step 8: Reassemble the front end

• Reinstall the steering knuckle onto the ball joints.
• Use a 21mm or 24mm socket to install the ball joint nuts.
• Torque to factory specification for the ball joint nuts and tie rod end nut.
• Reinstall the sway bar link, rotor, caliper bracket, and caliper.

Step 9: Reinstall the wheel and lower the truck

• Install the wheel and hand-tighten the lug nuts.
• Lower the truck and use a torque wrench to tighten the lug nuts in a star pattern.
• Torque to 150 Nm (111 ft-lbs) for the lug nuts.

---

✅ After Repair

• Start the truck and turn the steering wheel lock-to-lock to check for binding.
• Test drive slowly and listen for clunks or popping noises.
• Check that the brake pedal feels normal before driving at speed.
• Schedule a front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,400 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $400-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
