🔧 Ball Joints - Front Suspension Replacement

Assumption: Front ball joints on your Sierra. On this truck, the front lower ball joints are typically pressed in, and the upper ball joint is often serviced through the upper control arm assembly depending on wear and hardware condition.

Worn ball joints can cause clunks, steering wander, uneven tire wear, and a loose front-end feel. This job requires safe lifting, suspension disassembly, and a ball joint press for the pressed-in joint.

Difficulty Level: Advanced | Estimated Time: 4-8 hours

---

⚠️ Safety & Precautions

• Support the truck on jack stands before removing suspension parts. Never work under a vehicle supported only by a jack.
• Use wheel chocks on the rear wheels and set the parking brake.
• The front suspension spring load can shift when the control arm is disconnected. Keep hands clear while separating joints.
• Use eye protection when striking or pressing suspension parts. Rust and debris can fall.
• If equipped with ABS sensor wiring near the knuckle, do not pull on the harness.
• No battery disconnect is normally required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Breaker bar
• Metric socket set
• Metric wrench set
• Torque wrench
• Ball joint press kit (specialty)
• Pickle fork / ball joint separator (specialty)
• Hammer
• Pry bar
• Needle-nose pliers
• Penetrating oil
• Wire brush
• Paint marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front lower ball joint - Qty: 2
• Front upper ball joint or upper control arm assembly - Qty: 2
• Ball joint cotter pins - Qty: 2
• New control arm hardware - Qty: 1 set
• Alignment shims or cam bolts, if equipped - Qty: As needed

---

📋 Before You Begin

• Park on level ground and chock the rear wheels.
• Loosen the front wheel lug nuts before lifting the truck.
• Raise the front end and support it securely on jack stands.
• Mark any alignment cam positions before loosening control arm bolts. Helps preserve alignment settings.
• Plan on getting a wheel alignment after the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the front wheel

• Use a lug wrench or socket to remove the front wheel lug nuts.
• Set the wheel aside safely.

Step 2: Access the ball joint area

• Use a wire brush and penetrating oil on the ball joint nut, cotter pin, and nearby fasteners.
• If needed, remove the brake caliper bracket and rotor for better access. Use the correct metric socket and hang the caliper with a safe support point.

Step 3: Separate the steering knuckle from the ball joint

• Remove the cotter pin with needle-nose pliers.
• Use the correct metric socket and wrench to remove the ball joint nut.
• Use a pickle fork / ball joint separator to break the taper loose from the knuckle.
• Support the knuckle so the axle and brake hose are not strained.

Step 4: Remove the control arm or ball joint

• For a press-in lower ball joint, remove the control arm if needed for bench work.
• Use a ball joint press kit to press the old lower ball joint out of the control arm.
• For the upper joint, if the factory design on your Sierra uses a replaceable joint, press or unbolt it as required. If the upper joint is serviced only with the upper control arm, replace the complete arm assembly.
• Use a hammer only to help align parts. Do not strike the new joint directly.

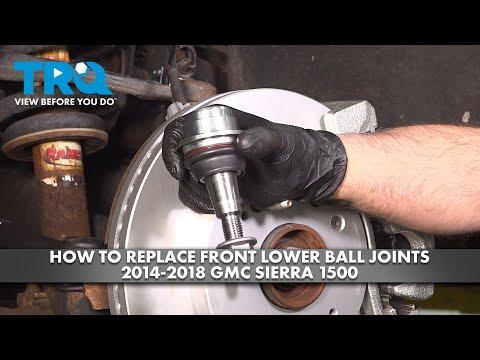

Step 5: Install the new ball joint

• Clean the bore with a wire brush before installation.
• Use the ball joint press kit to install the new lower ball joint squarely into the control arm.
• If replacing the upper control arm assembly, install the new arm with the ball joint already attached.
• Install the ball joint stud into the knuckle and start the new nut by hand.
• Torque to factory specification.

Step 6: Reassemble the suspension

• Reconnect any components removed for access, including the rotor and brake caliper bracket if removed.
• Install new cotter pins where required.
• Reinstall the wheel and hand-tighten the lug nuts.
• Torque wheel lug nuts to factory specification in a star pattern.

Step 7: Final tightening at ride height

• Lower the truck so the suspension is at normal ride height before final tightening of any control arm pivot bolts.
• Use a torque wrench to tighten all control arm bolts to factory specification at ride height.
• Final-tighten suspension bushings at ride height.

---

✅ After Repair

• Check for any loose hardware and verify the steering turns lock-to-lock without binding.
• Test drive slowly at first and listen for clunks or pops.
• Get a professional front-end alignment as soon as possible.
• Recheck lug nut torque after the first short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,200 (parts + labor)

DIY Cost: $120-$350 (parts only)

You Save: $380-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-8 hours.

---
