🔧 Ball Joints - Replacement

On your Ram, the front ball joints are pressed into the steering knuckle/control arm assembly and are not a quick bolt-on part. This job usually requires removing the knuckle and using a ball joint press, then getting a wheel alignment afterward.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Support the truck with jack stands; never work under a vehicle held only by a jack.
• Front suspension parts are heavy and can shift suddenly when separated.
• Use eye protection when pressing ball joints in or out; metal can snap under load.
• Do not reuse a damaged cotter pin or castle nut.
• An alignment is required after this repair.
• No battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands
• Wheel chocks
• Breaker bar
• 21mm socket
• 24mm socket
• 15mm socket
• 18mm socket
• 18mm wrench
• Large torque wrench
• Ball joint press kit (specialty)
• Hammer
• Ball joint separator
• Cotter pin puller
• Needle-nose pliers
• Penetrating oil
• Brake cleaner
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front upper ball joint - Qty: 2
• Front lower ball joint - Qty: 2
• Front ball joint boot and hardware kit - Qty: 1
• New cotter pins - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Chock the rear wheels.
• Break the lug nuts loose before lifting the truck.
• Replace ball joints in pairs on the same axle.
• Plan on a front-end alignment after repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the truck

• Use a floor jack to lift the front of the truck by the frame.
• Support it with jack stands under the frame rails.
• Remove the front wheel with a 21mm socket.

Step 2: Remove the brake and hub components

• Use a 15mm socket to remove the brake caliper bolts.
• Hang the caliper with wire or a hanger so the hose is not stretched.
• Remove the rotor by hand.
• If needed for knuckle removal, use a 21mm socket and breaker bar to remove the axle nut.
• Disconnect the ABS wire clips from the knuckle.

Step 3: Separate the steering linkage

• Use a cotter pin puller and needle-nose pliers to remove the cotter pin from the tie-rod end.
• Remove the tie-rod nut with an 18mm socket.
• Use a ball joint separator to free the tie-rod end from the knuckle.
• Don’t hammer on the stud threads.

Step 4: Remove the knuckle

• Remove the upper and lower ball joint nuts with an 18mm socket and 18mm wrench.
• Use a ball joint separator if the knuckle is stuck to the studs.
• Lift the knuckle off the ball joint studs and remove it from the vehicle.

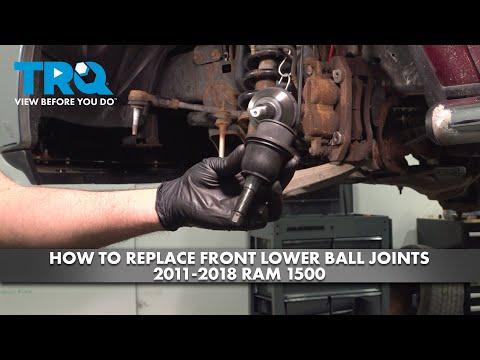

Step 5: Press out the old ball joints

• Take the knuckle to a workbench.
• Use the ball joint press kit to press out the upper ball joint first.
• Use the ball joint press kit again to press out the lower ball joint.
• Clean the bores with brake cleaner and inspect for damage.

Step 6: Press in the new ball joints

• Use the ball joint press kit to install the new lower ball joint squarely into the knuckle.
• Install the new upper ball joint the same way.
• Make sure each joint seats fully and sits flush.
• Keep the press straight to avoid damage.

Step 7: Reinstall the knuckle

• Set the knuckle back onto the lower and upper ball joint studs.
• Install the nuts by hand first.
• Tighten the upper and lower ball joint nuts with an 18mm socket.
• Torque to factory specification and install new cotter pins if the hardware uses them.
• Reconnect the tie-rod end and tighten the nut with an 18mm socket; torque to factory specification.

Step 8: Reassemble the brake and wheel

• Reinstall the rotor and brake caliper with a 15mm socket.
• Reinstall the axle nut if removed and torque to factory specification.
• Reinstall the wheel with a 21mm socket.
• Lower the truck and final-torque the lug nuts with a torque wrench.

---

✅ After Repair

• Pump the brake pedal before moving the truck.
• Check for loose steering or clunks at low speed.
• Inspect all nuts and cotter pins after the first test drive.
• Get a professional front-end alignment as soon as possible.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $120-$300 (parts only)

You Save: $380-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
