🔧 Tahoe - Engine Mount Replacement

Worn engine mounts can cause clunks on acceleration/braking, vibration at idle, and excessive engine movement. On your Tahoe, the job is mostly about safe support of the engine, creating access, and swapping the left/right mounts one side at a time.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

Assumption: stock 5.3L K2XX mount layout; verify torque specs with OEM service info.

---

⚠️ Safety & Precautions

• ⚠️ Support the engine before loosening mounts; the engine can drop and pinch/crush.
• ⚠️ Use jack stands on the frame; never rely on a floor jack alone.
• ⚠️ Don’t jack directly on the oil pan without a wood block to spread the load.
• ⚠️ Keep hands clear of the mount “pinch zone” while raising/lowering the engine.
• ⚠️ Let exhaust components cool fully; the mount area can be near hot pipes/shields.
• ⚠️ Battery disconnect is recommended if you’ll be near the starter/positive cable: remove the 10mm negative terminal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wood block 2x6 in
• Socket set 10mm-21mm
• Deep socket set 10mm-21mm
• Ratchet 3/8 in drive
• Ratchet 1/2 in drive
• Breaker bar 1/2 in drive
• Torque wrench 1/2 in drive (20-200 ft-lbs) (specialty)
• Extensions set 3 in-12 in
• Wobble extension 3/8 in drive
• Universal joint 3/8 in drive
• Pry bar 18 in
• Trim clip remover
• Flathead screwdriver
• Penetrating oil
• Paint marker
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Left engine mount - Qty: 1
• Right engine mount - Qty: 1
• Engine mount hardware kit - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Use a floor jack and jack stands to support the frame securely.
• Spray mount fasteners with penetrating oil and let it soak 10-15 minutes.
• If disconnecting the battery, use a 10mm socket to remove the negative terminal and isolate it.
• Plan to replace mounts one side at a time to keep alignment manageable.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the Tahoe

• Use a floor jack (rated 3-ton minimum) to lift the front of the vehicle at the approved front jacking point.
• Place jack stands (rated 3-ton minimum) under the frame rails and lower the vehicle onto the stands.
• Give the vehicle a firm shake to confirm it’s stable before going underneath.

Step 2: Create working access

• Use a trim clip remover and flathead screwdriver to remove any lower air deflectors/splash shields blocking access.
• Use a work light to locate the left and right engine mounts and their fasteners (mount-to-frame, mount-to-engine bracket, and the through-bolt).

Step 3: Support the engine safely

• Place a wood block 2x6 in on the floor jack pad.
• Position the jack/wood under the engine’s lower area so the wood spreads the load (do not point-load a thin edge).
• Jack up just until you see the engine weight slightly taken up.
• Tip: Watch the fan shroud while lifting.

Step 4: Replace the right engine mount (passenger side)

• Use a paint marker to mark the mount position relative to the bracket/frame to help alignment.
• Use a socket set 10mm-21mm, extensions set 3 in-12 in, and wobble extension 3/8 in drive to loosen (do not fully remove yet) the right mount fasteners.
• Use a breaker bar 1/2 in drive if bolts are tight.
• Use the floor jack to raise the engine slightly until the mount through-bolt is free of bind.
• Remove the mount through-bolt using a ratchet 1/2 in drive and appropriate deep socket 10mm-21mm.
• Remove the mount-to-frame fasteners and mount-to-engine bracket fasteners using a ratchet, universal joint 3/8 in drive, and extensions as needed.
• Work the mount out; use an 18 in pry bar gently if needed (a pry bar is a long lever used to shift parts slightly).
• Install the new right mount in the same orientation and start all fasteners by hand.
• Lower/raise the engine with the floor jack until the through-bolt slides in without forcing it.
• Tighten fasteners snug with a ratchet, then final-tighten with a torque wrench 1/2 in drive (a torque wrench tightens bolts to a set force).
• Torque to 50 Nm (37 ft-lbs) for mount-to-engine bracket bolts (common spec).
• Torque to 75 Nm (55 ft-lbs) for the mount through-bolt/nut (common spec).
• Torque to 85 Nm (63 ft-lbs) for mount-to-frame fasteners (common spec).

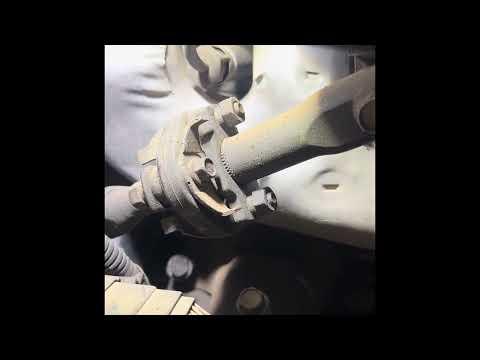

Step 5: Replace the left engine mount (driver side)

• Repeat the same process on the left side using the socket set 10mm-21mm, extensions, universal joint, and breaker bar as needed.
• Use the floor jack to adjust engine height until bolts start by hand easily.
• Final-tighten with the torque wrench.
• Torque to 50 Nm (37 ft-lbs) for mount-to-engine bracket bolts (common spec).
• Torque to 75 Nm (55 ft-lbs) for the mount through-bolt/nut (common spec).
• Torque to 85 Nm (63 ft-lbs) for mount-to-frame fasteners (common spec).

Step 6: Reinstall shields/covers and lower the vehicle

• Reinstall any splash shields/air deflectors using the trim clip remover and flathead screwdriver.
• Remove the engine support load by slowly lowering the floor jack from under the engine.
• Use the floor jack to lift the vehicle slightly, remove the jack stands, then lower to the ground.

---

✅ After Repair

• Reconnect the battery negative terminal (if removed) using a 10mm socket.
• Start the engine and let it idle; watch for excessive movement and listen for clunks.
• With your foot on the brake, shift from Park to Reverse to Drive and listen for abnormal knocks.
• Take a short test drive and recheck for new noises on acceleration and braking.
• After the drive, visually recheck mount areas for shifted hardware and re-torque if required by your hardware kit instructions.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,400 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $520-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
