🔧 Taillight Bulbs - Bulb Replacement

Your Camry’s rear lamp housings use serviceable bulbs only on the bulb-equipped versions. If your lamps are LED-sealed units, the bulb is not separately replaceable and the full lamp assembly must be replaced instead.

Difficulty Level: Beginner | Estimated Time: 0.5-1 hour

---

⚠️ Safety & Precautions

• Turn the ignition off and keep the key fob away from the vehicle.
• Let the rear lamps cool before touching them; bulbs can be hot.
• Use gloves when handling new halogen bulbs. Skin oil can shorten bulb life.
• Do not touch LED boards or sealed lamp internals.
• No battery disconnect is required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch ratchet
• Short extension
• Phillips screwdriver
• Trim panel tool
• Gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Rear taillight bulb - Qty: 2
• Bulb socket seal or gasket - Qty: 2

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the trunk and remove loose cargo from the side areas.
• Make sure the lamps are switched off.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the rear lamp fasteners

• Open the trunk.
• Use a trim panel tool to carefully pull back the side trunk trim near the taillight you are servicing.
• If equipped with a small access cover, remove it by hand or with the trim panel tool.

Step 2: Remove the taillight housing

• Use a 10mm socket, 1/4-inch ratchet, and short extension to remove the taillight mounting nuts.
• Pull the lamp straight rearward to release the locating pins.
• Pull evenly to avoid cracking the lens.

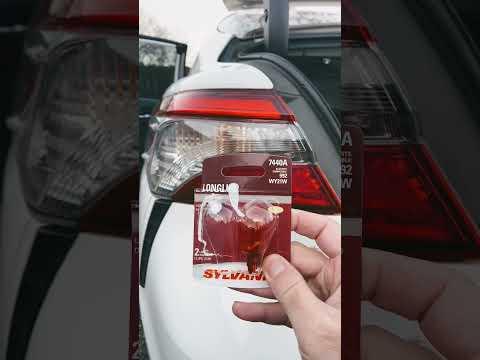

Step 3: Replace the bulb

• Twist the bulb socket counterclockwise by hand and remove it from the lamp housing.
• Remove the bulb from the socket.
• Install the new bulb into the socket.
• Reinstall the socket and twist it clockwise until locked.

Step 4: Reinstall the lamp assembly

• Align the locating pins with the body openings.
• Push the lamp straight into place.
• Use the 10mm socket, 1/4-inch ratchet, and short extension to reinstall the mounting nuts.
• Torque to 5 N·m (44 in-lbs).
• Reinstall the trunk trim and access cover.

Step 5: Test the lights

• Turn on the parking lights, brake lights, and turn signals.
• Verify both sides work correctly.
• Check that the lamp sits flush with the body.

---

✅ After Repair

• Walk around the vehicle and confirm both rear lamps function properly.
• Check for warning lights on the dash.
• If a bulb does not work, recheck the socket lock and bulb seating.

---

💰 DIY vs Shop Cost

Shop Cost: $120-$280 (parts + labor)

DIY Cost: $20-$60 (parts only)

You Save: $100-$220 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1 hour.

---
